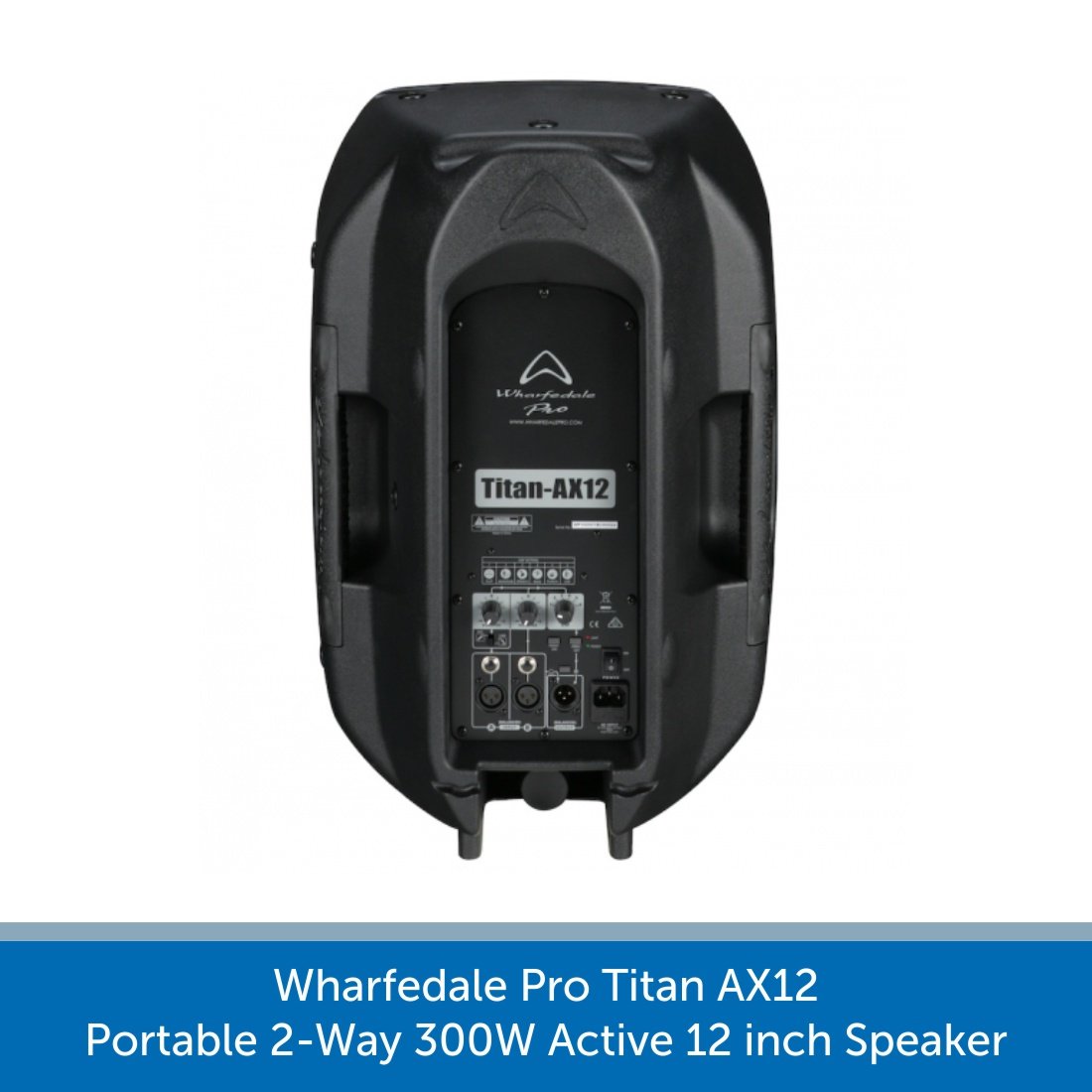

Wharfedale Pro Titan AX12 – Portable 2-Way 300W Active 12 inch PA Speaker

DETAILS

The Wharfedale Titan AX12 is a portable, lightweight and durable active loudspeaker perfect for use as a main PA speaker, in arrays, or as a monitor.

The 12″ powered PA speaker features a Class-D bi-amplified design that delivers 300W RMS / 600W Peak Power and with 128dB Max SPL, is an ideal solution for small to medium-sized venues.

The AX12 features a cutting-edge 6-position DSP engine and all-new HF and LF drivers that provide versatile control that cannot be seen on alternative loudspeakers.

For added peace of mind, Wharfedale offers a 3 YEAR WARRANTY on this product.

Key Features

• 300 watts programme / 600 watts peak
• New HF Drivers have been honed acoustically for high-frequency detail and power
• New 2.5″ voice coil LF Drivers reject moisture for resistance in all environments
• New Proprietary 100° x 80° Hybrid Symmetry Horn design
• New category leading DSP functions
• 128dB Max SPL
• Available in black or white
• New tweaked laminar rib structure
• Integral mixer functions
• Class D Bi-amplified
• Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
• 10 x M8 rigging points and integral tripod stand adapter
• Rugged protective grille and top-stacking receptacles
• Trapezoid design for arrays as well as stage monitor applications
• Titan Tourbags available

SPECS & DOWNLOADS

Wharfedale Titan AX12 Specifications

• System Type: Active 12” 2-way, bi-amplified

  Frequency Range: 50Hz – 20kHz (-10dB)

  Frequency Response: 55Hz – 20kHz (+/-3dB)

  Calculated Maximum SPL: 128dB at 1m

  LF Transducer:

  • Size: 12” / 305mm
  • Coil Size: 2.5” / 64.26mm

  HF Transducer:

  • Type: Compression driver
  • Coil Size: 1.75” / 44mm
  • Exit Size: 1” / 25mm
  • Diaphragm Material: Titanium
  • Nominal Coverage: Hybrid Symmetry Horn, 100° x 80° (H x V)

  Amplifier:

  • LF Wattage: 250W(RMS)/500W(Peak), Class-D
  • HF Wattage: 50W(RMS)/100W(Peak), Class-D

  DSP: Advanced user-selectable presets

  • Flat
  • Monitor
  • Speech
  • Bass
  • Punch
  • Live

  Hi-Pass Switch: 90Hz

  Amplifier Protection: Yes

  Thermal Protection: Yes

  Low-Line Voltage Shut Down: 60-percent nominal line voltage

  Driver Protection: Independent LF and HF limiters

  DC Protection: Yes

  Short Protection: Yes

  Clip Limiter: Turns on at approximately 250W output

  Limiter Indicator: Red LED

  Power Indicator: Green LED

  Input Type: Switchable balanced mic or line level (Chan 1)

  Input Connectors:

  • 2 x XLR
  • 2 x 1/4” jack

  Line Output Connector: Switchable LOOP/MIX balanced female XLR

  Enclosure:

  • Material: Injection-moulded polypropylene
  • Colour: Black
  • Grille: 1.2mm steel

  Hardware:

  • 10 x M8 threaded inserts, including 4 x M8 threaded inserts on bottom in OmniMount 30.0-type footprint
  • 35mm pole receptacle with lock screw
  • 2 x carry-handles (one on each side)

  Power Supply: SMPS

  AC Power: AC100-120V/220-240V, 50/60Hz

  Dimensions: 582.7mm x 384.6mm x 318.6mm / 22.9” x 15.1” x 12.5” (H x W x D)

  Weight: 12.4kg / 27.28lbs

Wharfedale Titan AX12 – PDF Downloads

Download the User Manual Here
