W-Audio DTM 10-Way Wireless UHF Handheld Microphone System V2 (CH38/70)
DETAILS
W Audio DTM 10-Way Wireless UHF Handheld Microphone System – Mixed CH38/CH70 for Versatile Live Applications.
The W Audio DTM 10-Way Wireless Handheld Microphone System is a flexible UHF solution ideal for schools, theatres, places of worship, and multi-speaker events.
This bundle includes a total of 10 handheld microphones across five dual-channel receivers, operating on a combination of 8 channels on UHF Channel 38 (606.0–614.0MHz) and 2 channels on Channel 70 (863.0–865.0MHz). This frequency split makes the system particularly useful for venues needing to accommodate more microphones while remaining compliant with UK wireless regulations.
Each receiver supports two transmitters simultaneously and features 300 selectable frequencies, automatic channel scanning, and infrared synchronisation for easy setup. The robust handheld transmitters include LCD displays for real-time information such as frequency, channel, and signal strength, allowing for confident operation in busy live environments.
The microphones are suitable for live stage performances, public speaking, and group presentations where reliable wireless flexibility is essential. The system is also compatible with the W Audio Diversity range of headset and lapel transmitters (available separately), giving users future flexibility to adapt the system to different types of performances or venues.
W-Audio DTM 10-Way Mic System Key Features:
- 10-way microphone system comprising 5 dual-channel UHF receivers
- 8 channels operate on CH38 (606.0–614.0MHz), 2 channels on CH70 (863.0–865.0MHz)
- 300 preset UHF frequencies per CH38 channel for flexible and interference-free setup
- Auto frequency scan and IR sync for quick pairing between transmitters and receivers

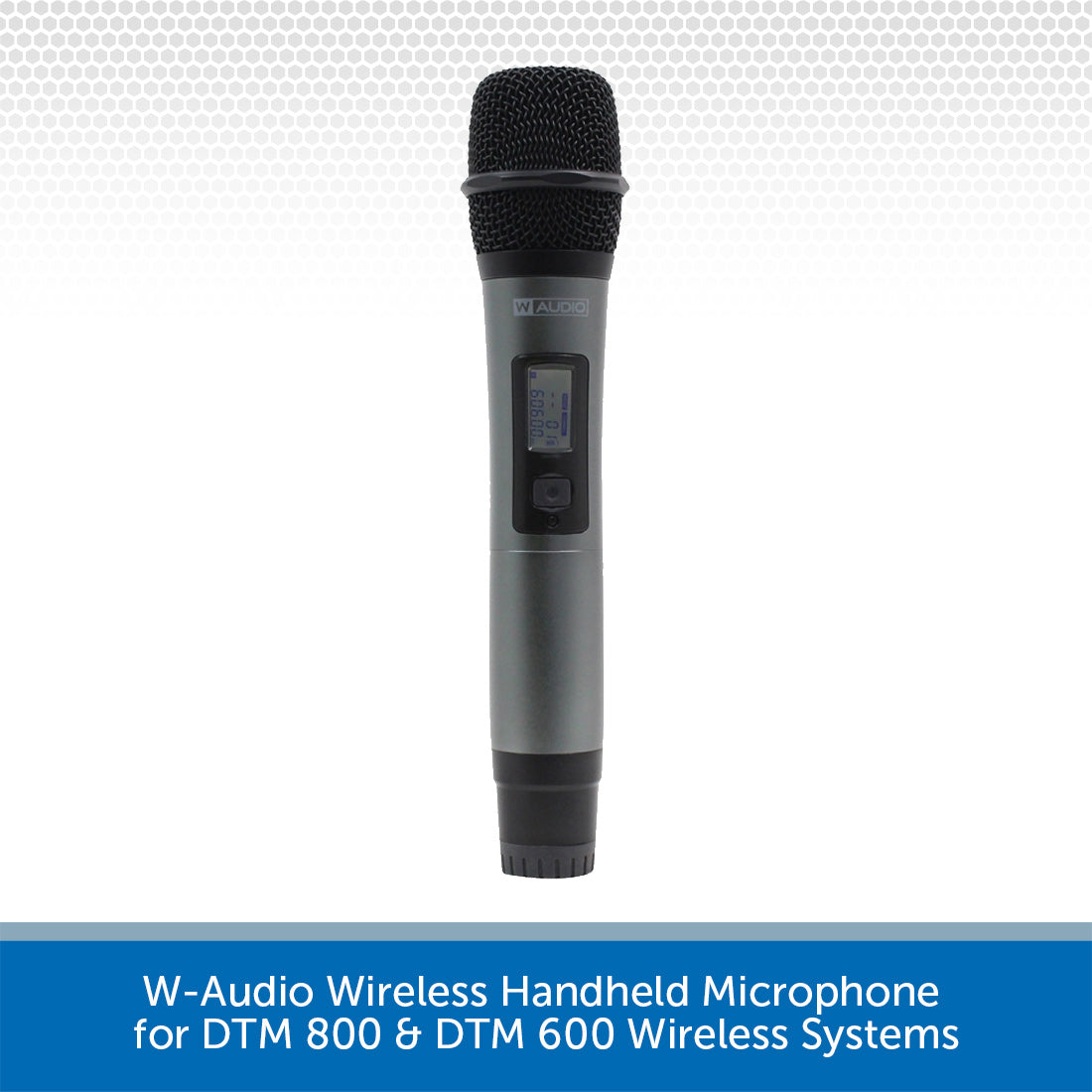

- Includes 10 wireless handheld microphones with LCD status screens
- Compatible with W Audio Diversity headset/lavalier systems (sold separately)
- Ideal for schools, churches, conferences, and performance venues
- Rack-mountable receiver design with clear front-panel controls
- LCD displays on transmitters and receivers (showing RF level, AF level, frequency, and channel)

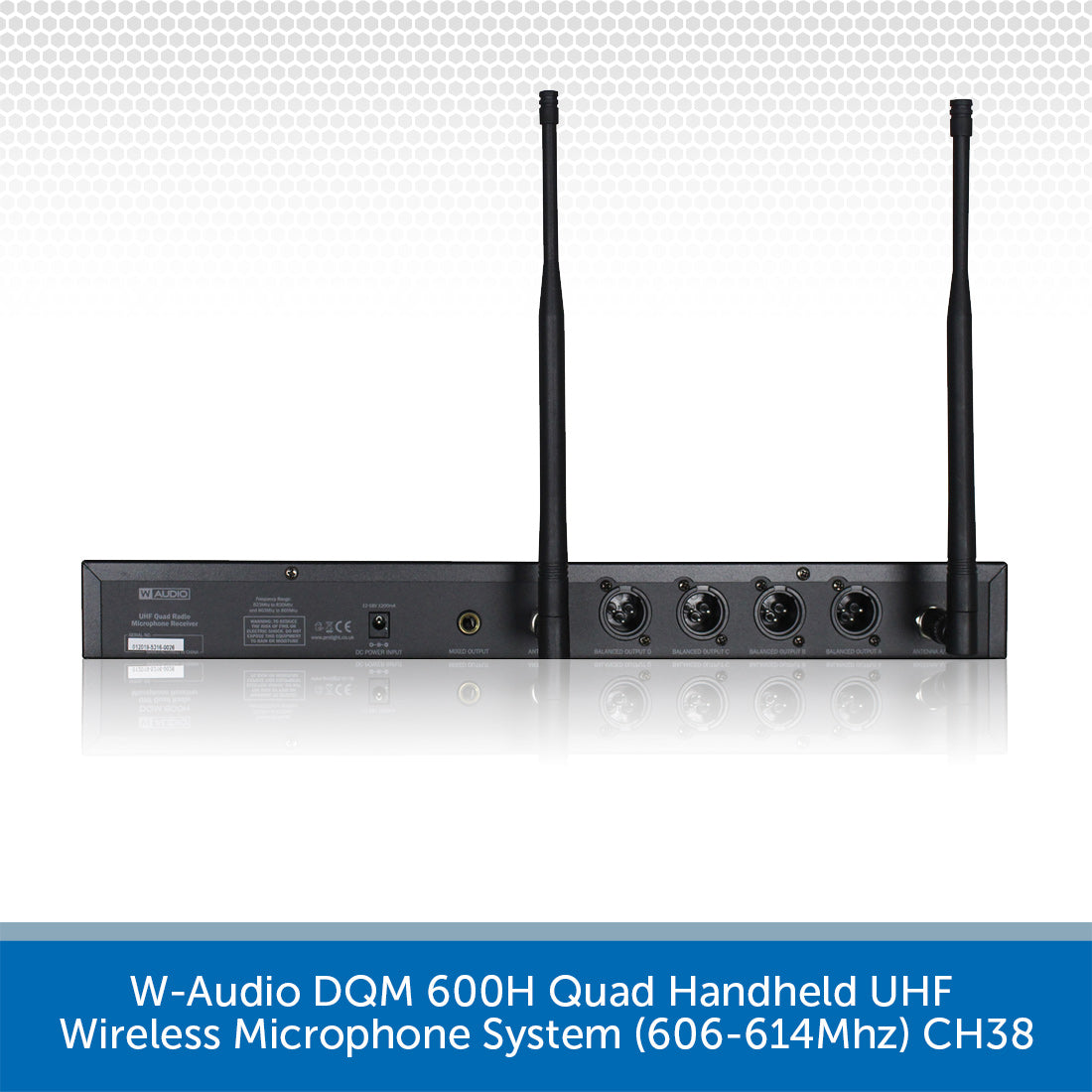

- Balanced XLR outputs per channel, plus unbalanced mixed output
- Phase Locked Loop (PLL) circuitry for stable, high-quality signal transmission
What’s Included:
- 4 x DTM 600H UHF Receivers (CH38)
- 1 x DTM 800H UHF Receiver (CH70)
- 10 x Wireless Handheld Microphones
- 5 x Power Supplies
- 5 x ¼” Jack to Jack Connecting Cables
- User Manuals
SPECS & DOWNLOADS
Download the User Manual HERE >
W-Audio DTM 600H Specifications
-
Frequency response: (handheld): 40Hz-15kHz
- Transmitter battery configuration: 2 x 1.5V AA (not supplied)
- Audio output level: 400mV
- Rack Mount: Included
- Dynamic range: 96dB
- Receiver power supply: 12V DC (mains adaptor supplied)
- Software Version: 2
W-Audio DTM 800H Specifications
-
Frequency response: (handheld): 40Hz-15kHz
- Audio output level: 400mV
- Rack Mount: Included
- Dynamic range: 96dB
- Receiver power supply: 12V DC (mains adaptor supplied)
- Software Version: 2
