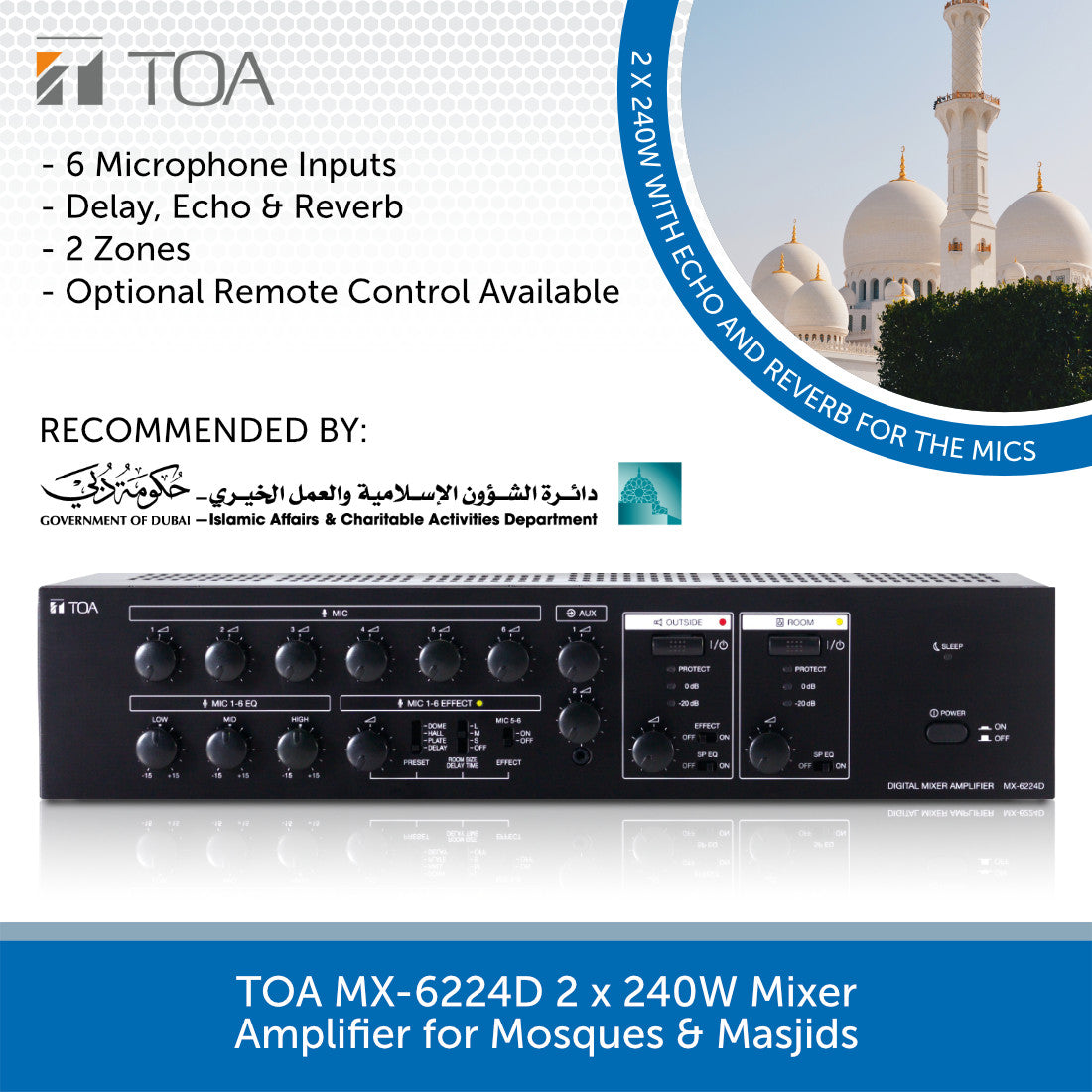

TOA MX-6224D 2 x 240W Mixer Amplifier for Mosques & Masjids
Please note: This is an order-on-demand product. When your order is placed, we will place an order with our supplier and dispatch the item to you as soon as it arrives with us. The lead time may vary so please contact us for further information.
DETAILS
The TOA MX-6224D is designed specifically for mosques and masjids, providing an ideal solution for prayer, worship, and music playback. With a power output of 2x 240W, this all-in-one system seamlessly integrates a built-in mixer with advanced DSP and a range of effects like echo, delay, and reverb.
There are 6 microphone inputs each with their own volume control, with +48V phantom power on mic input 1. There are also two AUX inputs for connecting a phone, mixer or another device for music playback.
In order to dial in the best sound, there is a 3-band EQ to adjust the bass, mid and treble.
The MX-6224D can be rack mounted with additional rack ears (sold separately).

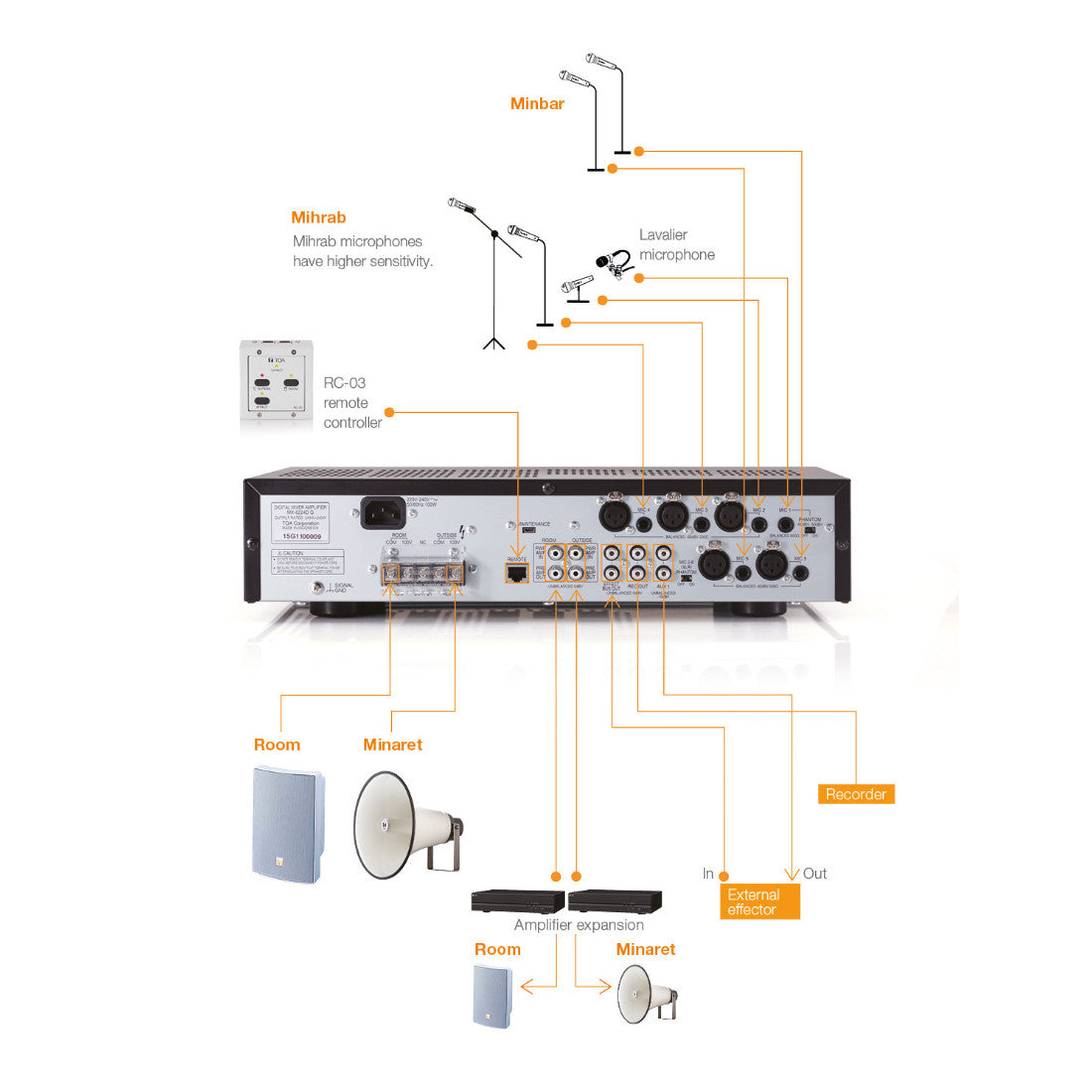

There is also an additional CAT5 remote wall plate available (RC-03) that controls the sound effect and can turn zones on and off.
Optimised microphone sensitivity
Microphone sensitivity corresponds to the distance between the microphone and the imam.
Pre-programmed sound effects
The MX-6224D includes various effects for the microphone inputs, such as echo, delay and reverb.
Easy operation
TOA has created the MX-6224D specifically to cater for medium and small houses of worship. It’s very easy to use and requires very little technical knowledge to operate.
Please note: This is an order-on-demand product. When your order is placed, we will place an order with our supplier and dispatch the item to you as soon as it arrives with us. The lead time may vary so please contact us for further information.
SPECS & DOWNLOADS
- Power Source: 220 V – 240 V AC, 50/60 Hz
- Power Output: 240 W x 2 channels (100 V, 42 Ω, rated output)
- Power Consumption: 150 W (according to IEC60065), 650 W (at rated output, both channels)
- Amplification System: Class D, Output transformerless galvanic isolated output
- Frequency Response: 50 Hz – 20 kHz, +-3 dB (at 1/3 rated output, rated load, from power amplifier input)
- Distortion: Less than 1 % THD (at 1 kHz, 1/3 rated output power)
- Output Regulation: Less than 2 dB no load to full load (at 1 kHz, 1/3 rated output power)
Input:
- MIC 1: –50 dB* (24 V phantom powered)/ –60 dB* (phantom power OFF) 600 Ω, electronically-balanced, ø6.3 mm phone jack
- MIC 2 – 4: –66 dB*, 200 Ω, electronically-balanced, XLR-3-31 type and ø6.3 mm phone jack (either one usable)
- MIC 5 – 6: –60 dB*, 600 Ω, electronically-balanced, XLR-3-31 type and ø6.3 mm phone jack (either one usable)
- AUX 1: –10 dB*, 10 kΩ mixed monaural, unbalanced, RCA pin jacks (1 pair)
- AUX 2: –20 dB*, 10 kΩ mixed monaural, unbalanced, ø3.5 mm mini jack (3P: stereo)
- Power amplifier input: 0 dB*, 10 kΩ, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)
Output:
- Speaker output: 2 zones, 100 V (42 Ω), galvanic isolated balanced, M4 screw terminal
- Recording output: 0 dB*, 600 Ω monaural, unbalanced, RCA pin jacks (1 pair)
- Effect bus output: 0 dB*, 600 Ω monaural, unbalanced, RCA pin jacks (1 pair)
- Preamplifier output: 0 dB*, 600 Ω monaural, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)
- Phantom Power: ON/OFF switchable for MIC 1 and XLR-3-31 type connectors of MIC 2 – 6
- Signal to Noise Ratio: 60 dB or less (All volume controls: min.)
Controls:
- 6 Microphone volume controls
- 2 AUX volume controls
- 1 ROOM output switch
- 1 ROOM volume control
- 1 OUTSIDE output switch
- 1 OUTSIDE volume control
- 1 Effect control (0 to 100 %) of Effect bus
- 1 Effect preset type selection switch (DOME/HALL/DELAY/PLATE)
- 1 Effect Room size/Delay time selection switch (OFF/small/middle/large)
- 1 Effect output selection switch (ROOM/ROOM+OUTSIDE)
- 1 MIC 5 – 6 effect switch
- 1 Low EQ control (±15 dB, 80 Hz) for MIC 1 – 6
- 1 Mid EQ control (±15 dB, 2.5 kHz) for MIC 1 – 6
- 1 High EQ
Download the datasheet here
Download the user manual here
