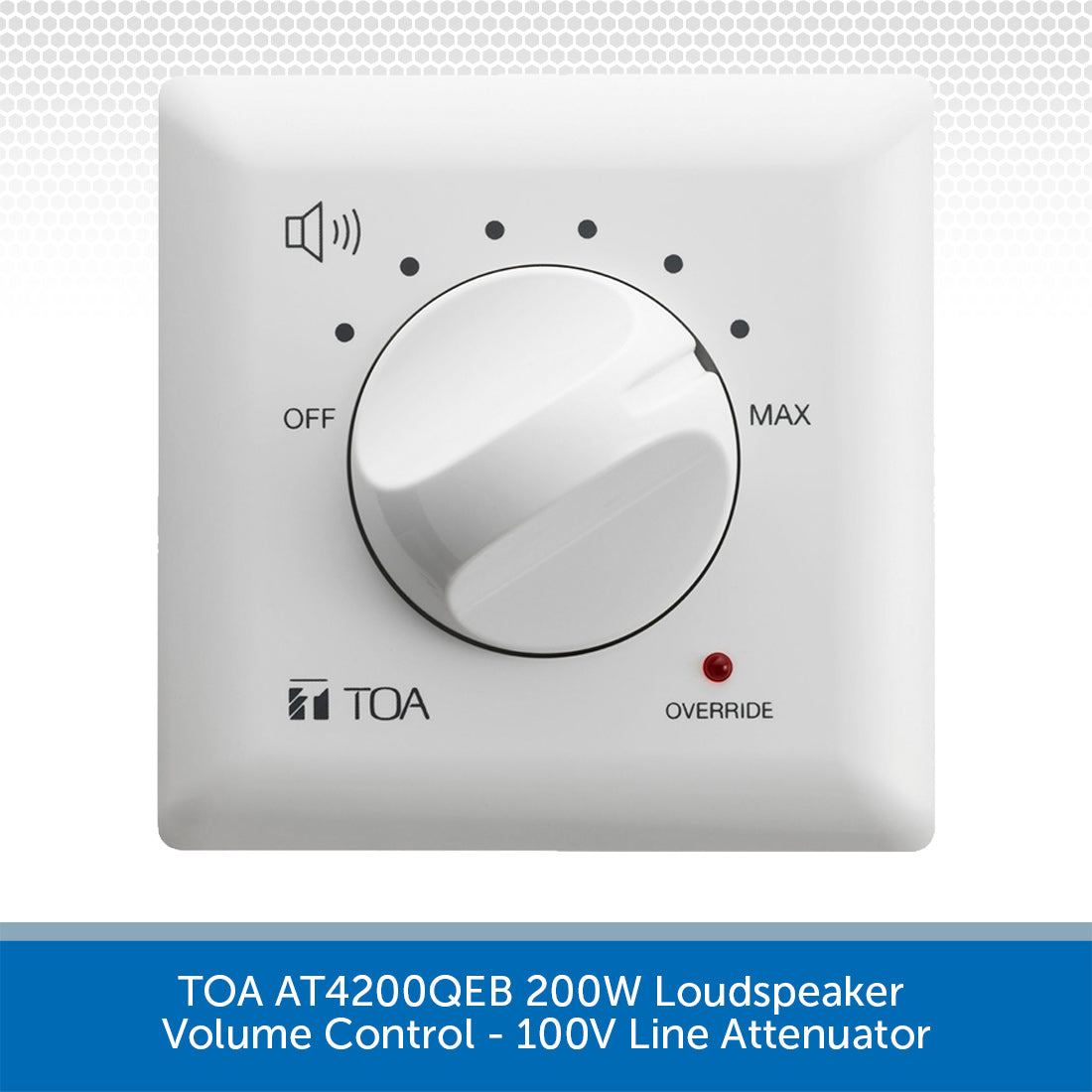

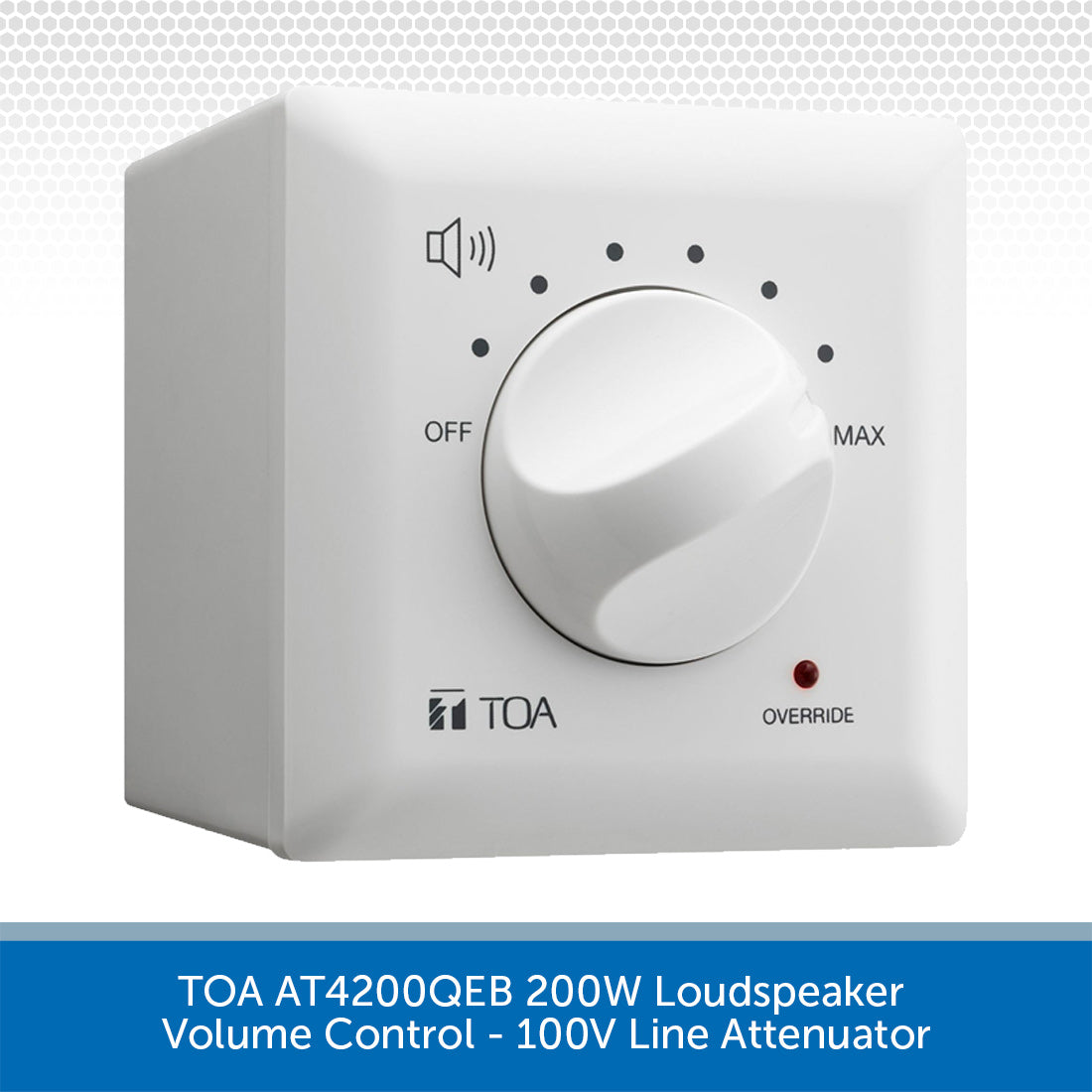

TOA 200W Loudspeaker Volume Control – 100V Line Attenuator (AT4200QEB)
DETAILS
This 200W attenuator from TOA allows you to control the volume of one or multiple 100V Line speakers.
The control simply sits inline between the amplifier and 100V speakers and acts as a remote volume control.
Housed in a stylish and robust housing that sits flush mount to the wall ideal for environments that need a low-profile, unobtrusive solution.
Consisting of 8-step attenuation, the TOA AT4200QEB is built to provide precision volume control with a difference of 3 dB in every step.
The built-in overriding relay feature allows emergency paging which is indicated by the LED light when activated.

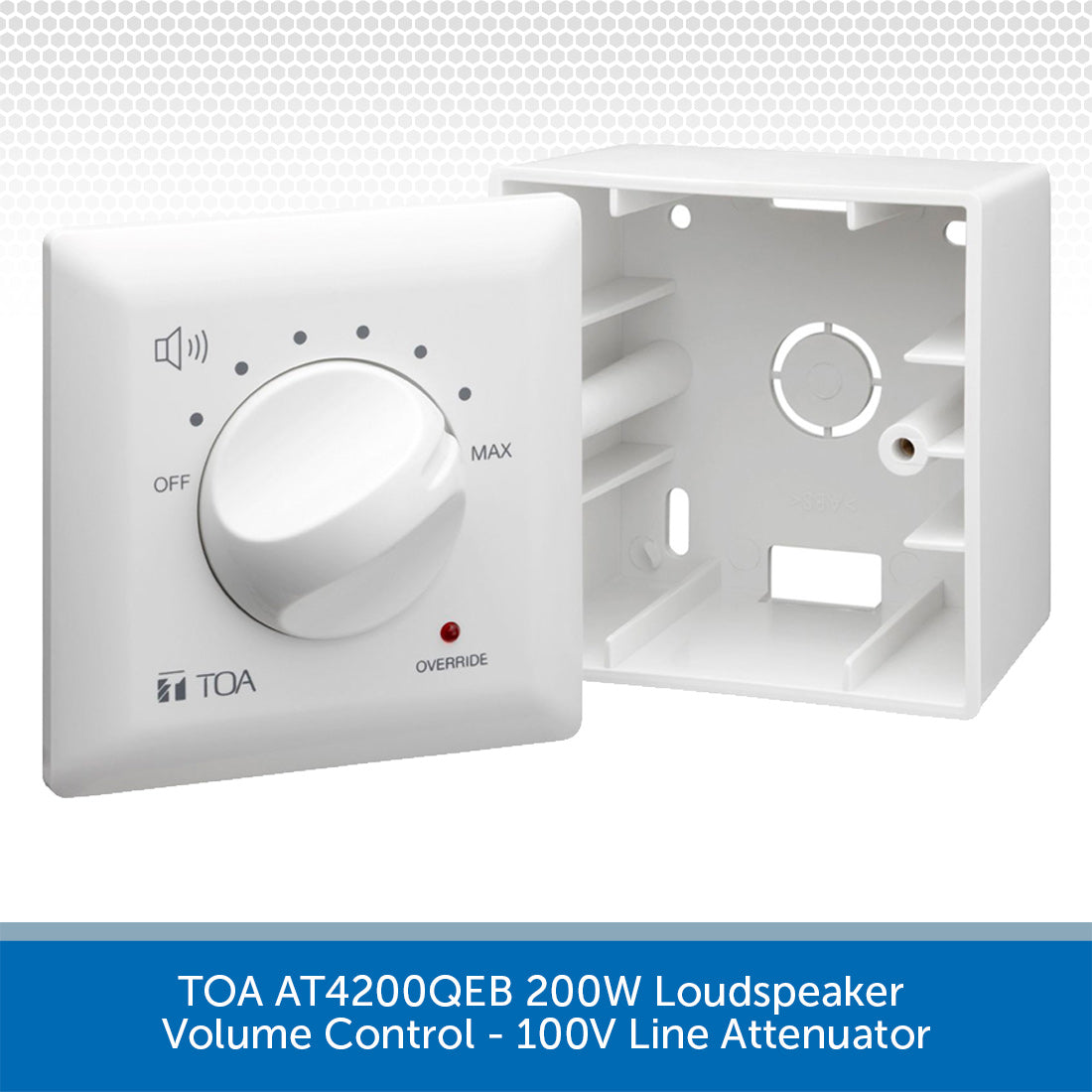

Supplied with standard UK back box.
TOA AT4200QEB Key Features:
- Attenuators with 8 step attenuation control (+/- 3 dB)
- Ergonomic control knob with better grip for easy turn
- 24 VDC overriding relay with red LED indicator
- Terminal block for thicker diameter cable
- Clip-on face plate
- 200 W
Wiring Instructions
From Amp – Positive (+) into HOT IN, Negative (-) into COM.
To Speaker – Positive (+) into SP, Negative (-) into COM.
SPECS & DOWNLOADS
TOA AT4200QEB Volume Control Specifications
- Input Capacity: 200 watt
- Attenuation: 8 Steps ( 0dB, -3dB, -9dB, -12dB, -15dB, -18dB, OFF )
- Colour: White (RAL 9016 or equivalent)
- Finish: Knob, Cover Panel: ABS Resin, White (RAL 9016 or equivalent)
- Finish: Front Panel (Plate): Surface treated steel plate
- Terminal: Screw type x 5 (Terminal)
- Usable Cable: Cable range 22 – 14 AWG
- Accessories: Black Box 85.5 (W) x 85.5 (H) x 60 (D) mm
- Dimensions: 86 (W) x 86 (H) x 51 (D) mm
- Weight: 0.49 kg
