Systemline E50 – Bluetooth In-Ceiling Speaker System with In-Wall Gesture Control Amplifier
DETAILS
The Systemline E50 is an elegant, splash-proof, built-in music system featuring Bluetooth and TV/AUX sound connectivity – providing seamless wireless audio streaming in your home.
Add the WOW factor to your home with a Systemline E50 system. A easy to install in-wall amplifier & in-ceiling speaker system.
This complete Bluetooth music system features the Systemline E50 In-Wall Amplifier in Black or White and a choice of 2 or 4 premium, mid-range or cost-effective in-ceiling speakers.
This all-in-one Bluetooth music system is one of the first on the market to feature both touch-sensitive control as well as uniquely contactless gesture control operation. This is particularly useful in locations such as kitchens, bathrooms and beauty rooms where contactless control is ideal.
The Systemline E50 features a sleek black or white wall mounting panel that sits proudly into any kitchen, from small country styles to high-end newly renovated gloss kitchens.
SPEAKER OPTIONS: Choose from Standard, Mid-Range and Premium In-ceiling Speakers
Select a in-ceiling speaker package to suit your projects budget. All 3 options are sure to fill your living space with crystal-clear audio.
Premium HiFi Speakers -Audiokraft PCS-60 (60W rms)
- Slimline magnetic grille
- Frameless, simple, unobtrusive design
- 60W, Low Z (8ohm)
- Fast-fix solution (dogleg design)
- 6 inch 2-way co-axial speaker system
- Front accessible environment EQ
- Titanium dome tweeter
- Kevlar woven driver
- Quick & easy to install

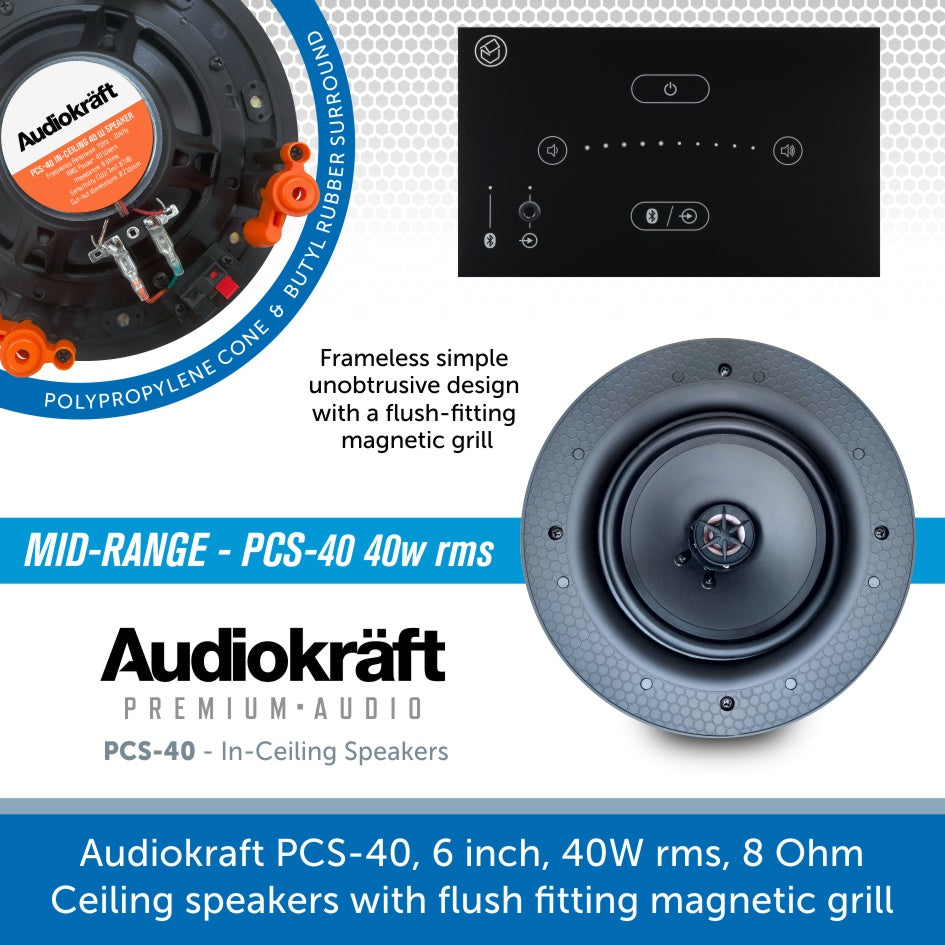

Mid-Range Speakers – Audiokraft PCS-40 (40W rms)
- 6 inch 2-way coaxial – 40W Speaker
- Polypropylene Cone
- Butyl Rubber Surround
- Quality Metal Construction
- Extremely Fast Fitting Design
- Easy Fit Magnetic Front Grille

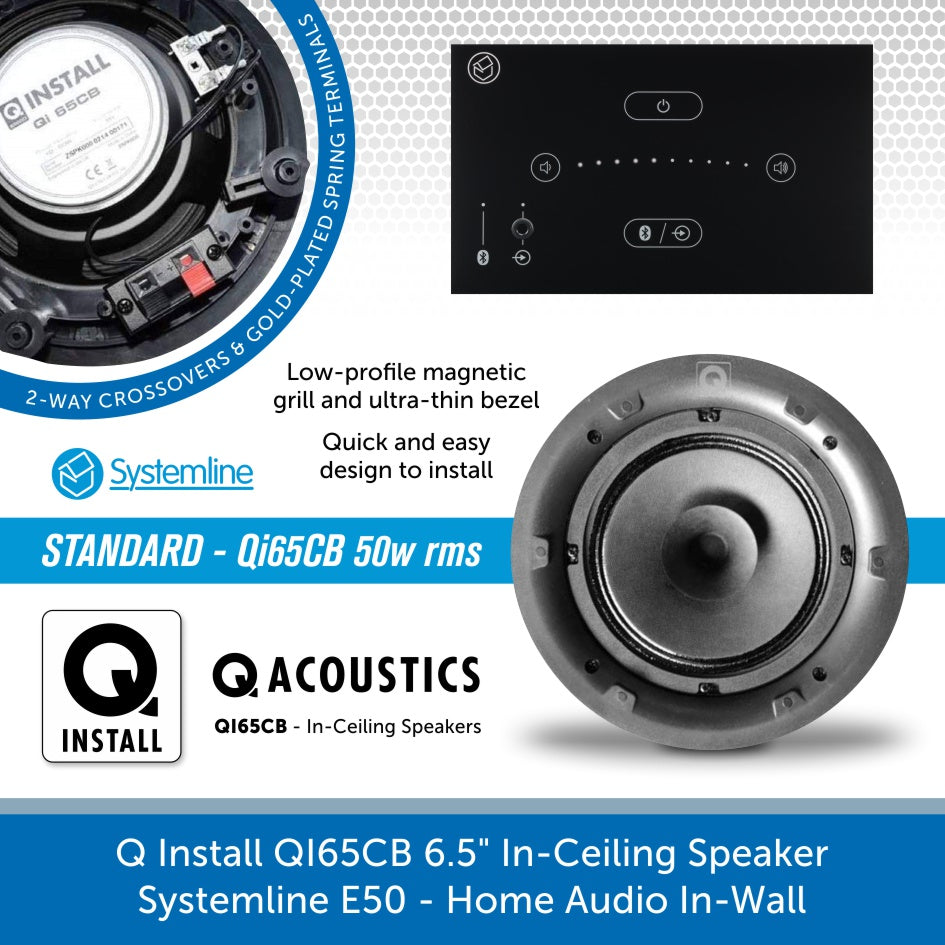

Standard Speakers – Q Install Qi65CB (50W rms)
- Suited to low to medium level music applications
- Designed for dry environments
- Low-profile magnetic grill and ultra-thin bezel
- Quick and easy to install
- Made from ‘UL94’ flame retardant materials
Key Features of the Systemline E50
Bluetooth Connectivity – Stream audio wirelessly from smart devices
Amazon Alexa compatible – Control the system with your voice!
Touch screen and contactless gesture control
Superb sound quality – Delivers a real stereo sound
TV sound connection
EQ switch – Real control over the EQ to suit all room types
Easy to install – Supplied with instructions / no clutter / wipe clean
Energy conservation – Auto switch-off after period of inactivity
What music can I play?
The Systemline E50 enables you to stream music from virtually any device without any cables needed!
Wirelessly stream music from your smartphone or tablet using the built-in Bluetooth receiver. Simply sync your device and you are ready to play your favourite tracks from apps such as Spotify, Deezer, Youtube, and more!
Not only this, the Systemline E50 is also Amazon Alexa ready! Either wireless pair your Alexa using Bluetooth, or connect it directly to the AUX input
The E50 also features an AUX connection on the front panel that enables you to connect an external media device such as a TV, CD Player, Radio, or PC/Laptop, etc.
What’s Included with the Systemline E50?
- Systemline E50 Amplifier Keypad with Gesture Control (Black or White)
- Add 2 or 4 x In-Ceiling Speakers (choose Standard, Mid-rage or Premium Speakers)
- 14 Metres of Speaker Cable with the E50 & 2 Speaker Kits (Additional 20m cable with 4 speaker kits = 34 Metres in total)
- Power Supply (5M)
- 47mm 2 Gang Dry Lining Back Box
Q Acoustics – PDF Brochure Download HERE>
SPECS & DOWNLOADS
Q Acoustics – PDF Brochure Download HERE>
Systemline E50 In-Wall Amplifier
Bluetooth:
- Class 2 Bluetooth 2.1
- aptX for CD-quality transmission
- Secure pairing system
- Selectable device name to allow multiple units to be used in close proximity
- Range up to 10m
Inputs:
- Front & Rear Line In 3.5mm Stereo Jack (Audio In), DC Jack (18V DC In)
Power Output:
- 2 x 18W into 8 Ohms @ 0.5% THD 1kHz
Frequency Response:
- 20Hz – 20kHz +/- 1dB
Power Supply:
- 110-240 VAC
Dimensions:
- Height – 91mm
- Width – 151mm
- Depth (Plate only) – 10.50mm
- Depth (inc. Amp) – 45mm
Q Install QI65CB Ceiling Speakers (Standard Speakers)
- Tweeter: Swivel
- Tweeter diameter: 0.75″ (19mm)
- Woofer diameter: 6.5″
- Power handling (program): 15-60W
- Impedance (nominal) ohms: 8ohm
- Sensitivity dB spl (2.83V, 1m): 89
- Response(Low freq.) -3dB Hz: 75
- Maximum rear depth: 79mm
- Size(Round grilles): 232mm dia
- Cut-Out Size: 203mm
AudioKraft PCS-40 Ceiling Speakers (Mid-Range Speakers)
- Power Output: 40W rms
- Impedance: 8 Ohms
- Frequency Response: 70Hz~20Khz
- Efficiency: 87dB
- Dimensions: 227(Ø) x 60(D)mm
- Cut Out Size: 210 (Ø) mm
AudioKraft PCS-60 Ceiling Speakers (Premium Speakers)
- Nominal Impedance: 8Ω
- Power (RMS): 60W
- Driver: 6.5 inch
- Driver Material: Kevlar Woven Cone
- Single Tweeter: 0.75 inch
- Tweeter Material: Titanium Dome
- Frequency Response (±3db): 60 Hz-20 kHz
- Efficiency: 90dB
- Colour: White (RAL 9010)
- Dimension: Ø 227mm x 87mm
- Cut-out Size: Ø 210mm
- Weight (Net): 1.52kg
- Weight (Gross): 2.00kg
Systemline E50 – Ceiling Speaker System with built in Amplifier
E50 Installation Guide – DOWNLOAD >
E50 User Guide – DOWNLOAD >
E50 Specification Data Sheet – DOWNLOAD >
E50 4 Speaker Diagram – DOWNLOAD >
E50 How to pair with Amazon Echo Dot & Alexa – DOWNLOAD >
