Sennheiser XSW2-835 E Wireless Handheld Microphone System – CH70
DETAILS
The Sennheiser XSW2-835 E Wireless Handheld Microphone System is an easy-to-use and fantastic quality all-in-one wireless system, perfect for announcements, PA and live use.

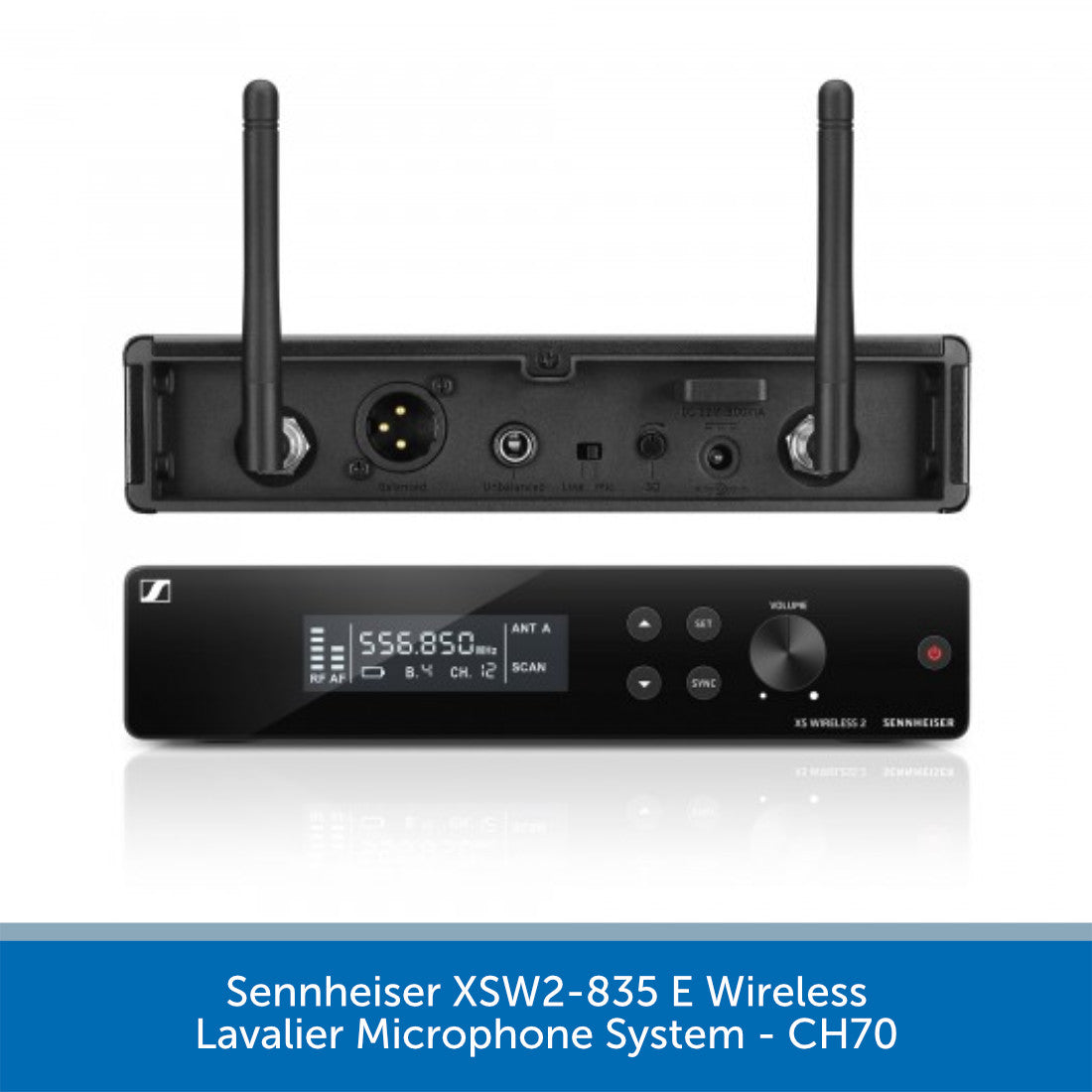

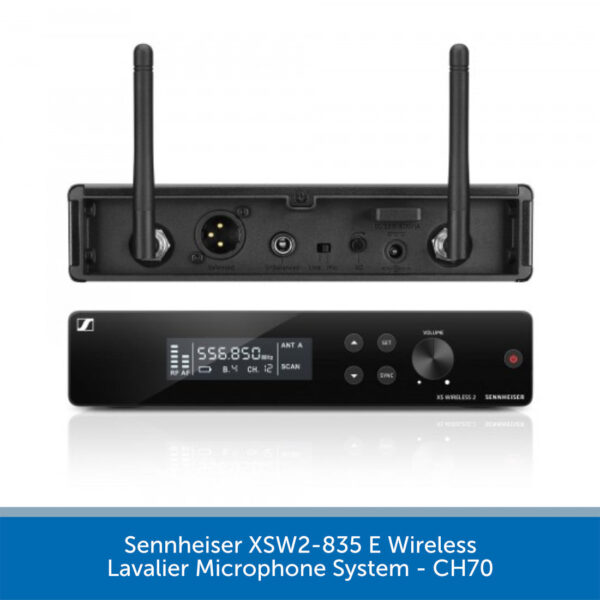

The XSW2-835 E features an LCD display that shows frequency, channel and signal information, and provides an interface for configuring the settings. Included are 12 compatible channels in a stable UHF band meaning you can connect up to 12 systems simultaneously.
The receiver has two external antennas ensuring a reliable and strong signal at all times.

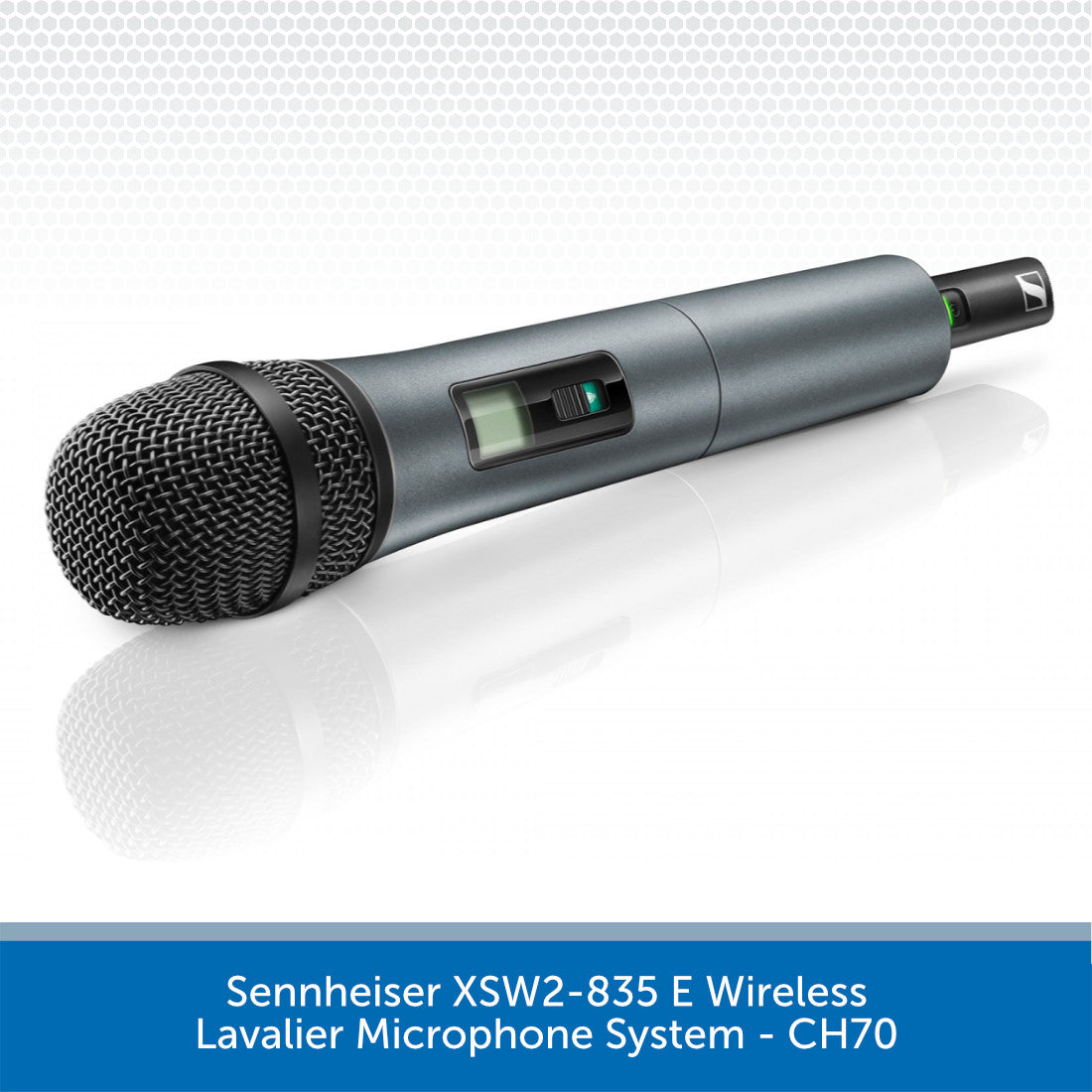

The system includes the iconic E835 microphone which offers excellent sound reproduction ensuring your announcements are clear and crisp with no distortion, even at high volumes. There is a switch to quickly turn the mic on and off when not in use. The system also includes a rackmount kit for the receiver.
Key Features:
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via
- remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
- Fan Images
See SPECIFICATION tab for technical specs
SPECS & DOWNLOADS
Sennheiser XSW2-835 E Specifications
General
- Microphone: dynamic
- Frequency response: 50 to 16,000 Hz (–3 dB)
- THD, total harmonic distortion: ≤ 0.9%
- Pick-up pattern: cardioid
- Signal-to-noise ratio: ≥ 103 dBA
- RF output power: 10 mW
- Switching bandwidth: up to 24 MHz
- Operating time: approx. 10 hrs
- Modulation: wideband FM
- Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Frequency: 8 frequency banks, each with up to 12 factory-preset channels
- Frequency range (E): 821-832 MHz, 863-865 MHz
- Sensitivity: < 3 μV at 52 dB(A)rms S/N
- Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Line: 20 dB, switchable
- Input sensitivity: 1.5 mV / Pa
- Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range: 40 dB, adjustable in 5-dB steps
- Temperature Range
- Operation: 0°C to +40°C
- Storage: –20°C to +70°C
- Receiver Principle: double superheterodyne
- Diversity principle: True Diversity
Receiver
- Dimensions: approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm
- Weight: approx. 680g
- Power supply: 12 V DC nom. / 300 mA
- Materials: Metal, microphone: robust ABS
- AF frequency response: 50 to 16,000 Hz (–3 dB)
Microphone
- Dimensions: approx. 260 x 50 mm
- Weight: approx. 245g
- Materials: robust ABS
- Power supply: 2 AA size batteries, 1.5 V
- AF frequency response: 80-14,000 Hz
