Q Install QI80RP 8″ In-Wall Speaker
DETAILS
The Q Install QI80RP offers superior performance and stylish design for home theatre enthusiasts.
The Q Install in-wall series offers a wide range of speakers designed for home theatre applications that require exceptional performance and stylish aesthetics.

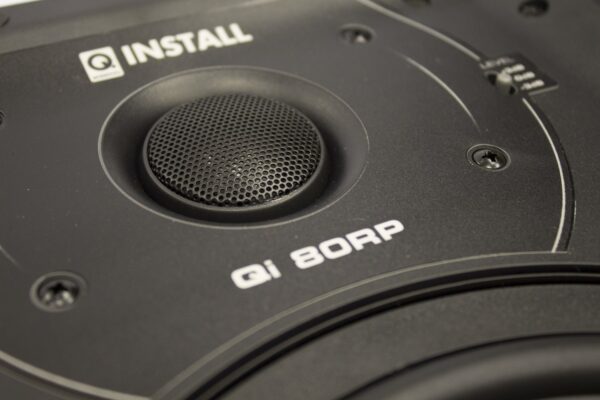

The 8″ in-wall speaker boasts Q Install’s NanoParticle mass-damped polypropylene low-frequency drive units, with low distortion and high transient power capability. The speakers have swivel-capable silk dome mesh-protected tweeters for fine-tuning and high-frequency level adjustment, with low-profile magnetic grilles for easy installation.
High-order crossovers ensure smooth frequency transitions and mid-range frequency response is carefully tuned to minimize coloration.
Installation depth is kept to a minimum, and the series offers an 8″ and 6.5″ two-way full-range unit and a D’Appolito array LCR, as well as a passive 8″ sub for additional bass extension.
Key Features:
- Q Install in-wall speakers for home theatre enthusiasts
- Stylish low-profile design
- Nano Particle polypropylene low-frequency drive units for high performance
- High-order crossovers for smooth frequency transitions
- Flexible installation with minimal depth required
SPECS & DOWNLOADS
Q Install QI80RP
- Tweeter / Tweeter diameter: Swivel / 1″ (25mm)
- Woofer diameter: 8.0″
- Power handling (program): 15 – 100W
- Impedance (nominal) ohms: 8
- Sensitivity dB spl (2.83V, 1m): 88 (switchable HF)
- Response (Low frequency) -3 dB: 60 Hz
- Max rear depth: 95 mm
- Size: Round / Square grilles: 365 mm x 263 mm
- Cutout (nominal): 335 mm x 233 mm
