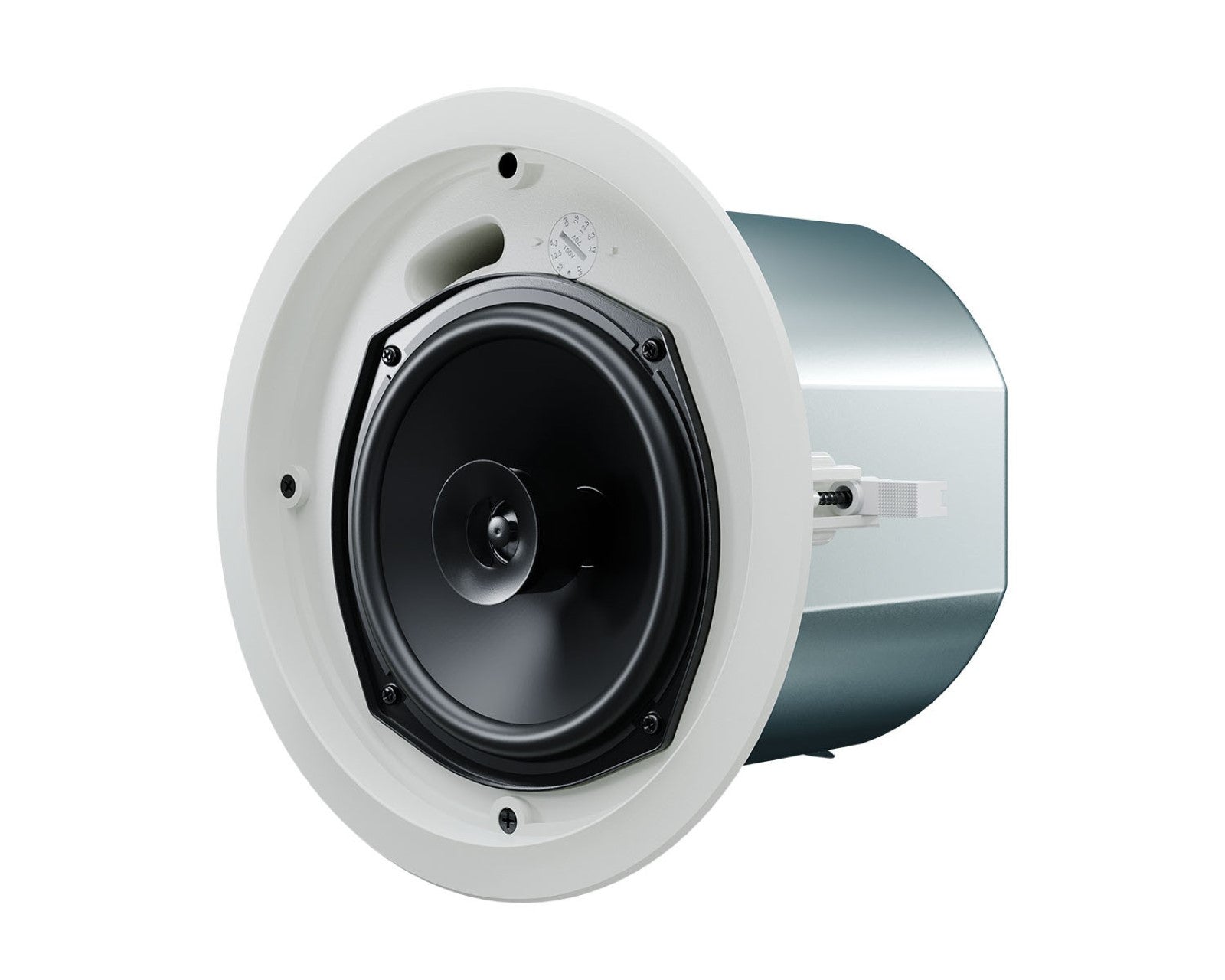

Optimal Audio UP 6 – Full-Range 6.5″ Passive Ceiling Speaker 60W
DETAILS
The UP 6 Ceiling Speaker operates at 70V, 100V and Low Impedance, delivering clear, consistent sound in commercial spaces with easy installation and versatile performance options.
The Up 6 offers a sleek and unobtrusive solution for delivering exceptional audio performance in various commercial settings. Whether it’s hotels, retail spaces, bars, or restaurants, the Up 6 ensures consistent coverage and crystal-clear sound reproduction, catering to diverse environments while mindful of cost considerations.
With its integrated fixing system, installation is a breeze, ensuring a seamless and tidy setup. Encased in a neutral white finish with a perforated steel grille, the Up 6 blends effortlessly into any decor.
Powered by a 6.5″ (162mm) driver, this speaker excels in both background music and speech projection. Its conical 110° coverage pattern ensures uniform sound dispersion throughout the designated area.
Versatility is key with the Up 6, as it can operate on a series of 70 or 100 Volt taps or at low impedance, providing flexibility in system configuration. Tap selection is conveniently managed via a rotary switch discreetly located behind the removable grille.
For optimal performance and speaker protection, pairing the Up 6 with SmartAmps or Zone systems is recommended. With the Zone series, incorporating a ZonePad and utilizing the WebApp simplifies system setup and offers intuitive control for end users, enhancing overall user experience.
Optimal Audio UP 6 Key Features:
- 6” coaxial driver
- Discreet size
- Unobtrusive design
- 16 ohm or 70/100V line operation
- Range of power taps
- Wide conical coverage pattern
- Integrated mounting hardware
SPECS & DOWNLOADS
Optimal Audio UP 6 Specifications
- TYPE: Two-way, full range, passive, ceiling speaker
- FREQUENCY RESPONSE (with preset): 115Hz – 18kHz ± 3dB / -10dB @80Hz
- DRIVERS: LF: 6.5” (162mm), Coated paper / HF: 1″ (25mm) exit / 0.7″ 920mm) metal dome
- RATED POWER: 60W (AES) 120W (Peak)
- NOMINAL IMPEDANCE: 16Ω
- SENSITIVITY (1W/1m): 90dB
- MAXIMUM SPL: 108dB (cont), 111dB (peak)
- CROSSOVER: 2.7kHz passive
- RECOMMENDED HIGH-PASS FILTER: 24dB/octave @ 80Hz
- TRANSFORMER TAPS @ 70V: 60, 30, 15, 7.5W
- TRANSFORMER TAPS @ 100V: 60, 30, 15W
- DISPERSION (-6dB): 110˚ conical
- BACK CAN: Zinc-plated Steel
- BAFFLE: ABS
- PROTECTIVE GRILLE: Perforated steel with cloth backing
- FIRE RATING: UL94-V0
- CONNECTORS: 4 Pin Euroblock with link out
- FITTINGS: C-ring support backing plate

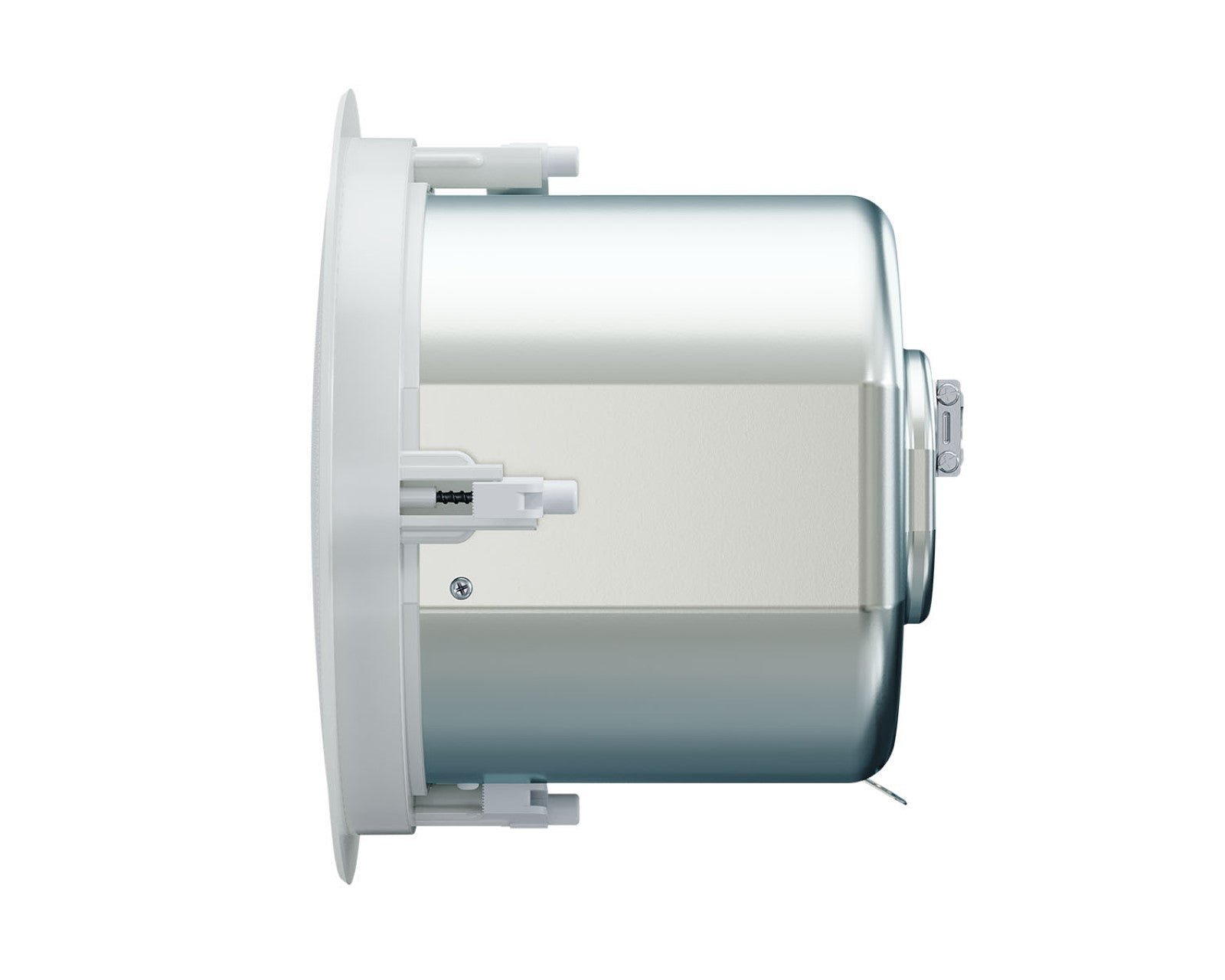

- DIMENSIONS: (Ø) 251mm x (D ) 205.1mm / (Ø) 9.88” x (D ) 8.08”
- CUT-OUT DIAMETER: 222mm (8.74”)
- WEIGHT: 3.0kg (6.6lbs)
