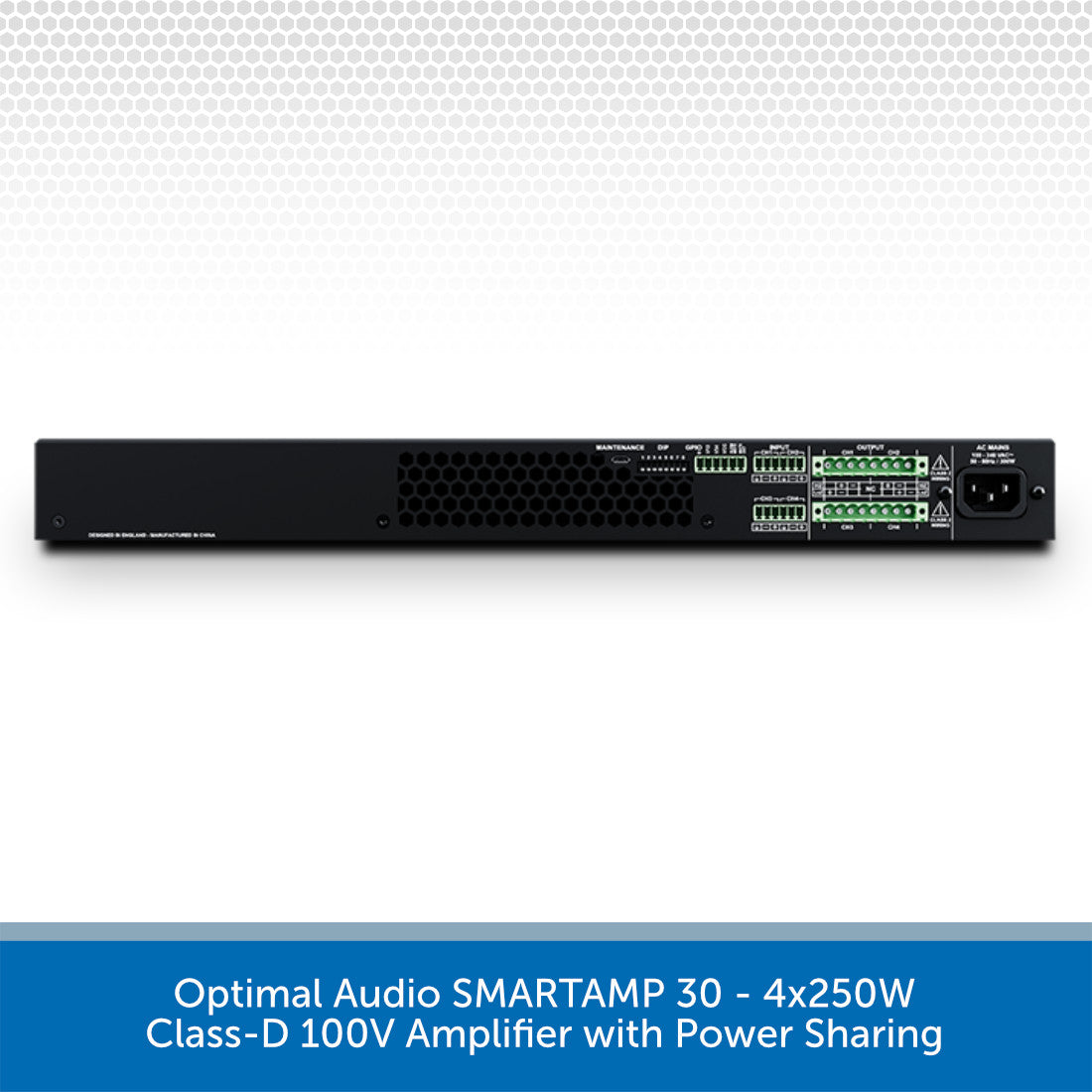

Optimal Audio SMARTAMP 30 – 4x250W 100V Amplifier with Integral DSP
DETAILS
The SmartAmp series offer power, versatility and reliability – but above all else, simplicity.
The SmartAmp perfectly embodies Optimal Audio’s core ethos of providing the highest quality, cutting-edge equipment without ever losing focus on total user-friendliness and simple operation.
While some features – such as integrated DSP presets – are specifically designed around Optimal Audio’s own range of loudspeakers, the SmartAmp series will provide absolute excellence and a comfortable experience, regardless of what speaker system you may be using.
Is the SmartAmp right for me?
The combination of impressive power and effortless control make the SmartAmp series appropriate for use in a tremendous range of commercial and domestic settings, including:
- Bars, Restaurants & Cafes
- Retail Stores
- Hotels & Wedding Venues
- Warehouses & Factories
- Fitness Studios & Gyms
- Corporate Offices
- Places of Education
- Houses of Worship
- Museums
- Residential properties
Absolute Power
The SmartAmp 30 offers four channels, each capable of driving both 70-100V Line and Low Impedance loudspeakers, with a maximum power output of 250W per channel (so 1000W total).
An important difference to note between the SmartAmp 30 and its smaller cousins (SmartAmp 10 and 20) is that, unlike these models, the SmartAmp 30 does not feature ‘Power Sharing’. However, as it offers 4 x 250W input channels, you’re unlikely to really need this anyway!
Power Saved
The SmartAmp 30 benefits from being both Class-D and ‘Energy Star’ compliant. When not in use, it enters a ‘sleep’ mode to minimise unnecessary energy consumption. When a signal above -47dBu is received, it will then wake and all functions are resumed.
In a time when energy consumption is a huge concern to all, you can be confident that the SmartAmp 30 offers the highest efficiency for the lowest wastage.
Mounting Options
The SmartAmp 30 comes with a set of rackmount ‘ears’ attached, allowing for easy installation in an equipment rack. Where the SmartAmp 10 and 20 can be fitted with optional rack kits to allow for a variety of wall, rack and under-counter mounting, the larger SmartAmp 30 is designed solely around adding to an equipment rack.
SmartAmp 30 Key Features:
- Powerful 4 x 250W amplifier with integral DSP
- Signal processing presets for Optimal Audio loudspeakers
- Universal Mains, PFC and Energy Star Compliant
- Comes with rack ‘ears’ installed for mounting in an equipment rack
SPECS & DOWNLOADS
Optimal Audio SmartAmp 30 Specifications
- TYPE: CLASS D power amplifier with DSP
- POWER OUTPUT (4Ω -16Ω): 4 x 250W
- 70V-100V OUTPUT: 4 x 250W
- DIGITAL SIGNAL PROCESSING: EQ & limiter presets for Optimal Audio loudspeakers
- COOLING: Forced air cooling with fan
- ANALOGUE IN/LINK: 4 balanced line inputs on Euroblock connectors
- ANALOGUE INPUT IMPEDANCE: 10kΩ unbalanced, 20kΩ balanced
- MAXIMUM ANALOGUE INPUT LEVEL: +24dBu
- AMPLIFIER OUTPUTS: Euroblock
- SIGNAL TO NOISE RATIO: > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load)
- FREQUENCY RESPONSE: 20 Hz – 20 kHz, +0/-0.25dB (8 Ω load, 3dB below rated power)
- TOTAL HARMONIC DISTORTION: < 0.05% (20Hz – 20kHz, 8Ω load, 3dB below rated power)
- SLEW RATE: 8.796V/µS @ 70V peak, low impedence, 17.77V/µS @ 100V peak, high impedence
- DAMPING FACTOR: 370 with 8Ω load
- CONTROL AND MONITORING: GPIO
- DSP SAMPLE RATE: 48kHz
- MAINS POWER INPUT: Universal Mains, 100-240V, 50-60Hz
- MAINS CONNECTOR: IEC
- POWER CONSUMPTION: 300W
- HEAT GENERATED: 1080 kJ per hour
- DIMENSIONS: (W) 440mm x (H) 44mm x (D) 308mm (W) 17.32” x (H) 1.73” x (D) 12.13”
- WEIGHT: 3.6kg (7.9lbs)
Optimal Audio SmartAmp 30 PDF User Manual
Download the SmartAmp 30 User Manual HERE >
