Omnitronic OD-6T 6.5″ IP65 Weatherproof Wall Speakers (Pair), 100V / 8 Ohms, Black or White
DETAILS
Omnitronic OD-6T 6.5″ IP65 Rated Weatherproof Wall Speakers designed for background music & announcements in outdoor environments.
Supplied in pairs, these outdoor wall speakers provide a smooth frequency response with a punchy bass reproduction perfect for a range of background music applications.
Thanks to an elegant, low-profile design the Omnitronic OD-6T speakers are ideal for environments that require a professional, yet unobtrusive speaker solution such as pub gardens, outdoor seating areas, cafes, garden centres & outdoor environments alike.
The Omnitronic OD-6T’s feature a durable IP65 rated plastic cabinet and rust-free metal grilles meaning they can be installed outdoors all year round.
These weatherproof loudspeakers operate on 100V Line with multiple power tappings of 4W, 8W, 16W, 32W and 8 Ohms @ 32W RMS.
The speakers are supplied with panning and tilting mounting brackets that allow for easy installation both vertically & horizontally on ceilings or walls.
Omnitronic OD-6T Wall Speakers Key Features
- 100 V PA speaker systems with an excellent sound for general applications
- 2-way system with 16.5 cm woofer (6.5″) and 2.5 cm silk dome tweeter (1″)
- Durable plastic cabinet with metal grille and cover for the connectors
- 100 V transformer with 4 power taps
- Power selector switch with 8 ohms operating position
- Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles

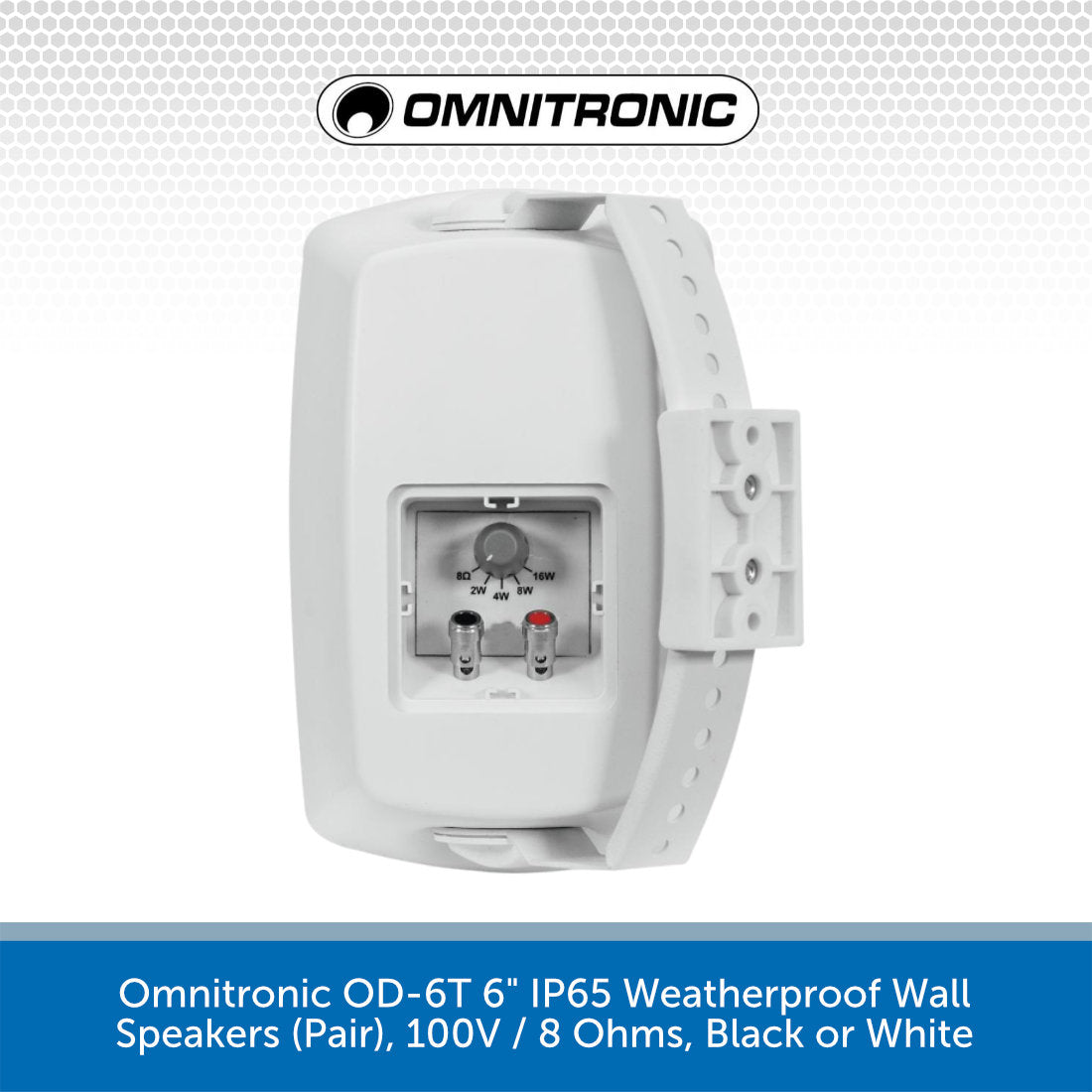

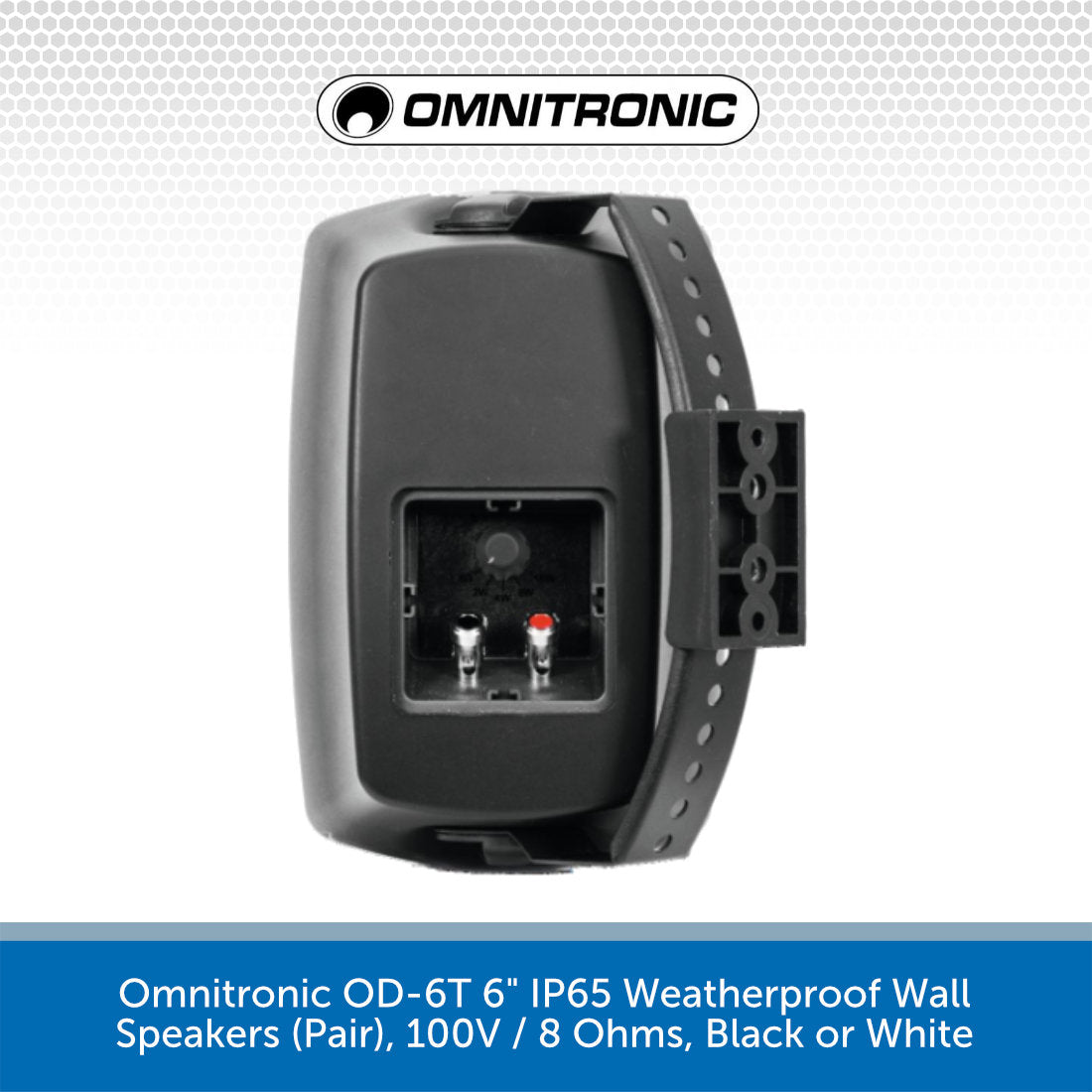

- Connection via pole terminals
- Packed as a pair
- Suitable for outdoor use
See SPECIFICATION tab for technical specs
SPECS & DOWNLOADS
Omnitronic OD-6T Wall Speakers Specifications
- Power supply: 100 V DC
- IP classification: IP65
- Rated power: 32 W RMS
- Program power: 64 W
- Frequency range: 50 – 20000 Hz
- Sensitivity: 90 dB
- Max. SPL: 93 dB
- Dispersion angle: 170° x 170°
- Impedance: 8 ohms; Public address systems 100V
- Power tapping: 4W; 8W; 16W; 32W RMS via Selector switch switchable
- Connections: Input: speakers via screw terminal
- Speakers: Horn (1″) approx. 2.5 cm, 1 x woofer (6.5″) approx. 17 cm
- Type of speaker: Compact cabinet speaker
- Dimensions: Width: 19.5 cm
- Depth: 19 cm
- Height: 29 cm
- Weight: 7.10 kg
Omnitronic OD-6T Wall Speakers – PDF Downloads
Download the Spec Sheet HERE
Download the User Manual HERE
