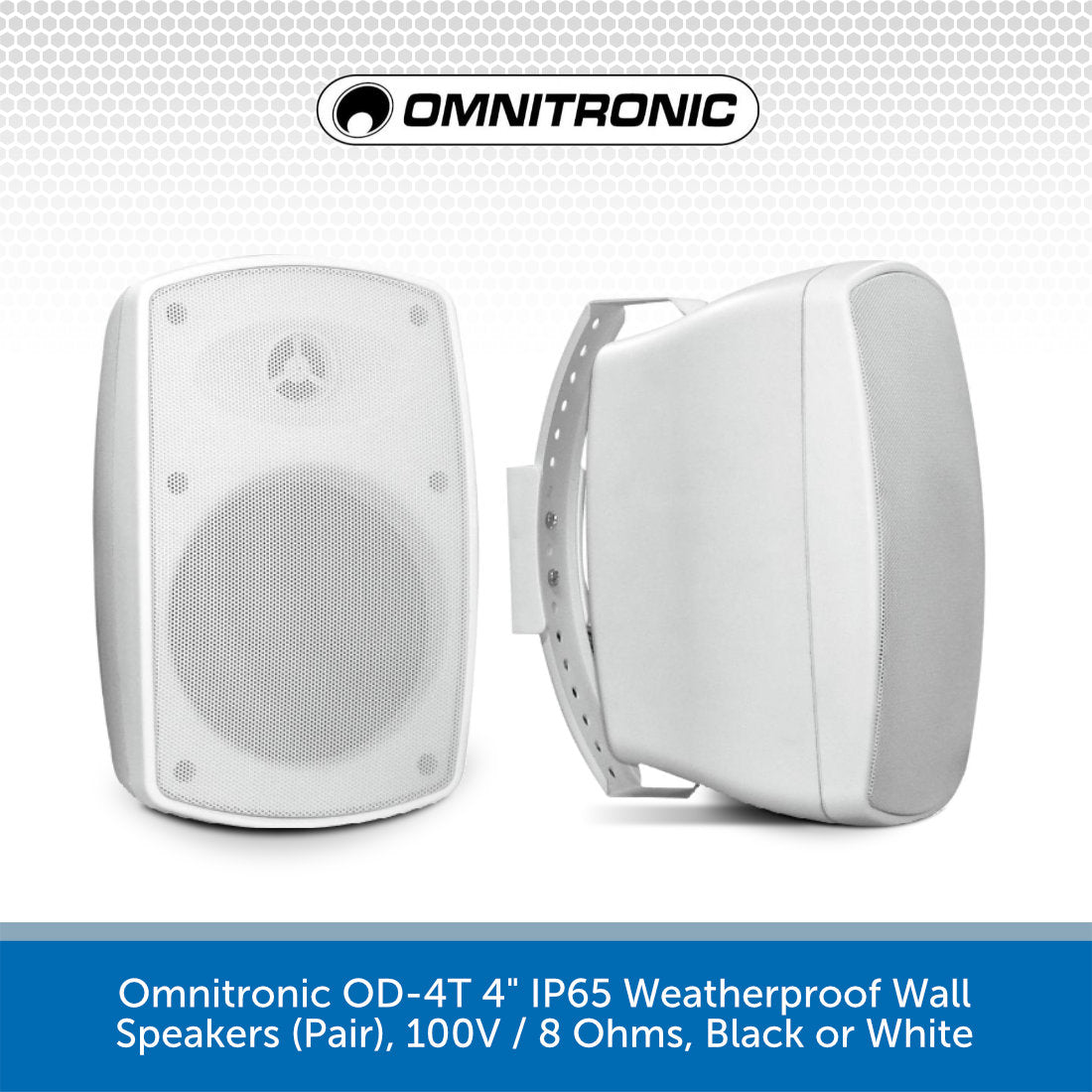

Omnitronic OD-4T 4″ IP65 Weatherproof Wall Speakers (Pair), 100V / 8 Ohms, Black or White
DETAILS
Omnitronic OD-4T 4″ IP65 Rated Weatherproof Wall Speakers designed for background music & announcements in outdoor environments.
Supplied in pairs, these outdoor wall speakers provide a smooth frequency response with a punchy bass reproduction perfect for a range of background music applications.
Thanks to an elegant, low-profile design the Omnitronic OD-4T speakers are ideal for environments that require a professional, yet unobtrusive speaker solution such as pub gardens, outdoor seating areas, cafes, garden centres & outdoor environments alike.
The Omnitronic OD-4T’s feature a durable IP65 rated plastic cabinet and rust-free metal grilles meaning they can be installed outdoors all year round.
These weatherproof loudspeakers operate on 100V Line with multiple power tappings of 16W, 8W, 4W & 2W and 8 Ohms @ 32W RMS.
The speakers are supplied with panning and tilting mounting brackets that allow for easy installation both vertically & horizontally on ceilings or walls.
Omnitronic OD-4T Wall Speakers Key Features
- 100 V PA speaker systems with an excellent sound for general applications
- 2-way system with 10 cm woofer (4″) and 1.5 cm tweeter (0.5″)
- Durable plastic cabinet with metal grille and cover for the connectors
- 100 V transformer with 4 power taps
- Power selector switch with 8 ohms operating position
- Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles
- Connection via pole terminals
- Packed as a pair
- Suitable for outdoor use
See SPECIFICATION tab for technical specs
SPECS & DOWNLOADS
Omnitronic OD-4T Wall Speakers Specifications
- Power supply: 100 V DC
- IP classification: IP65
- Rated power: 16 W RMS
- Program power: 32 W
- Frequency range: 100 – 20000 Hz
- Sensitivity: 88 dB
- Max. SPL: 91 dB
- Dispersion angle: 170° x 170°
- Impedance: 8 ohms; Public address systems 100V
- Power tapping: 2W; 4W; 8W; 16W RMS via Selector switch switchable
- Connections: Input: speakers via screw terminal
- Speakers: Horn (0.5″) approx. 1.27 cm, 1 x woofer (4″) approx. 10 cm
- Type of speaker: Compact cabinet speaker
- Dimensions: Width: 12,5 cm
- Depth: 12,5 cm
- Height: 19,5 cm
- Weight: 3,66 kg
Omnitronic OD-4T Wall Speakers – PDF Downloads
Download the Spec Sheet HERE
Download the User Manual HERE
