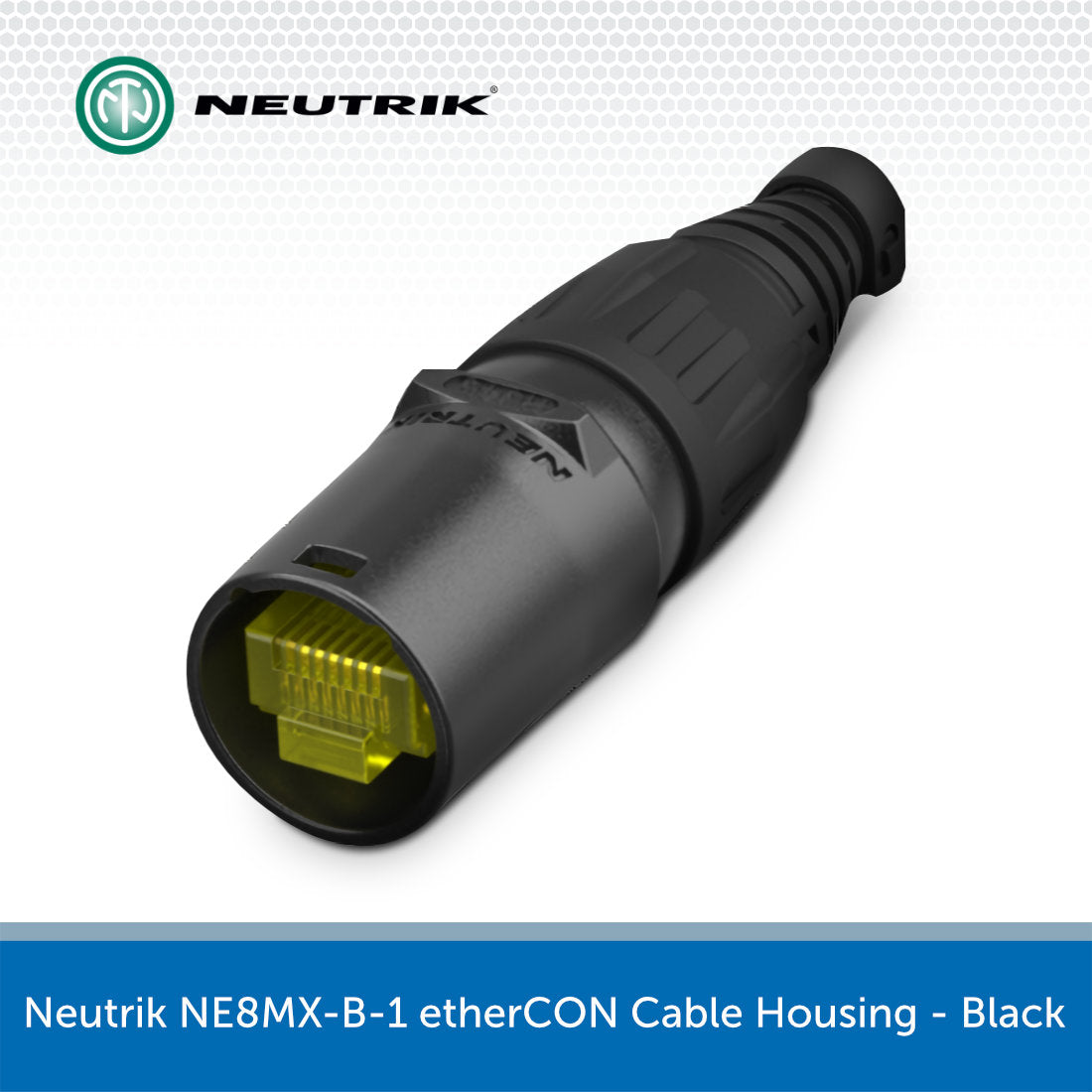

Neutrik NE8MX-B-1 etherCON Cable Housing – Black
DETAILS
Neutrik NE8MX-B-1 upgrades your Ethernet connections with the Cable Connector Carrier – the ultimate solution for a robust and lockable RJ45 connector.
Introducing the Cable Connector Carrier, the ultimate solution for upgrading your conventional RJ45 connector to an extremely robust and lockable solution. This carrier consists of a black chromium shell, chuck, and boot suitable for cable diameters from 3.5 – 8 mm. Designed for non-preassembled cables only, this cable connector carrier does not include an RJ45 plug.
Built to withstand harsh and demanding environments, the etherCON Cable Connector Carrier is the ideal solution for a variety of commercial type applications. With a rugged die-cast shell and unique chuck type strain relief, it protects Ethernet connections and prevents breakage of fragile components of standard RJ45 connectors.
Featuring a flat spot on the housing for better orientation, this cable connector carrier allows assembly of non-preassembled conventional RJ45 cables. It accepts the most common RJ45 plugs (see list at downloads) and comes with accessories including color-coded boots in 9 standard colors.
It’s important to note that this cable connector carrier does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Upgrade your Ethernet connections with the Cable Connector Carrier and experience a level of durability and reliability that’s second to none.
Features
- Upgrades RJ45 to a robust lockable solution for harsh environments
- Accepts common RJ45 plugs and fits cable diameters 3.5-8mm
- Rugged die-cast shell and unique chuck type strain relief
- Accessories include color-coded boots in 9 standard colors
- Flat spot on housing for better orientation
- Not compatible with CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B
SPECS & DOWNLOADS
Neutrik NE8MX-B-1 Specifications
-
Cable O.D.: 3.5 – 8 mm
-
Insertion force: ≤ 20 N
-
Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
