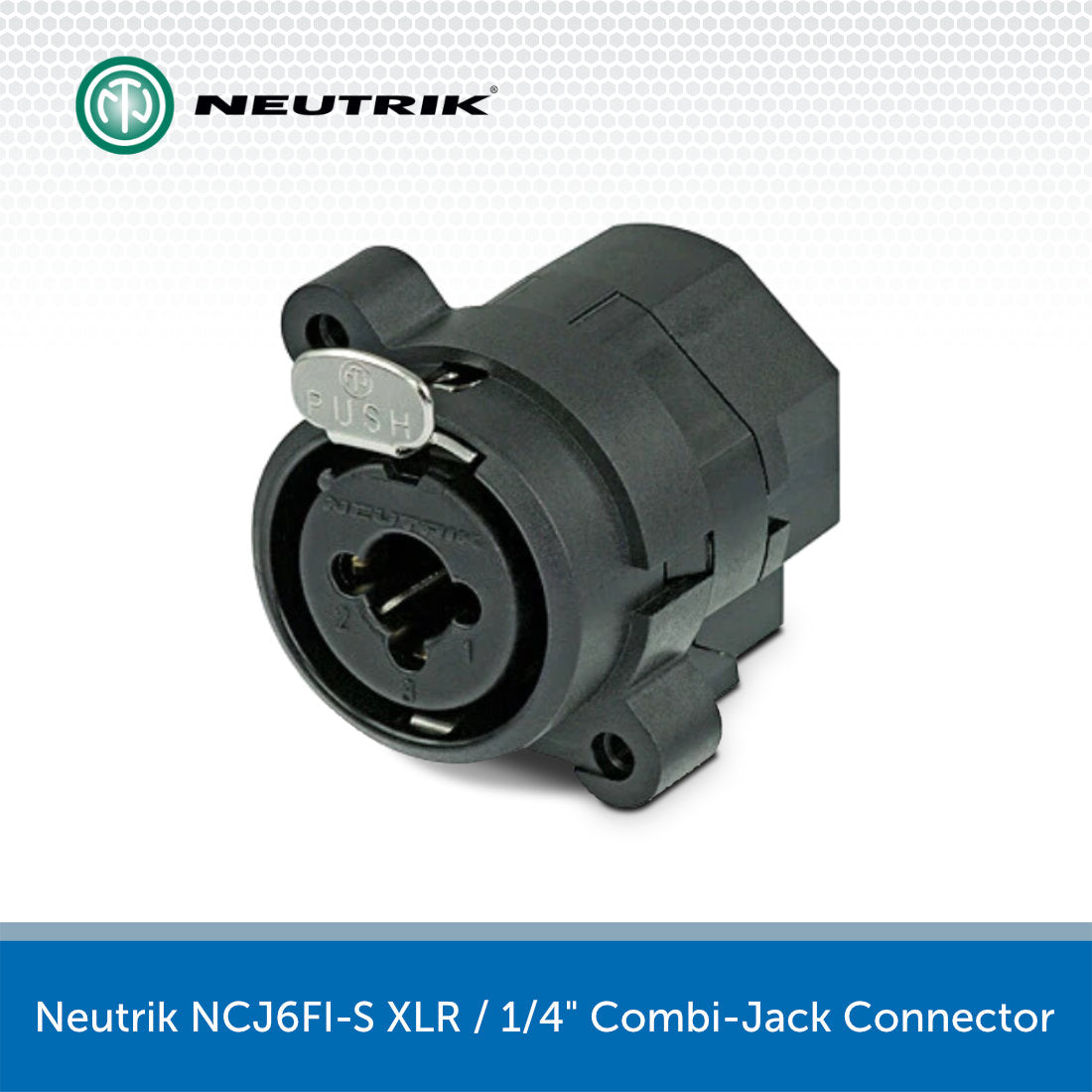

Neutrik NCJ6FI-S XLR / 1/4″ Combi-Jack Connector
DETAILS
A versatile hybrid chassis connector that combines a 3-pole XLR receptacle and 1/4″ phone jack.
The Neutrik NCJ6FI-S 3-pole XLR female receptacle with a 1/4″ stereo jack without switching contact and solder cups is a versatile and practical hybrid chassis connector that combines the functions of a 3-pole XLR receptacle and a 1/4″ phone jack in one convenient housing. This innovative design allows for both balanced or line inputs in a single XLR shell, making it ideal for use in various audio systems.
Not only does this connector offer the convenience of combining two connectors in one housing, but it also saves valuable rack space. This is especially useful for applications where space is at a premium or when multiple connectors need to be used in a single location.
Furthermore, the Neutrik NCJ6FI-S connector has very low conductor capacitance, making it a great choice for digital audio applications where signal quality is critical. The solder cups provide secure connections and ensure the connector is easy to install and use. Overall, the 3-pole XLR female receptacle with a 1/4″ stereo jack without switching contact and solder cups is a reliable and practical solution for your audio connectivity needs.
Features
- Combines 3-pole XLR receptacle and 1/4″ phone jack in one housing
- Offers balanced or line inputs in a single XLR shell
- Saves valuable rack space by combining two connectors in one housing
- Suitable for digital audio applications due to low conductor capacitance
- Easy to install with solder cups for secure connections
SPECS & DOWNLOADS
Neutrik NCJ6FI-S XLR Specifications
-
Contact resistance: < 10 mΩ (XLR)
-
Contact resistance: < 20 mΩ (jack)
-
Dielectric strength: 1,5 kVdc
-
Insulation resistance: > 10 GΩ (initial)
-
Rated current per contact: 7,5 A (XLR)
-
Rated current per contact: 7,5 A (Jack)
- Rated voltage: < 50 V
