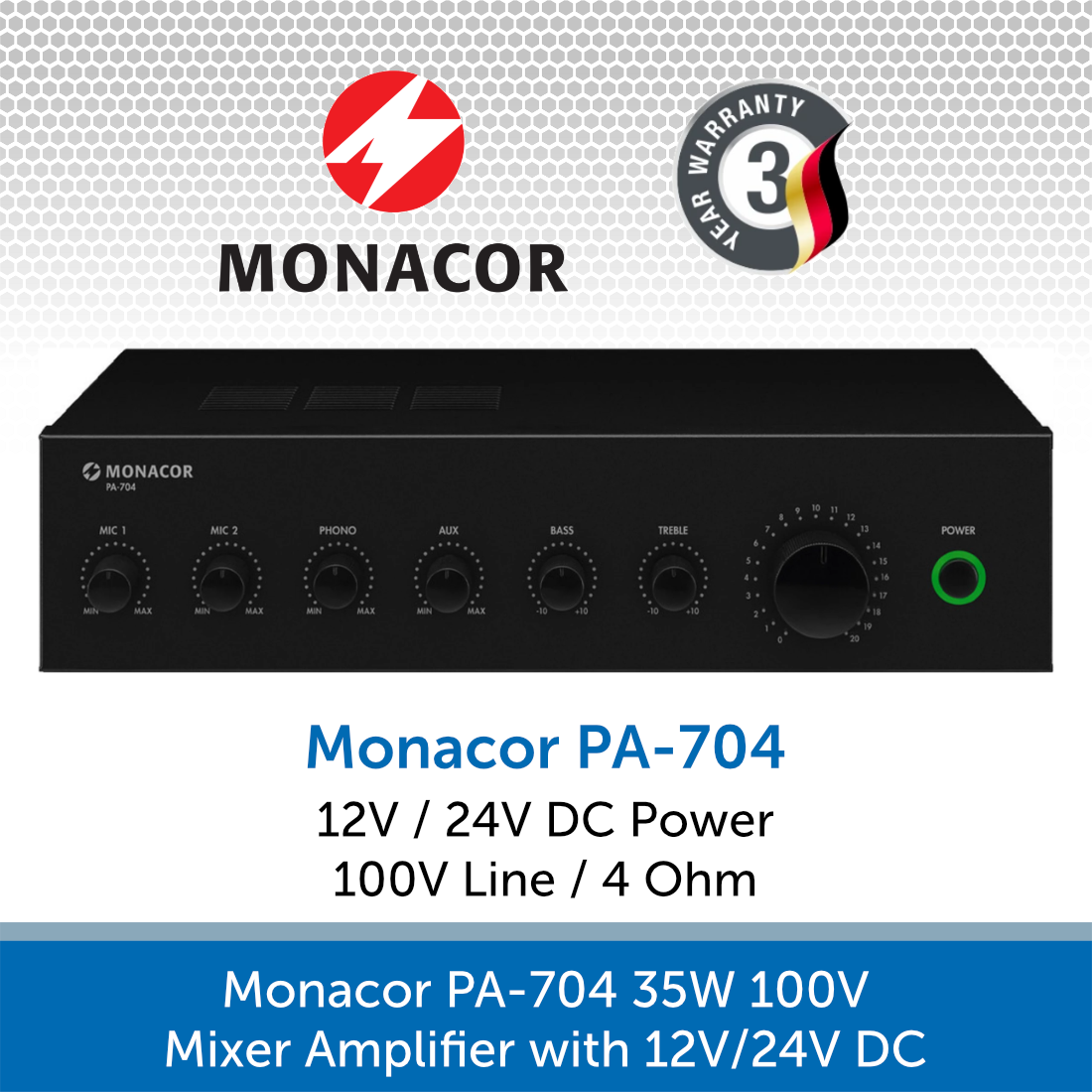

Monacor PA-704 35W 100V Mixer Amplifier with 12V/24V DC

DETAILS

The Monacor PA-704 is a compact 100V Mixer Amplifier that has 12V/24V power operation ideal for installation into vehicles or small venues.

With a 35W power output the PA-704 is capable of driving multiple background music speakers.

It can operate on both 100v or low impedance loudspeaker levels.

The PA-704 has a microphone input which has priority over the inputs; great for paging applications. An external media player such as a radio or phone can be connected to the Aux/Phono input on the back of the amplifier.

Comes with a 3-year manufacturers warranty.

Key features include:

• 1 x 35 W
• Silent operation due to fanless cooling concept
• 2 low-impedance microphone inputs
• 1 aux input, 1 phono input
• Speaker outputs via screw terminals
• Input and output level controls
• 2-way tone control for the output
• Connection for a microphone talk button to switch off the other sources during announcements
• Mains operation and 12-24 V emergency power operation

All Monacor products carry an industry leading 3 year warranty

SPECS & DOWNLOADS

Monacor PA-704 Mixer Amplifier

• Peak output power: 70 W
• Power rating: 35 W
• Channels: 4
• Inputs: 5 mV (mic), 210 mV (aux), 5 mV (phono)
• Frequency range: 100-18,000 Hz
• Equalizer bass: ±10 dB/150 Hz
• Equalizer treble: ±10 dB/6 kHz
• S/N ratio: > 55 dB
• THD: < 1%
• Mains voltage: ~ 230 V
• Mains frequency: 50 Hz
• Power consumption, operation: 100 VA
• Operating voltage (possible alternative): DC 12-24 V
• Power supply (possible alternative): DC 2.5 A
• Admiss. ambient temp.: 0-40 °C
• Width: 320 mm
• Height: 85 mm
• Depth: 230 mm
• Weight: 4.97 kg
• Connections: 2 x 6.3 mm jack (mic), 1 x RCA L/R (aux), 1 x RCA L/R (phono), connecting terminals (speakers)
