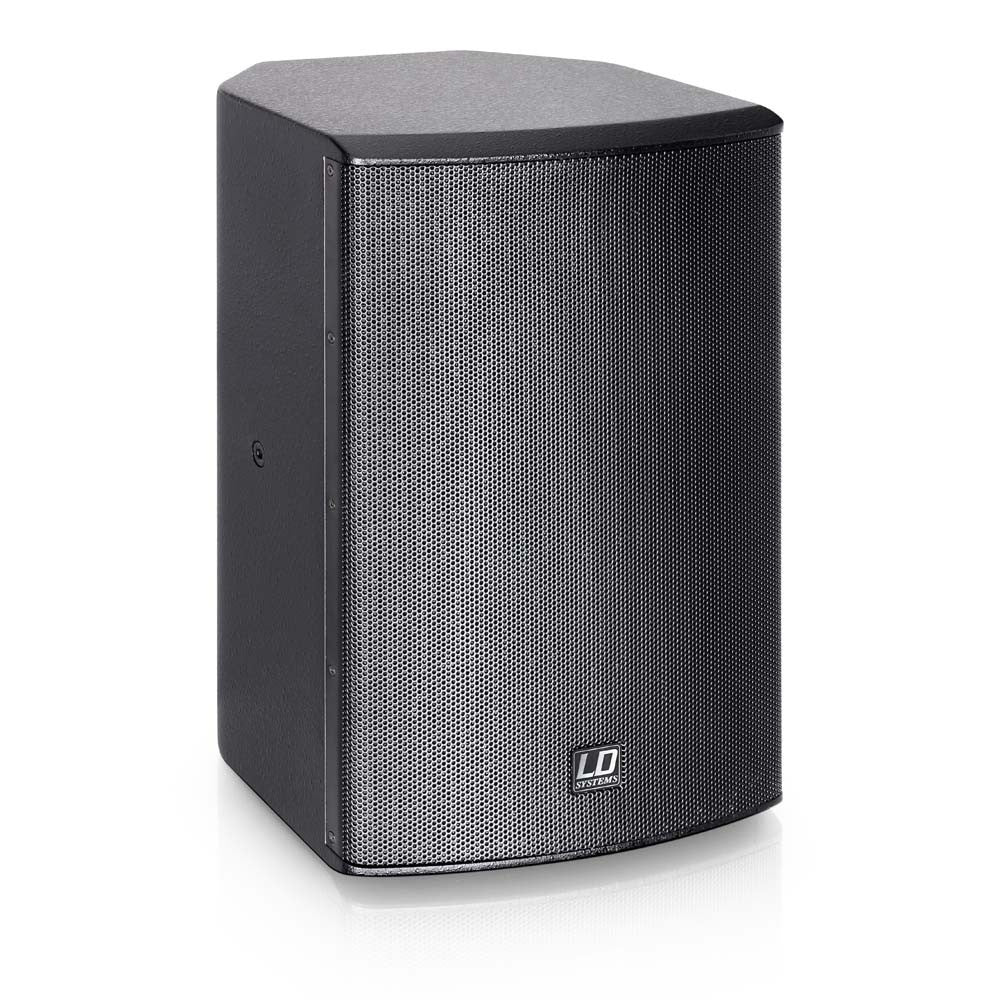

LD Systems SAT 82 A G2 8″ Active Installation Loudspeaker, Single – Black or White
DETAILS
The LD Systems SAT 82 A G2 is a high-quality, 2-way active loudspeaker designed for professional audio installations where clear, dynamic sound is essential.
Whether enhancing live music setups, delivering rich background audio in bars and restaurants, or providing precise sound reproduction in retail spaces and places of worship, this versatile speaker excels across a variety of environments.
Featuring an 8″ custom woofer and a 1″ high-frequency driver with a precise 60° x 60° dispersion angle, the SAT 82 A G2 covers a wide frequency range from 50 Hz to 20 kHz, with a maximum SPL of 114 dB. Its bass-reflex enclosure ensures rich low-end performance, perfectly suited for background music, live sound reinforcement, or focused audio applications.
Built with robust 12mm MDF and finished in durable textured paint, this speaker is available in black or white to suit any décor. It comes with a mounting bracket and M6 fixing points for flexible installation options, whether mounted on walls or positioned for standalone use. Connectivity includes XLR and 6.3mm jack inputs, as well as an XLR line output for easy system integration.
The SAT 82 A G2 also features switchable automatic power-save mode and protection circuits for the high-frequency driver and overvoltage, ensuring reliable operation in demanding environments.
LD Systems SAT 82 A G2 Key Features:
- 8″ Custom Woofer & 1″ High-Frequency Driver: Delivers precise, dynamic audio across a 50 Hz – 20 kHz frequency range.
- Integrated Class AB Amplifier: Provides 80W RMS power for a powerful yet balanced performance.

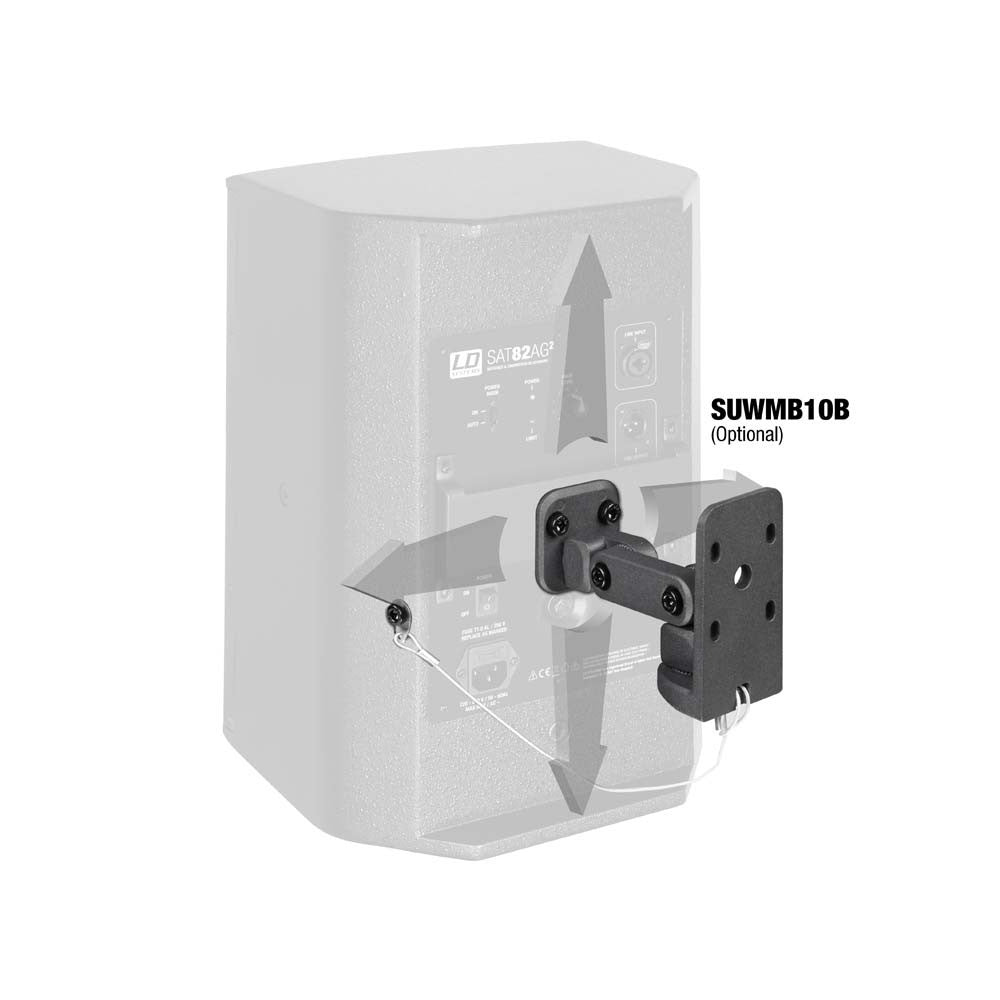

- Versatile Installation Options: Includes mounting bracket and M6 fixing points for seamless wall mounting or other setups.
- Professional Build: Durable 12mm MDF cabinet with textured paint finish, available in black or white.
- Flexible Connectivity: XLR and 6.3mm jack inputs with XLR line output for easy system integration.
- Enhanced Protection: Includes circuits for high-frequency driver and overvoltage protection.
Compact, powerful, and built for versatility, the LD Systems SAT 82 A G2 is the perfect solution for live music setups, commercial spaces, and professional audio installations.
SPECIFICATION
Download the PDF User Manual HERE >
LD Systems SAT 82 A G2 Specifications
- Product type: Installation Loudspeakers
- Type: Wall-mounted Loudspeaker
- Low/mid Woofer dimensions: 8″
- Woofer dimensions (mm): 203.2 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- HF driver dimensions: 1 “
- HF driver dimensions (mm): 25 mm
- HF driver magnet: Ferrite
- HF driver brand: Custom-made
- Power amplifier (Class A): Class A/B
- Dispersion (H x V): 60 x 60 °
- Speaker Power (RMS): 80 W
- Frequency response: 50 – 19000
- SPL (1W/1m): 93 dB
- Max. SPL: 114 dB
- Protection circuits: HF Driver, over voltage

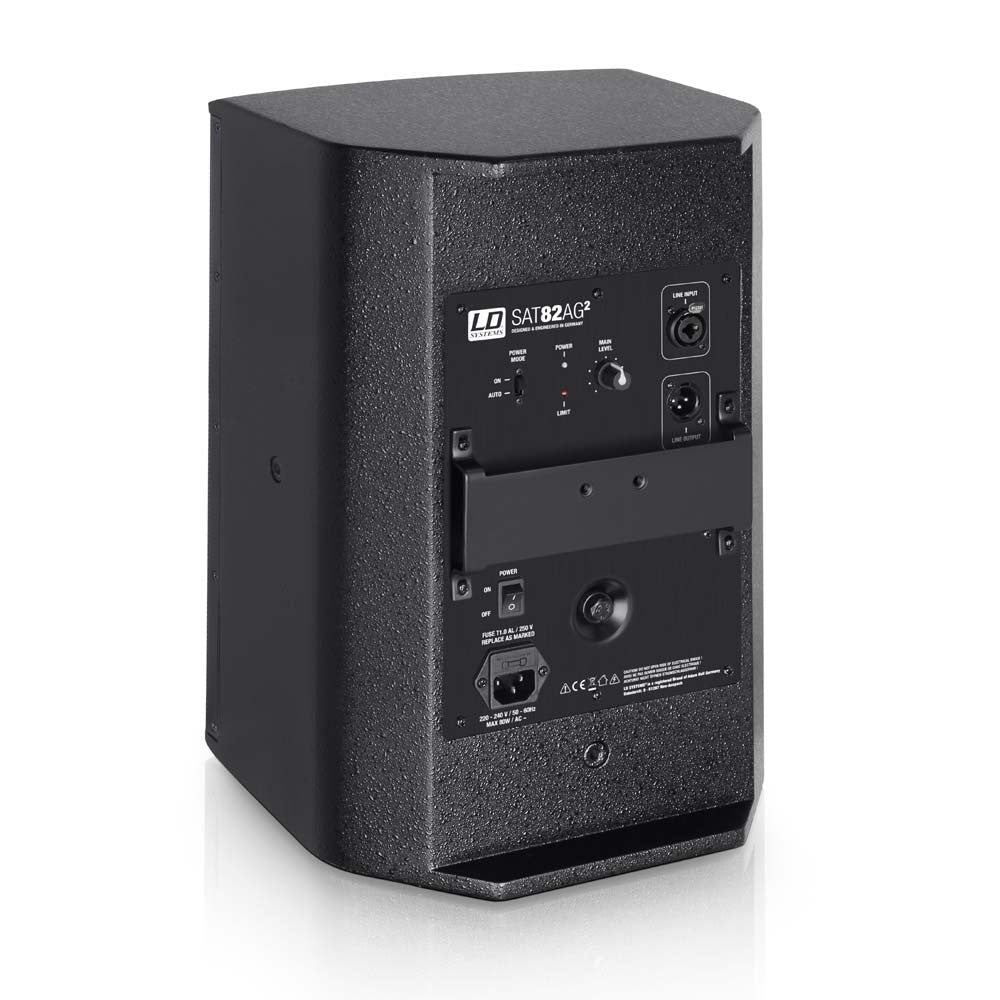

- Controls: mains switch (on/off), volume
- Line input connectors: 6.3 mm jack, XLR
- Line output connectors: XLR
- Power supply: Transformer
- Operating voltage: 220 V AC – 240 V AC, 50-60 Hz
- Cabinet material: 12 mm MDF
- Cabinet surface: texture paint
- Cabinet colour: white / black
- Cabinet construction: Bass Reflex
- Width: 274 mm
- Height: 410 mm
- Depth: 243 mm
- Weight: 8.5 kg
