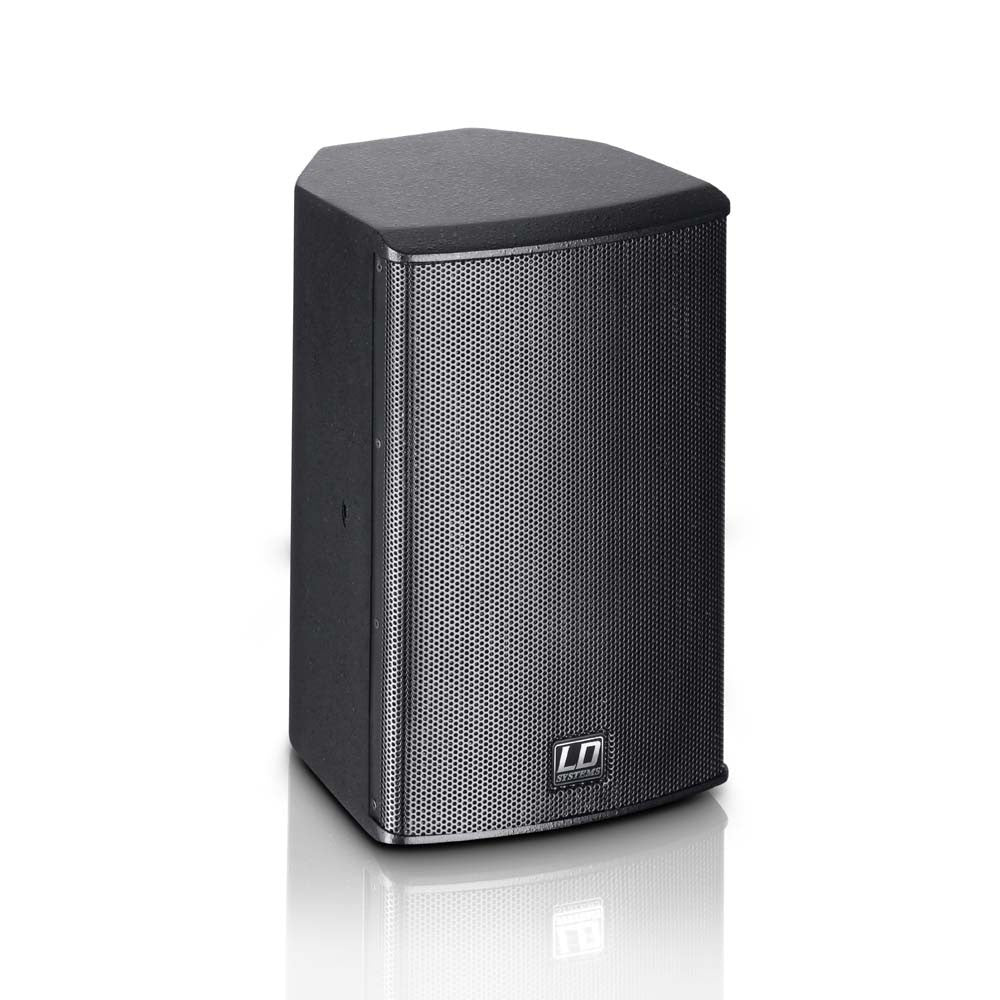

LD Systems SAT 62 A G2 6.5″ Active Installation Loudspeaker, Single – Black or White
DETAILS
The LD Systems SAT 62 A G2 is a compact and versatile 2-way active loudspeaker, designed for professional audio installations where clarity, reliability, and dynamic sound are essential.
Perfect for less demanding applications, this speaker is ideal for delivering background audio in bars, restaurants, gyms, and places of worship, as well as other commercial or public spaces.
Equipped with a 6.5″ custom woofer and a 1″ silk dome tweeter featuring a precision-engineered waveguide, the SAT 62 A G2 delivers balanced and detailed sound across a frequency range of 55 Hz to 20 kHz. Its bass-reflex cabinet enhances low-end performance, providing a tight and controlled bass response that complements its articulate mids and smooth highs. The speaker’s Class AB amplifier produces 50W RMS of clean and consistent power, capable of achieving a maximum SPL of 108 dB.
Built for Versatile Installations
The SAT 62 A G2 is crafted from durable 12mm MDF with a hardwearing textured finish, ensuring it can withstand the rigours of professional use. Available in black or white, this loudspeaker blends seamlessly into any environment, offering both style and substance. For easy installation, it comes equipped with M6 rigging points and a versatile mounting bracket, allowing for wall or ceiling placement. For even greater flexibility, a universal joint mount is available as an optional accessory.
Connectivity and Energy Efficiency
The SAT 62 A G2 offers professional-grade connectivity with an XLR-jack combo input and an XLR line output, making it easy to integrate into multi-speaker systems or complex audio setups. To enhance energy efficiency, the speaker features a switchable power-saving mode that automatically places it in standby after 3 minutes of inactivity, helping to reduce power consumption without impacting performance.
LD Systems SAT 62 A G2 Key Features:
- Compact 2-Way Design: Features a 6.5″ custom woofer and a 1″ silk dome tweeter with a waveguide for precise and dynamic sound reproduction.
- Bass Reflex Cabinet: Provides enhanced low-end performance for balanced audio across a wide frequency range of 55 Hz to 20 kHz.
- Integrated Class AB Amplifier: Delivers 50W RMS of consistent power with overcurrent protection for reliable operation.
- Professional Connectivity: Includes an XLR-jack combo input and an XLR output for easy signal integration and daisy-chaining.
- Flexible Installation Options: Supplied with a mounting bracket and M6 rigging points for wall or ceiling installation. Optional universal joint mount available.
- Energy-Efficient Design: Switchable power-saving mode reduces energy consumption by automatically entering standby after 3 minutes of inactivity.
- Durable Construction: Built with 12mm MDF and finished in a durable textured coating, available in black or white to complement any environment.
SPECIFICATION
Download the PDF User Manual HERE >
LD Systems SAT 62 A G2 Specifications
- Product type: Installation Loudspeakers
- Type: Wall-mounted Loudspeaker
- Low/mid Woofer dimensions: 6.5″
- Woofer dimensions (mm): 165 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- HF driver dimensions: 1 “
- HF driver dimensions (mm): 25 mm
- HF driver magnet: Ferrite
- HF driver brand: Custom-made
- Power amplifier (Class A): Class A/B
- Dispersion (H x V): 60 x 60 °
- Speaker Power (RMS): 50 W
- Frequency response: 55 – 20000
- Max. SPL: 108 dB
- Protection circuits: HF Driver, over voltage
- Controls: mains switch (on/off), volume
- Line input connectors: 6.3 mm jack, XLR
- Line output connectors: XLR
- Power supply: Transformer
- Operating voltage: 220 V AC – 240 V AC, 50-60 Hz
- Cabinet material: 12 mm MDF
- Cabinet surface: texture paint
- Cabinet colour: white / black
- Cabinet construction: Bass Reflex
- Width: 200 mm
- Height: 320 mm
- Depth: 200 mm
- Weight: 5.25 kg
