LD Systems SAT 262 G2 2 x 6.5″ Passive Installation Loudspeaker, Single – Black or White
DETAILS

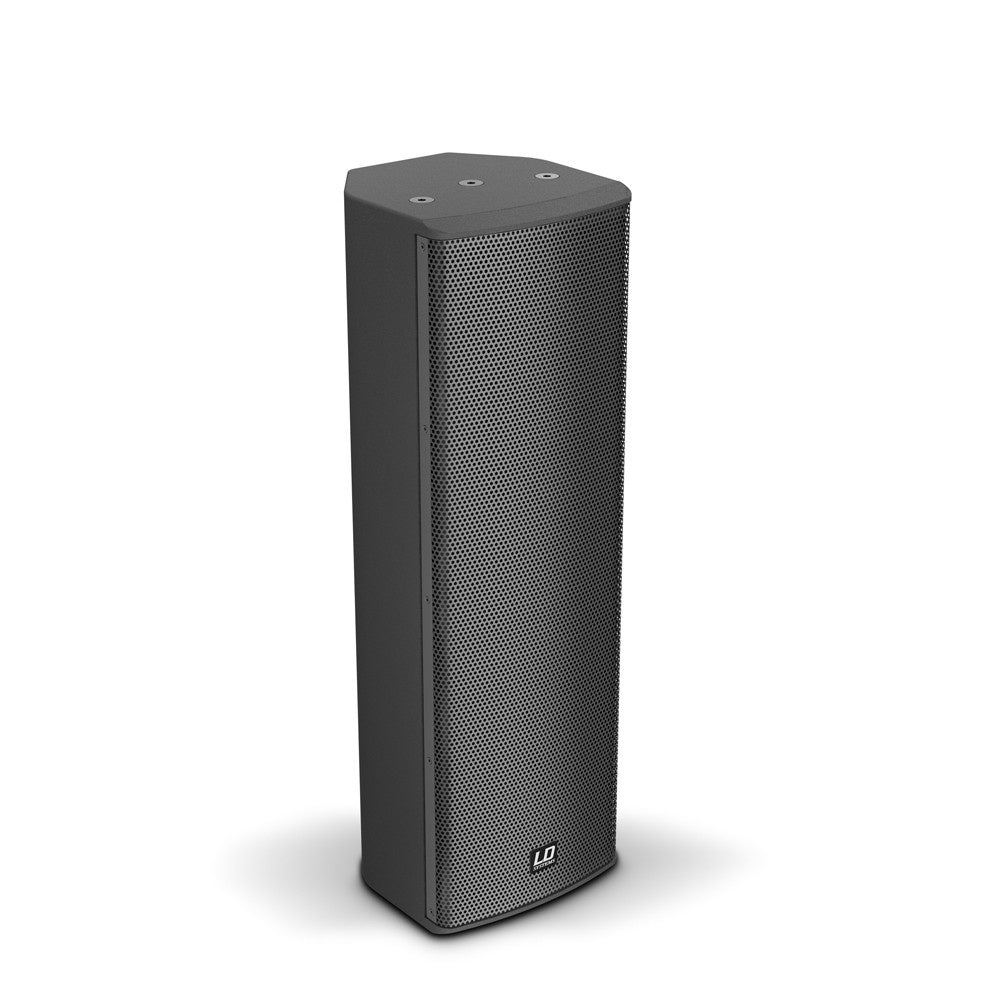

The LD Systems SAT 262 G2 is a powerful, passive 2-way bass-reflex installation loudspeaker designed for commercial and professional audio environments.
This high-performance speaker is perfect for applications in venues such as bars, conference rooms, places of worship, gyms, and retail spaces where clear, dynamic sound is essential.
Equipped with dual 6.5″ custom woofers and a 1″ Celestion tweeter driver, the SAT 262 G2 delivers impressive audio with a maximum sound-level pressure of 116 dB. The speaker is designed for a 180 W permanent load capacity, making it a reliable option for demanding audio setups. The rotating CD horn, with its 80° x 60° dispersion pattern, ensures even coverage, whether used vertically or horizontally.

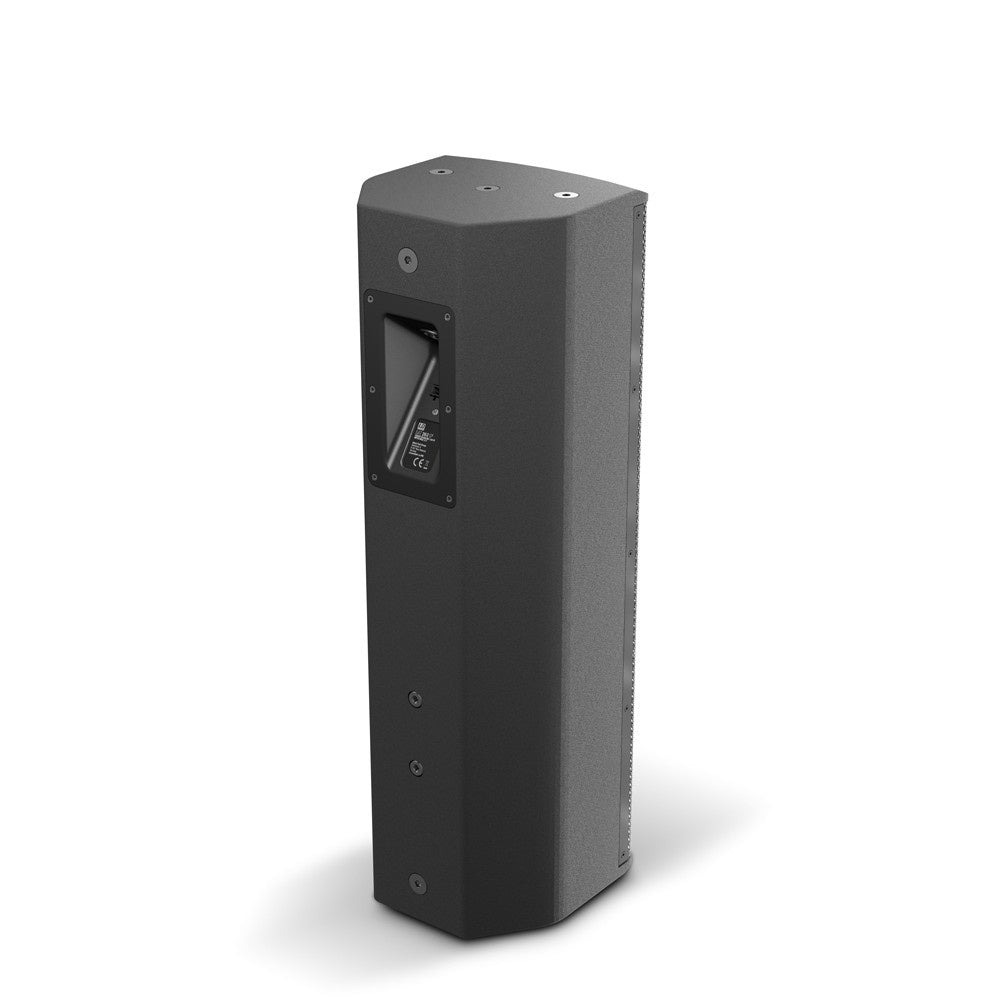

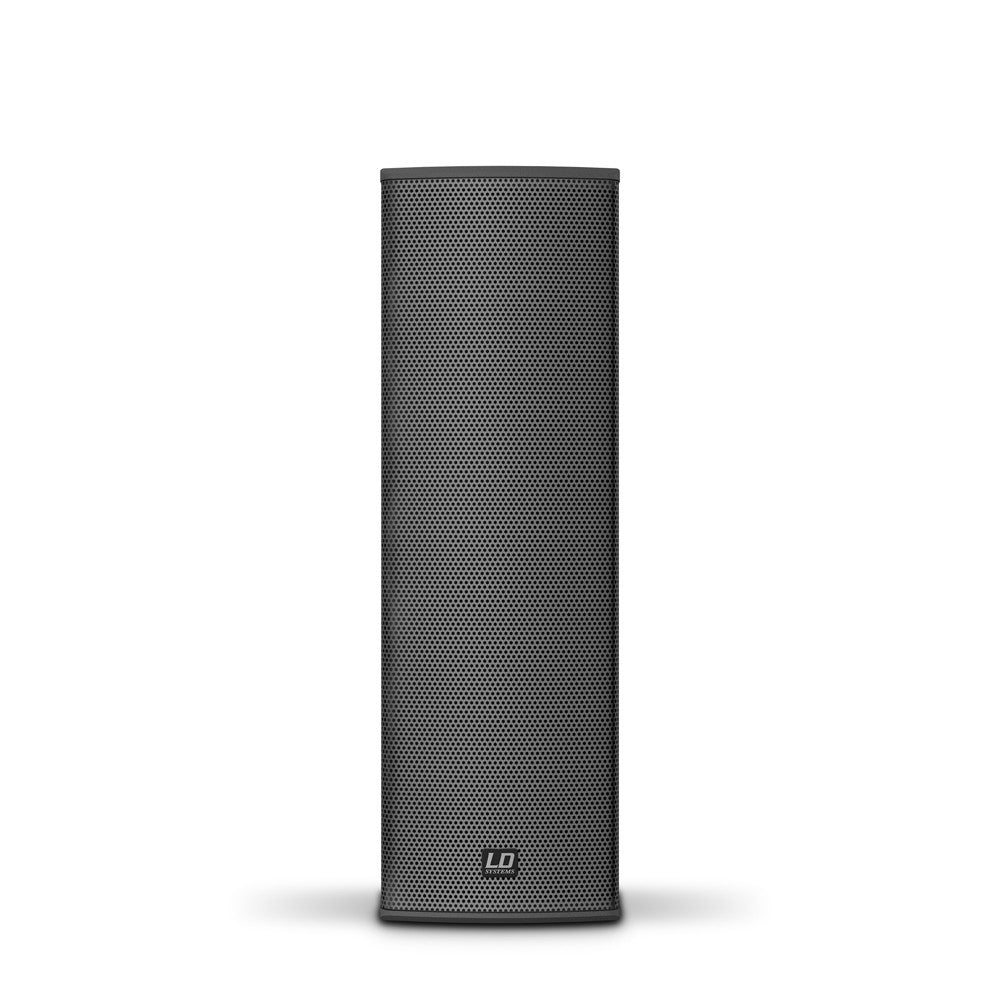

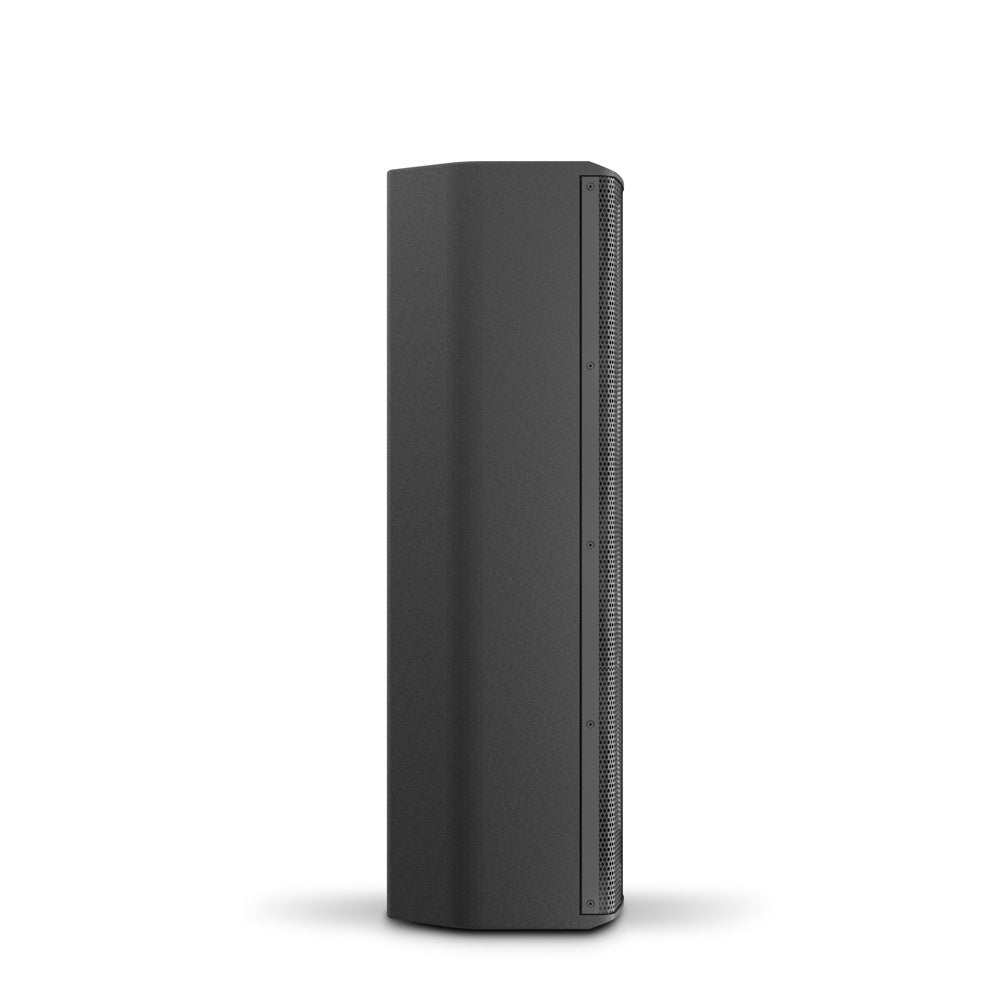

The SAT 262 G2’s robust design features a shock-resistant front grille for optimal speaker protection, making it suitable for use in high-traffic environments. It also offers flexible installation options with speakON-compatible and terminal block inputs, and four M8 mounting holes. Available in both black and white, the speaker can blend seamlessly into any space.
LD Systems SAT 262 G2 Key Features:
- Dual 6.5″ woofers and a 1″ Celestion tweeter for balanced sound reproduction.
- 180 W permanent load capacity and 116 dB maximum SPL.
- Rotating CD horn with 80° x 60° dispersion for flexible installation.
- speakON-compatible and terminal block input for easy connectivity.
- Shock-resistant front grille for durability and protection.
- Available in black or white with M8 mounting points for versatile installation.
With its powerful output, flexible installation options, and rugged design, the LD Systems SAT 262 G2 is an excellent choice for high-quality audio in professional and commercial settings.
SPECIFICATION
Download the PDF User Manual HERE >
LD Systems SAT 262 G2 Specifications
- Product type: Installation Loudspeakers
- Type: Wall-mounted Loudspeaker
- Low/mid Woofer dimensions: 2 x 6.5″
- Woofer dimensions (mm): 2 x 165.1 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil (mm): 38.1 mm
- HF driver dimensions: 1 “
- HF driver dimensions (mm): 25.4 mm
- HF driver magnet: Ferrite
- HF driver brand: Celestion
- HF driver voice coil: 1 “
- HF driver voice coil (mm): 25.4 mm
- Dispersion (H x V): 80 x 60 °
- Load rating (RMS): 180 W
- Peak power: 360 W
- Frequency response: 65 – 19000
- SPL (1W/1m): 93 dB
- Max. SPL: 116 dB
- Impedance: 8 Ohm(s)
- Protection circuits: HF Driver
- Loudspeaker inputs: 2
- Speaker input connections: Speakon compatible, Terminal block
- Cabinet material: 12 mm MDF
- Cabinet surface: texture paint
- Cabinet colour: white / black
- Cabinet construction: Bass Reflex
- Width: 200 mm
- Height: 630 mm
- Depth: 205 mm
- Weight: 9,8 kg
