JTS R4 8-Way ‘All Racked Up’ Wireless Microphone System – Headset or Handheld Mics
DETAILS
The R-4 ‘All Racked Up’ kit includes everything you need to build a complete wireless multichannel system.
The JTS R-4 ‘All Racked Up’ System is the ideal choice for anyone looking to create an effortless high-quality wireless multichannel system. It is especially well-suited for schools, theatres, places of worship and multi-vocal/multi-instrumental bands.
The JTS R-4 System includes the following components:
JTS R-4 Quad Wireless UHF Microphone Receiver: A reliable and robust wireless microphone receiver boasting four license-free channels with the ability to combine up to three receivers to allow up to 12 simultaneous microphones. Telescopic antennas can be installed on the front of the unit, enabling it to be rack mounted whilst still achieving full signal.

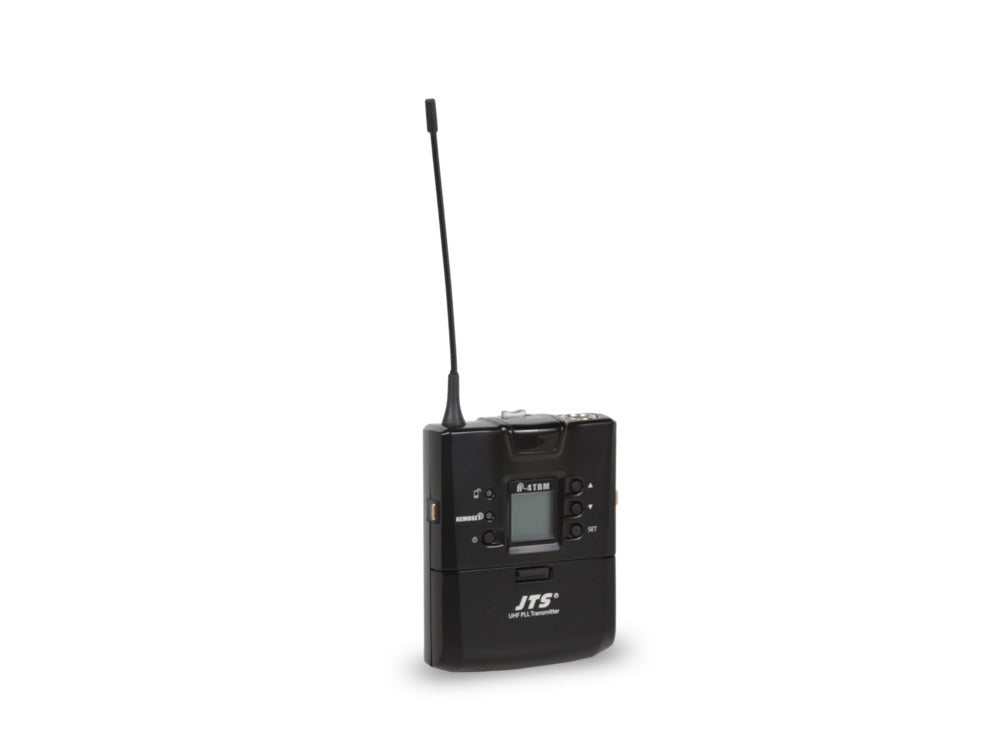

Choice of Transmitters: Choose from handheld or body-pack transmitters. Additional units are also available separately. All microphones are powered by rechargeable batteries, offering both greater convenience and significantly lower long-term cost when compared with standard non-rechargeable systems.
4U Flight Case: This shallow flight case offers advanced protection and peace of mind when transporting your system between venues.
2U Lockable Metal Rack Drawer: Perfect for organising and storing your R-4 system for quick, easy and portable access.
Rear-to-Front Cable Set: Allows the R-4’s rear antennae to be front-mounted, eliminating the usual signal issues encountered when rack-mounting other wireless receiver units.
Key Features:
- Latest wireless technology
- Increased channel compatibility in limited bandwidth
- Easy cascading with antenna outputs and AC power supply
- Patented REMOSET feature for simplified microphone data transmission
- Simultaneous data reception for all 4 microphones with one push
- Detailed adjustments for optimal audio and radio performance
NOTE: This system does not ship as a complete unit – the above parts of this system arrive in their individual boxes and require user assembly.
SPECS & DOWNLOADS
JTS R-4 Wireless Microphone Receiver Specifications
-
Frequency Preparation: PLL Synthesized Control
-
Carrier Frequency Range: Options of 606.5 – 638MHz or 823 – 865MHz
-
S/N Ratio: > 105dB
-
T.H.D.: <0.6%@1KHz
-
Display Contents: Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter (LED BAR), RF Meter (LED BAR) , Battery Status
-
Controls: Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad
-
Audio Output Level: -12dB
-
AF Output Impedance: 600Ω
-
Squelch: Pilot Tone & Noise Mute
-
Operation Voltage: 12V 1A
-
Output Connectors: 4 independent XLR outputs, and 1 Ø6.3mm and 1 XLR for mixed output
- Dimension(mm): 212.3(W)x38.3(H)x144(D)
