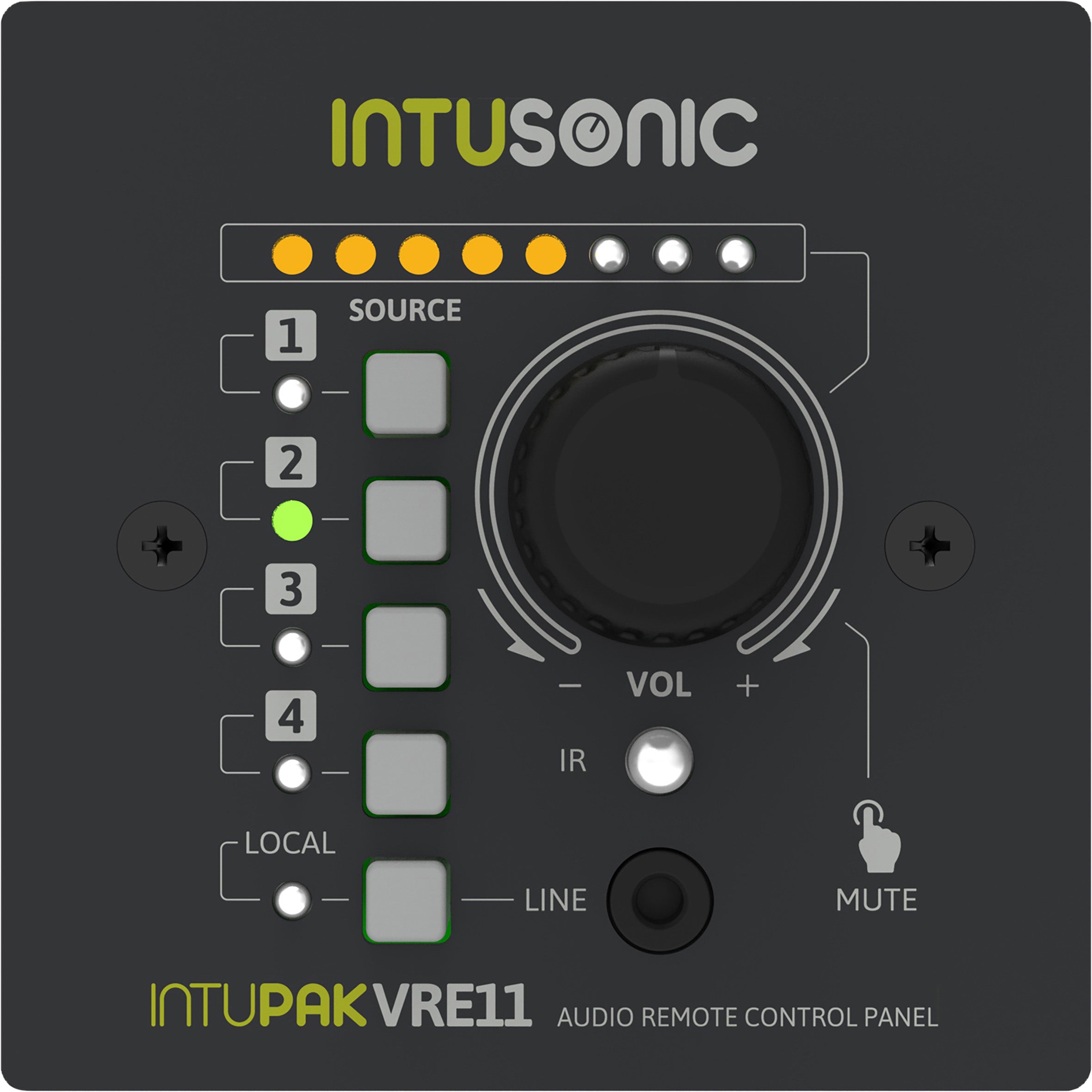

Intusonic IntuPak VRE11 Remote Volume/Source Selector Wall Panel
DETAILS
Despite its unimposingly elegant looks, the INTUPAK™ VRE11 is a powerful and versatile user frontend for Intusonic’s RS-485 enabled audio control systems.
It fits standard wall box sizes with minimal depth and hence can be mounted right where its needed – in the room to be controlled. A standard CAT network cable is sufficient for connections; no additional power supply is required.
Due to its daisy-chaining possibilities, more than one unit can be installed in a room, with the last operated one setting the system, and those settings being replicated on all VRE11 panels as well as the connected main unit.
A local audio feed is possible as well, via the provided 3.5mm jack. For even better convenience, the VRE11 also sports an infrared remote control receiver and comes with a IRB44 remote control right out of the box.

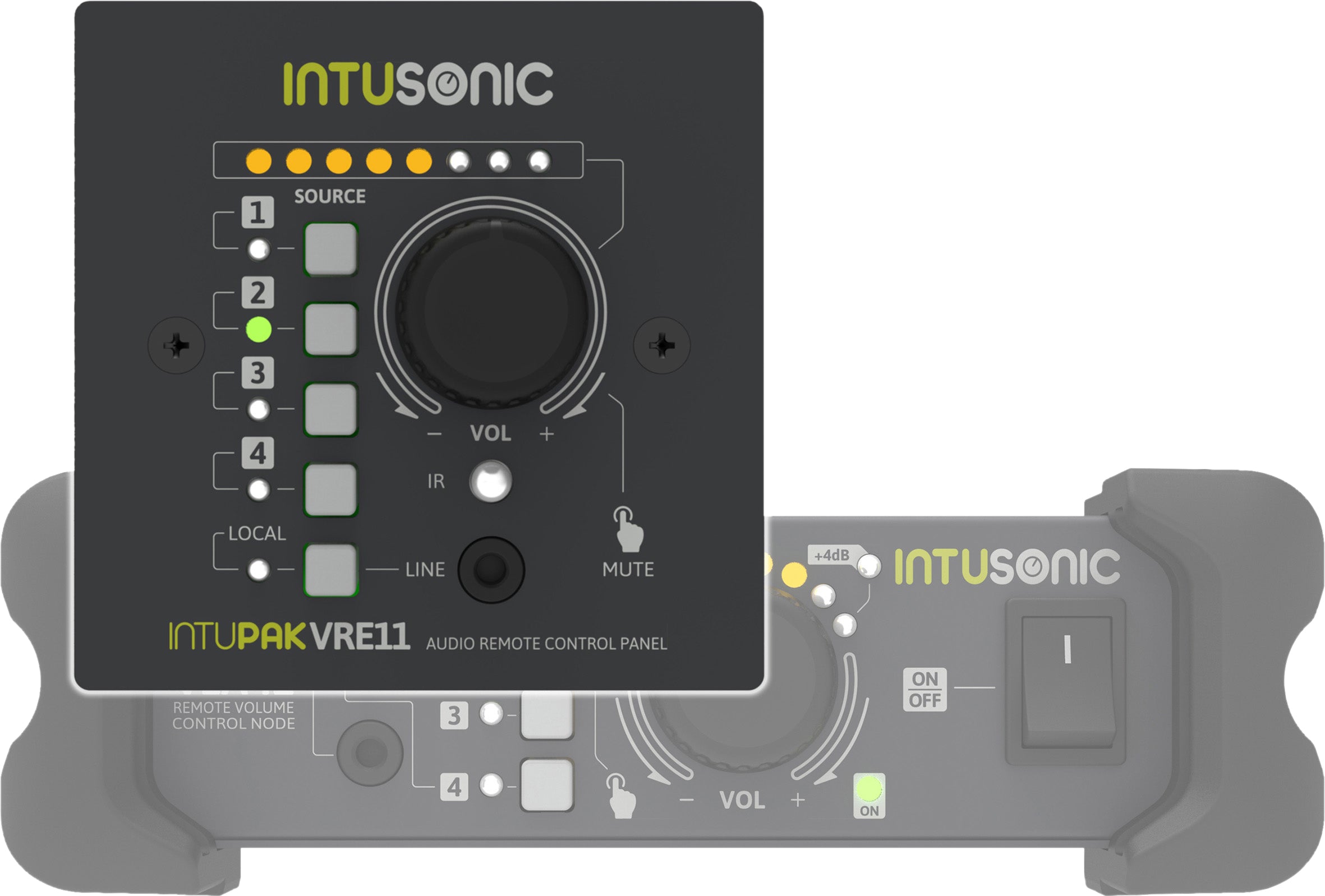

The VRE11 is compatible with the VLA42 control node and other RS-485 enabled INTUSONIC audio systems.
Intusonic IntuPak VRE11 Key Features:
- 4 line level inputs (1×3.5mm-strip/balanced, 3xRCA-unbalanced)
- Input 1 with Ultra-High CMRR input circuitry for long cable runs
- Balanced master output (3.5mm terminal strip)
- Front volume control with 8-LED volume indicator
- Front source selector switches with indicator LEDs
- Indicator LED for remote input selection on wall panel
- IR receiver and 3.5mm TRS IR extension port; IRB44 infrared remote control included
- RJ45 port for VRE11 wall panel & RJ45 port for RS485 control
- High-headroom digital potentiometer circuitry
- Full metal case, supplied with TPR bumper corners, surface mounting brackets & front mounting brackets as options
- JUP2 rackmount kit for 19’’ rack mounting available optionally
- Internal switch mode PSU with AC mains selector 115/230V
- CE/ROHS compliant
SPECS & DOWNLOADS
Download the PDF Data Sheet HERE >
Intusonic IntuPak VRE11 Specifications
- Colour: Black
- Mounting Depth (mm): 30
- Type of Connection: intulink (RS485) via CAT5/6
- Weight (kg): 0.15
- Product Dimensions (mm): 86x86x42
