Intusonic IntuGrid HZE11 Wall-Mount Zone Remote Control Panel
DETAILS
Intusonic IntuGrid HZE11 – Wall-Mount Zone Remote Control Panel for HMA72 & HMA74

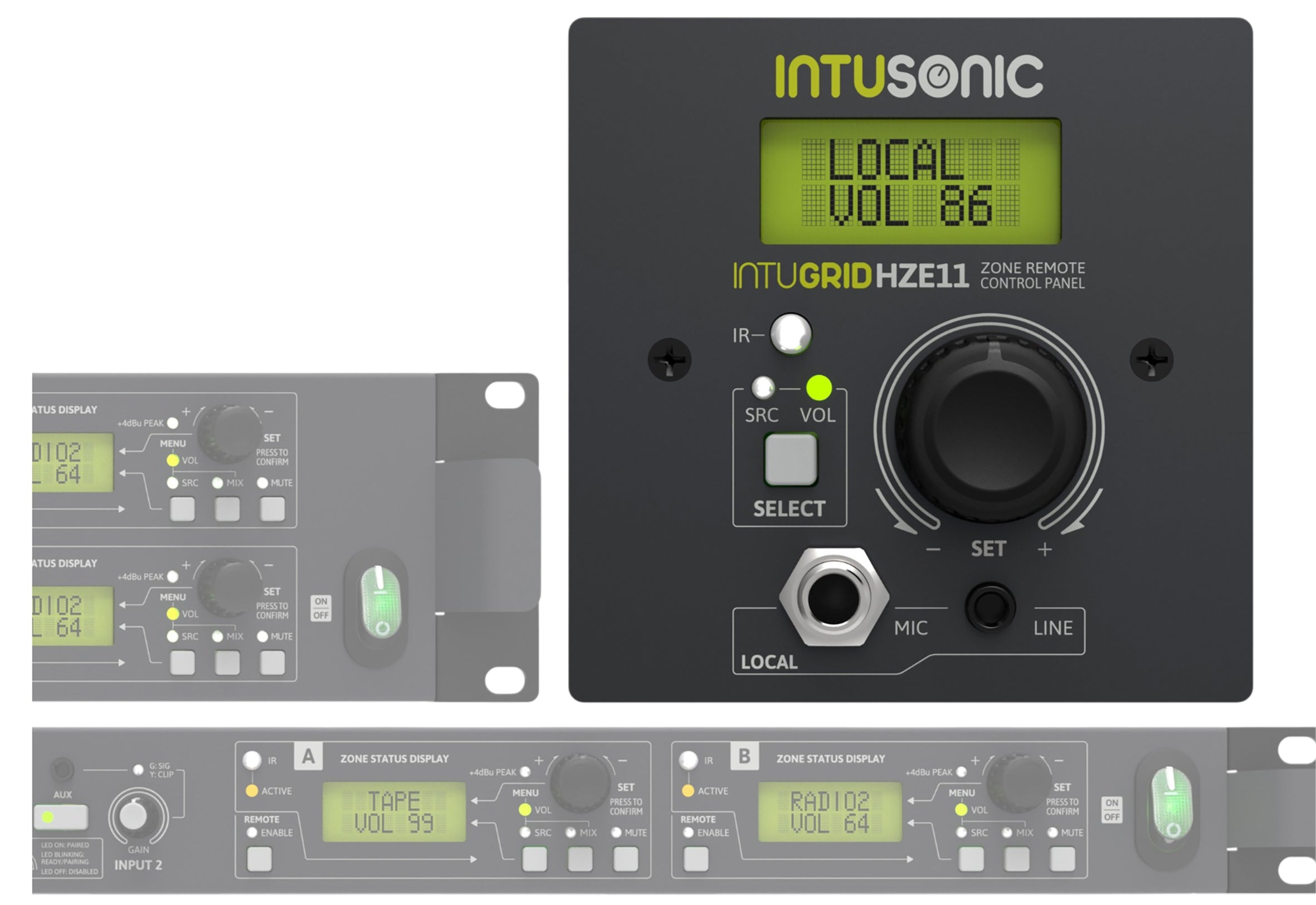

The Intusonic IntuGrid HZE11 is a remote control panel designed for use with the HMA72 and HMA74 Zonal Audio Matrix Routers, providing convenient local control over zone volume, input selection, and audio routing. Mounted in the room where control is required, the HZE11 allows staff or users to adjust settings directly, making it ideal for hospitality venues, offices, retail spaces, fitness studios, and more.
Seamless Integration & Simple Installation
The HZE11 connects via standard CAT network cable and requires no additional power supply, ensuring quick and straightforward installation in any standard wall box. Multiple units can be daisy-chained, allowing control from multiple locations within a zone—the last operated panel updates all connected HZE11 units and the main HMA7x system.
Local Audio Input & Remote Control Functionality
A local 3.5mm AUX input allows users to connect a stereo audio source, while a 6.35mm jack input supports mono microphone feeds, expanding the system’s flexibility for presentations, meetings, or localized music playback. The built-in IR receiver enables remote operation, and the IRB44 remote control is included for added convenience.
Intusonic IntuGrid HZE11 Key Features:
- Wall-mounted remote panel for HMA72 and HMA74 Zonal Audio Matrix Routers
- Easy installation with CAT network cable connectivity – no additional power required
- Local control of volume, input selection, and audio routing for assigned zones
- Daisy-chain capability for multiple control points in the same zone
- 3.5mm AUX stereo input and 6.35mm mono microphone input for local audio sources
- Infrared remote control receiver with IRB44 remote included
- Compact design, fits standard wall boxes for seamless integration
SPECS & DOWNLOADS
Download the PDF Spec Sheet HERE >
Download the Instruction Manual HERE >
Intusonic IntuGrid HZE11 Specifications
- Data connection: Intulink™ (RS485) via CAT5/6
- Power supply: ±12V DC via Intulink™ bus
- Audio In: 3.5mm stereo line/6.35mm mono mic
- Audio Transmission: mono summed
- Max. Number of zones: 8
- Dimensions WxDxH: 86x86x42 mm (/w knob)
- Mounting depth: 30 mm
- Weight: 0.15kg
