Inter-M WS Series Compact Wall Mount Speakers for Background & Foreground Music, IP54 Rated
DETAILS
The Inter-M WS Series Loudspeakers are designed to deliver professional quality audio for both background and foreground music/voice applications.
These installation speakers are weather resistant (IP54 Rated) so can be used in indoor and outdoor environments. They feature a compact and elegant design that is perfect for stylish environments where space is at a premium.
The speakers can be used in various applications from small-sized venues to mid/large-sized venues. They particularly fit in facilities that require high-quality background/foreground music such as cafes, bars and restaurants, hotel lobbies and retail stores etc.

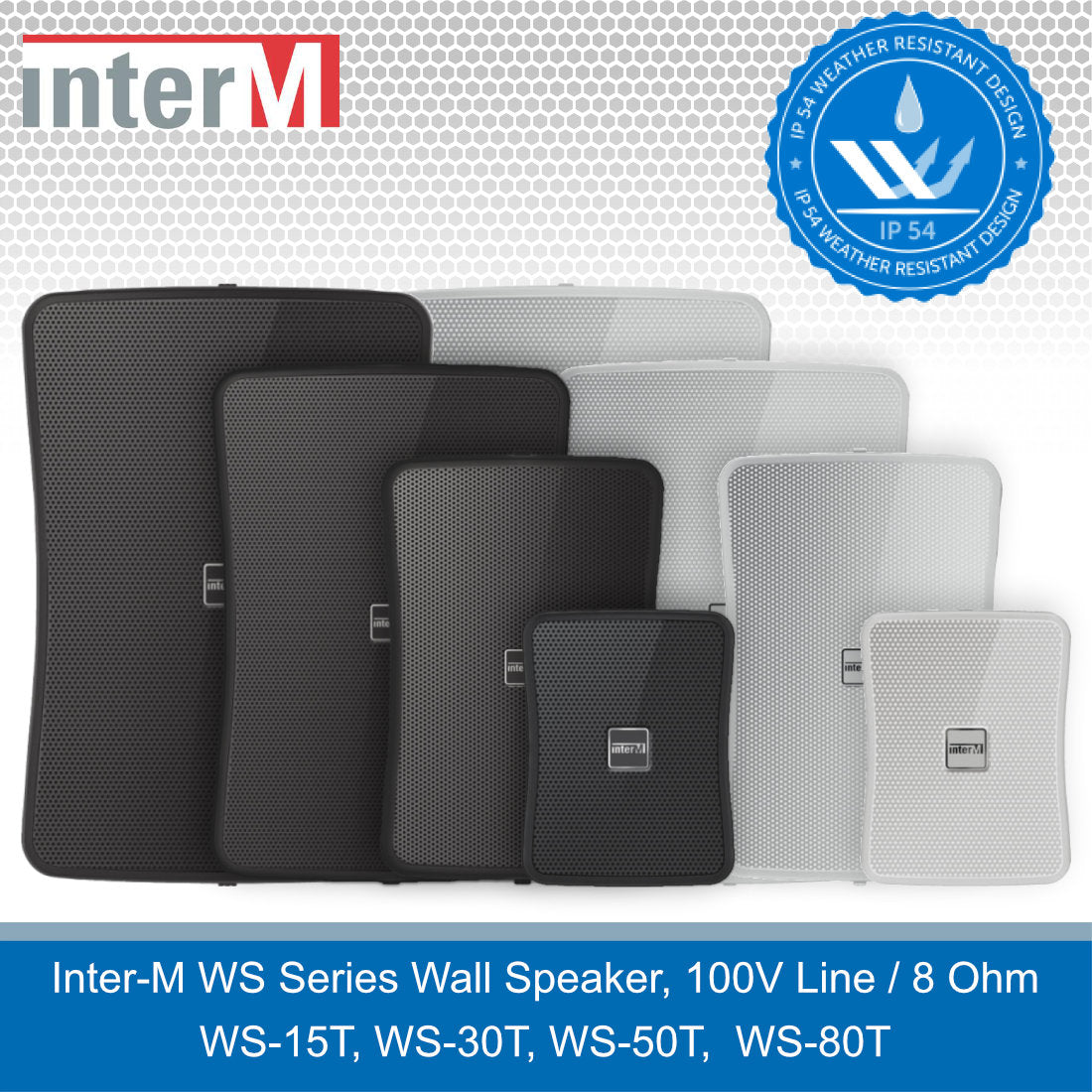

The Inter-M WS Series is composed of 4 models of different sizes and output ranges to suit various purposes. Sizes range from 2.5″, 4″, 5″ and 6.5″ with outputs of 15W, 30W, 50W & 80W. All of the WS Series speakers are available in Black or White.
-

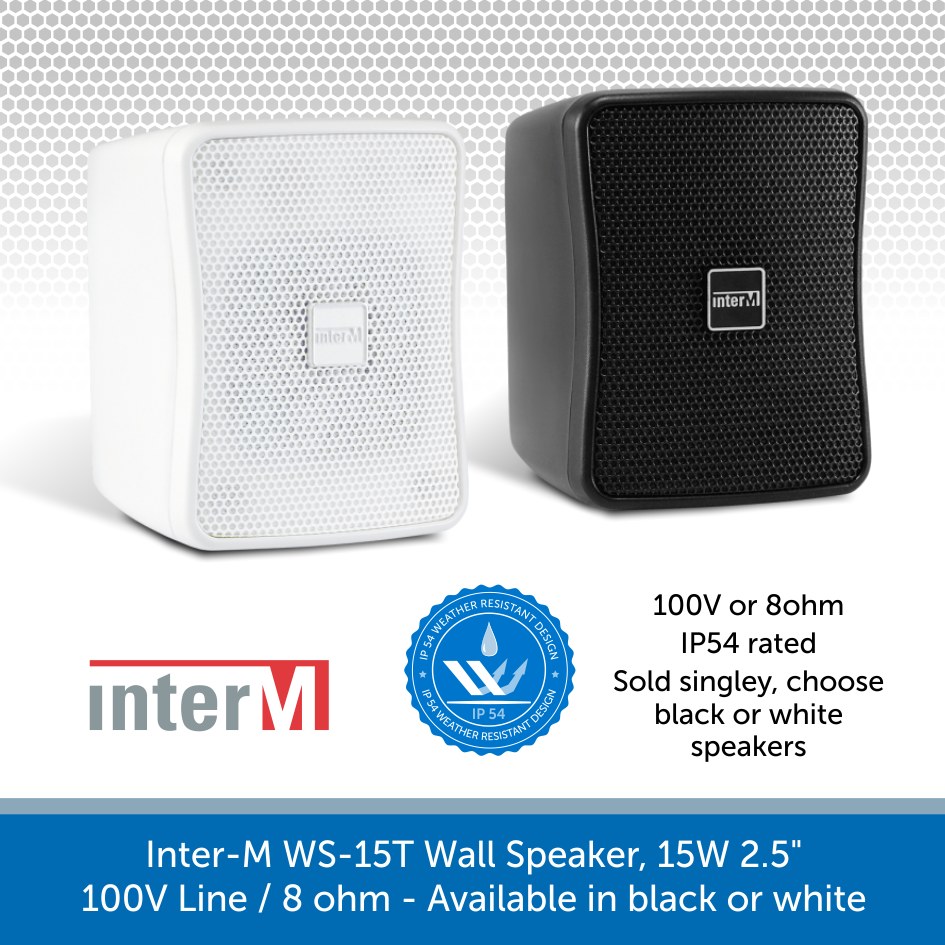

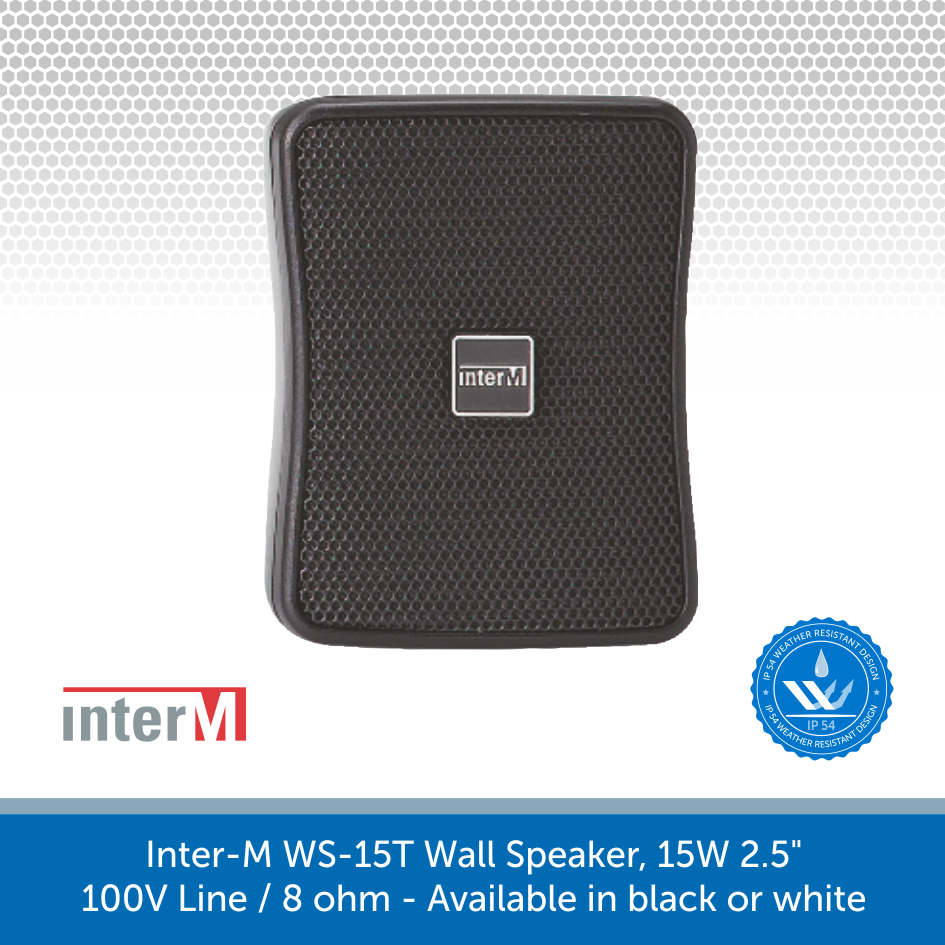

WS15T – Compact 2.5″, 15W Full Range Loudspeaker
-
WS30T – 4″, 30W Two-Way Loudspeaker
-
WS50T – 5″, 50W Two-Way Loudspeaker
-
WS80T – 6.5″, 80W Two-Way Loudspeaker
The Series has been applied with a newly developed Full-Range unit, HF driver and LF driver unit to provide high-power clear sound without distortion.

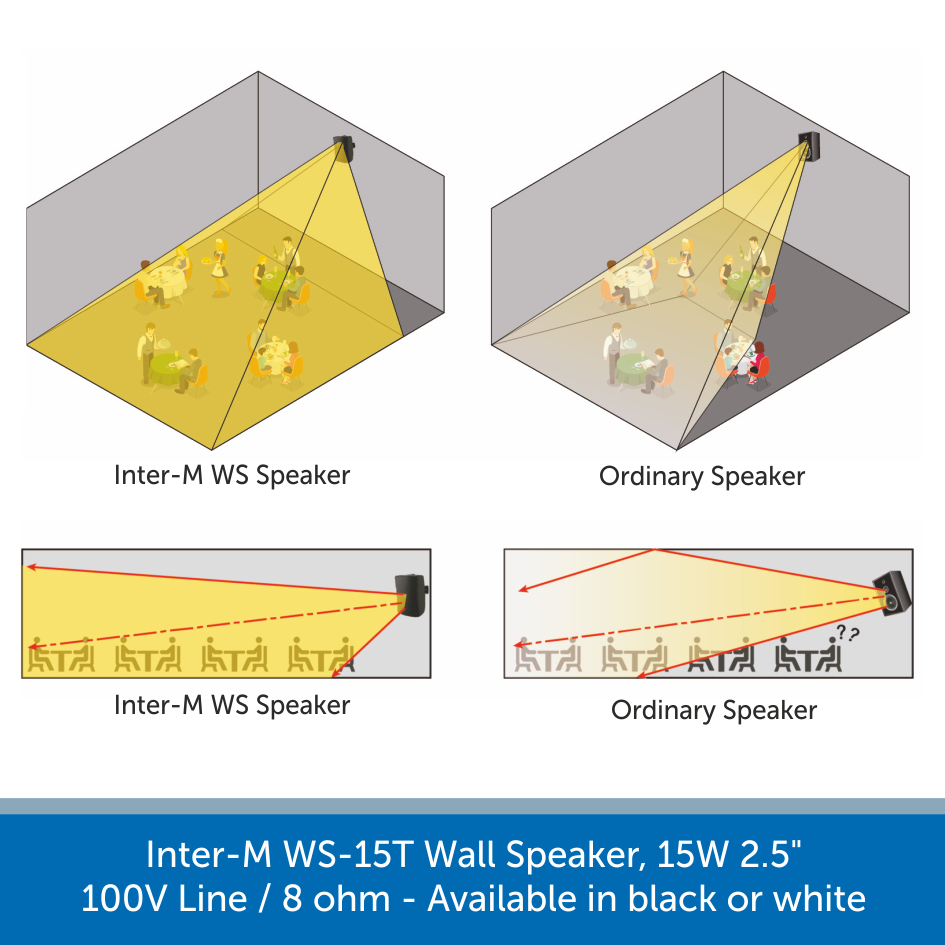

Inter-M WS Speaker Dispersion and Distance. 2-way asymmetric horn technology for an optimised sound system.
The Inter-M WS Series Loudspeakers are IP54 Rated
The Inter-M WS Series Loudspeakers are IP54 Rated so can be installed both indoors and outdoors.
View the Inter-M range of products HERE
See SPECIFICATION tab for technical specs
SPECS & DOWNLOADS
Inter-M WS15T Loudspeaker Specifications
- Type: 1 way passive
- Frequency Range: (-10 dB) 110Hz ~ 20kHz
- Component: 4″
- Power Rating Continuous (AES Std): 15W, Program: 30W, Peak: 60W
- Sensitivity: (1 m/1 W) 84dB
- Maximum SPL: (Peak) 102dB
- Nominal Coverage (1kHz): 90°
- Nominal Impedance: (THRU setting) 8Ω
- 100v Power Tappings: 2/4/8/15
- Low-Frequency Transducer: Paper Cone with impregnation
- Enclosure Material: ABS RESIN
- Connectors: Screw terminal 2P
- Agency Rating: ROHS-compliant
- Weather Resistant: IP54 rating
- Mounting Hardware: KBKT15
- Colour: Black / White
- Dimensions: 120(H) x 92(W) x 114(D) mm
- Weight (Gross): 1.17kg
Inter-M WS30T Loudspeaker Specifications
- Type: 2 way passive
- Frequency Range: (-10 dB) 100Hz ~ 20kHz
- Component LF: 4 inch / HF: VC 13mm
- Power Rating Continuous (AES Std): 30W, Program: 60W, Peak: 120W
- Sensitivity: (1 m/1 W) 85dB
- Maximum SPL: (Peak) 106dB
- Nominal Coverage: (1 kHz) Asymmetric Horn, Horizontal Coverage: Far Field 60°, Near Field 120°, Vertical Coverage: upward +20°, downward -40° (On Axis)
- Nominal Impedance: (THRU setting) 8Ω
- 100v Power Tappings: 1.9/3.8/7.5/15/30W
- Low-Frequency Transducer: Polypropylene Cone (PP cone) High stiffness compare to paper cone, low distortion, flat frequency response, low vibration mode than paper cone
- High Frequency: Transducer Polyethyleneimine (PEI semidome) High frequency extend with diffuser
- Enclosure Material: ABS RESIN
- Connectors: Screw terminal 2P
- Agency Rating: ROHS-compliant
- Weather Resistant: IP54 rating
- Mounting Hardware: UBKT30 / KBKT30
- Colour: Black / White
- Dimensions: 210(H) x 139(W) x 129(D) mm
- Weight (Gross): 2.24kg
Inter-M WS50T Loudspeaker Specifications
- Type: 2 way passive
- Frequency Range: (-10 dB) 100Hz ~ 20kHz
- Component LF: 5 inch / HF: VC 13mm
- Power Rating Continuous (AES Std): 50W, Program: 100W, Peak: 200W
- Sensitivity: (1 m/1 W) 87dB
- Maximum SPL: (Peak) 110dB
- Nominal Coverage: (1 kHz) Asymmetric Horn, Horizontal Coverage : Far Field 60°, Near Field 120°, Vertical Coverage : upward +20°, downward -40° (On Axis)
- Nominal Impedance: (THRU setting) 8Ω
- 100v Power Tappings: 3.3/6.5/13/25/3.3W
- Low Frequency Transducer: Polypropylene Cone (PP cone) High stiffness compare to paper cone, low distortion, flat frequency response, low vibration mode than paper cone
- High Frequency: Transducer Polyethyleneimine (PEI semidome) High frequency extend with diffuser
- Enclosure Material: ABS RESIN
- Connectors: Screw terminal 2P
- Agency Rating: ROHS-compliant
- Weather Resistant: IP54 rating
- Mounting Hardware: UBKT30 / KBKT30
- Colour: Black / White
- Dimensions: 250(H) x 173(W) x 150(D) mm
- Weight (Gross): 3.08kg
Inter-M WS80T Loudspeaker Specifications
- Type: 2 way passive
- Frequency Range: (-10 dB) 100Hz ~ 20kHz
- Component LF: 6.5 inch / HF: VC 13mm
- Power Rating Continuous (AES Std): 80W, Program: 160W, Peak: 320W
- Sensitivity: (1 m/1 W) 90dB
- Maximum SPL: (Peak) 115dB
- Nominal Coverage: (1 kHz) Asymmetric Horn, Horizontal Coverage : Far Field 60°, Near Field 120°, Vertical Coverage : upward +20°, downward -40° (On Axis)
- Nominal Impedance: (THRU setting) 8Ω
- 100v Power Tappings: 5/10/20/40W
- Low Frequency Transducer: Polypropylene Cone (PP cone) High stiffness compare to paper cone, low distortion, flat frequency response, low vibration mode than paper cone
- High Frequency: Transducer Polyethyleneimine (PEI semidome) High frequency extend with diffuser
- Enclosure Material: ABS RESIN
- Connectors: Screw terminal 2P
- Agency Rating: ROHS-compliant
- Weather Resistant: IP54 rating
- Mounting Hardware: UBKT80 / KBKT30
- Colour: Black / White
- Dimensions: 311(H) x 210(W) x 169(D) mm
- Weight (Gross): 4.65kg
Inter-M WS Series Loudspeakers – PDF Download File
Download the WS Series Spec Sheet Here
