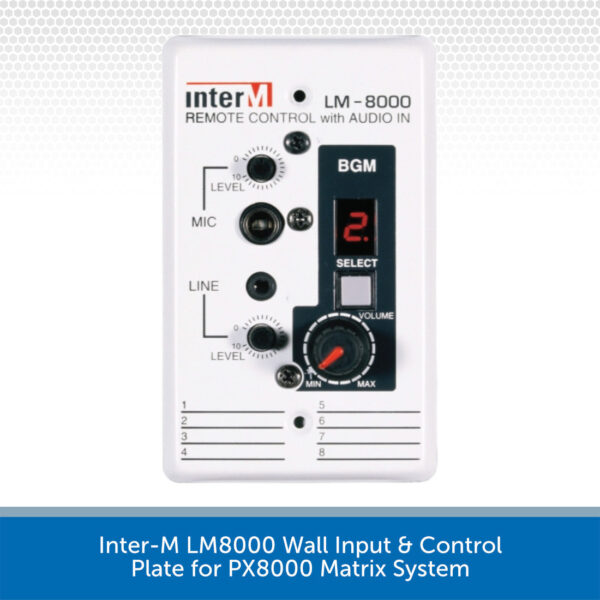

Inter-M LM8000 Wall Input & Control Plate for PX8000 Matrix System
DETAILS
Input & control plate for Inter-M PX8000 Matrix System.
The LM8000 wall plate provides volume and audio source selection from any one of the 8 sources connected to the PX8000 matrix, plus a 3.5mm line input socket and 1/4″ jack microphone input – both with their own volume level control.
The Inter-M LM8000 Wallplate features a Channel LED display, line and Mic. inputs, plus volume level control.
Can be connected to the PX8000 Matrix unit via standard Cat5e/6 cable up to a 300m distance.
Includes PS/LMPLATE faceplate for installation.
Key Features:
- For use with PX8000 8×8 Audio Matrix
- Connectivity via standard Cat5e/6 cable
- Remote Volume Control of Zone
- Selector Switch for choice of 8 audio sources from Matrix
- 3.5mm jack for Remote Line Input
- 1/4 inch jack for Remote Microphone Input
- Level Control for Remote Line & Mic Inputs
- Bright LED display of selected source
- Includes PS/LMPLATE faceplate for installation
See SPECIFICATION tab for technical specs
SPECS & DOWNLOADS
LM8000 Wall Plate
Mic Input: 60dB (Balanced)
Audio Output: 0dB (Balanced)
Maximum Cable Distance: 300 metres
Power Source: Powered from PX8000
Dimensions: 200(W) x 70(H) x 206(D) mm
Weight (Net): 1.40kg
Weight (Gross): 1.92kg
