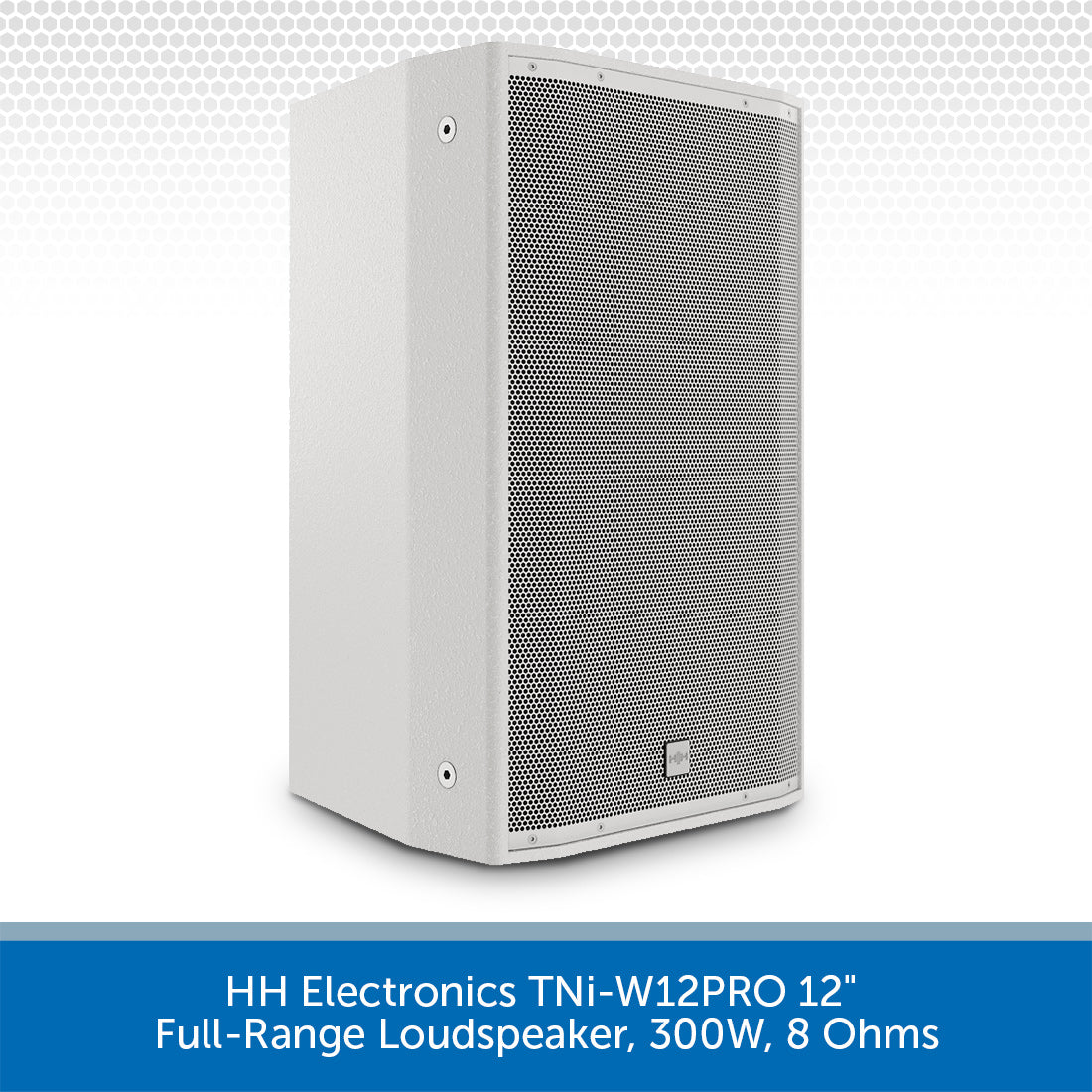

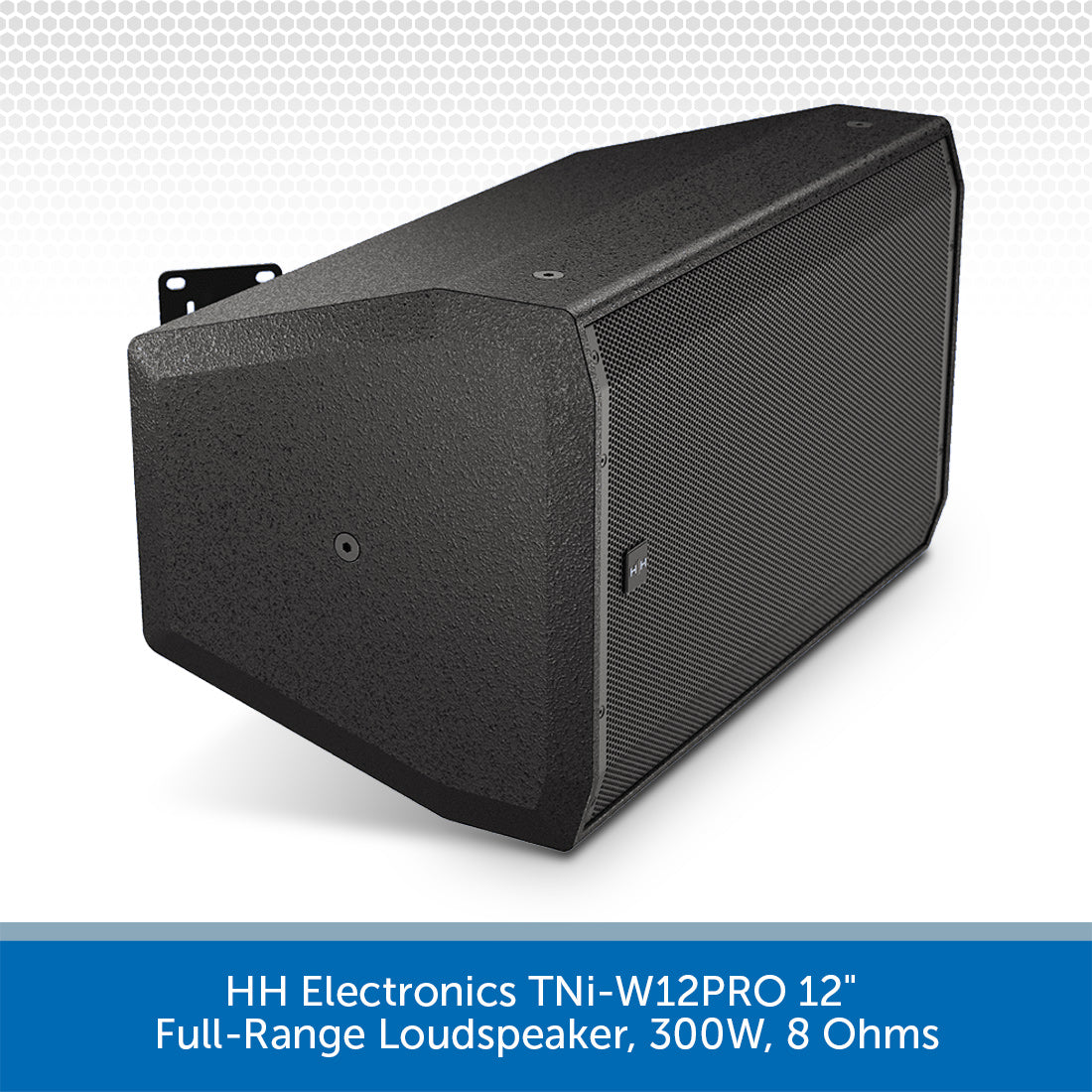

HH Electronics TNi-W12PRO 12″ Full-Range Loudspeaker, 300W, 8 Ohms (Available in Black or White)
DETAILS
The HH Electronics TNi-W12PRO is a professional full-range loudspeaker housed in a wooden cabinet; designed to deliver exceptional audio reproduction in any setting.
The TNi-W8PRO boasts a powerful 12-inch woofer combined with a high-frequency compression driver, providing a wide frequency response and incredible clarity across the entire audible spectrum. From deep, punchy bass to crystal-clear highs, every nuance of your audio is faithfully reproduced, ensuring an immersive listening experience for your audience.
With its elegant wooden cabinet, the TNi-W12PRO seamlessly blends into any commercial environment, be it a restaurant, retail store, corporate office, or entertainment venue. Its unobtrusive design and versatile mounting options allow for easy installation, whether you choose to wall-mount, suspend from the ceiling, or place it on a speaker stand.
Designed to excel in installed audio environments, this exceptional passive loudspeaker combines a robust wooden cabinet with an impressive 300W RMS output on 8 Ohms. Prepare to be captivated by its impeccable frequency response, delivering deep, resonant lows at 50Hz and sparkling highs reaching up to 36kHz. Whether you’re creating an immersive ambience in a restaurant, filling a retail space with energizing music, or ensuring crystal-clear audio for presentations in a conference room, the TNi-W12PRO sets the standard for outstanding sound reproduction.
HH Electronics TNi-W12PRO Key Features:
- Exceptional sound performance with 300W RMS output on 8 Ohms.
- Robust wooden cabinet construction for durability.
- Wide frequency response: 36Hz – 20kHz.
- Versatile mounting options for seamless integration.
- Wide dispersion pattern for consistent audio coverage.
- Convenient connectivity options with Speakon and terminal connectors.
SPECS & DOWNLOADS
Download the HH Electronics TNi-W12PRO PDF Data Sheet HERE >
HH Electronics TNi-W12PRO Specifications
-
System Type: 12-inch 2 way Passive Speaker, Bass Reflex
-
LF Driver: 12-inch HH Designed High Performance Driver, 2.5-inch Voice Coil
-
HF Driver: 1.4-inch Celestion CDX1-1445
- Nominal System Impedance: 8 ohm
-
Power: 300W AES, 600W Continuous, 1200W Peak
-
Recommended Amplifier: 600-1200W @ 8 Ohms
- Sensitivity (1W/1M): 98 dB
-
Max SPL: 123 dB, 129 dB (Peak) (1m)
- Frequency Response (-10): 36 – 20kHz
- Frequency Response (-3): 42 – 18kHz
- Input Link Connector: Euro Block Connector and M4 Barrier Strip Terminal (7.62mm Pitch)
- Horiz. Dispersion Angle 1000Hz: 90°
- Vertical Dispersion Angle 1000Hz: 60°
- Crossover Frequency: 2.2KHz
- Cabinet: Robust all wood construction (15mm plywood)
- Finish: Hard wearing spatter finish (White or Black option)
- Grille: Powder coated steel with acoustic foam backing
- Mounting Bracket: 4x M8 mounting points for optional HH-BRK30
- Mounting Points: 7x M10 Penn-Elcom fly points (3 on top face, 2 on side face, 1 on rear, 1 on bottom)
-
Unit Dimensions (Hwd): 575 x 345 x 337mm, 22.6″ x 13.6″ x 13.3″
-
Unit Weight: 16Kg, 35.3 lbs
-
Carton Dimensions (Hwd): 670 x 440 x 430mm, 26.4″ x 17.3″ x 16.9″ , 0.127 M3
-
Packed Weight: 18Kg, 39.7 lbs
