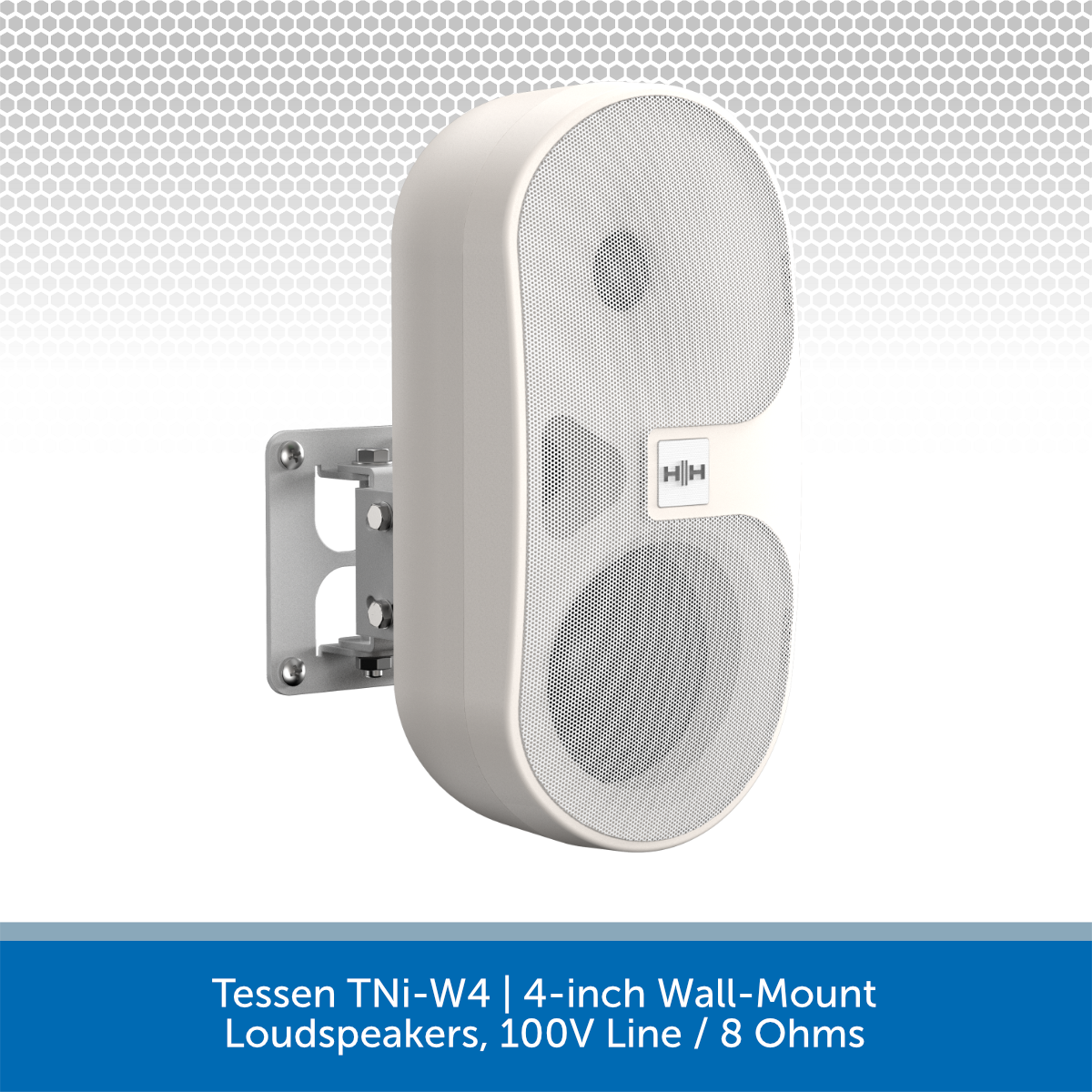

HH Audio, Tessen TNi-W4 | 4-inch Wall Mount Speakers, 100V Line / 8 Ohms
DETAILS
Tessen TNi-W4 wall speaker designed for installs where space is at a premium but a professional audio solution is required.
These UK engineered loudspeakers from HH Audio boast a stylish appearance and deliver a crystal-clear sound for all music applications in cafes, bars, restaurants, retail spaces, etc.
The Tessen TNi-W4 can be used as a 100V Line speaker with power tappings of 30W, 15W, 6W, 3W or as a low impedance speaker on 8 Ohms.
Supplied with a versatile solid-steel bracket that allows the Tessen TNi-W4 speaker to be mounted at multiple angles and titled downwards towards the main listening area for optimised sound quality.
Equipped with euroblock and M4 screw terminals, The TNi-W4 offers a wide array of connections within a single unit.
- UK made loudspeakers by HH Audio
- Compact and punchy performance
- Simple and efficient installation
- Paintable housing
SPECS & DOWNLOADS
Tessen TNi-W4 Specifications
- Model TNi-W4
- System type Passive, 2-way, Bass Reflex
- Woofer Size 4″
- Tweeter Size 1″ Dome Tweeter
- 100V Power Options 30W, 15W, 6W, 3W
- 70V Power Options 15W, 7.5W, 3W, 1.5W
- Low Nominal System Impedance 8 Ohm
- Power Rating 45W AES, 180W Peak
- Recommended Amplifier 80-160W @ 8 Ohms
- Sensitivity 1W/1m 2 88 dB SPL
- Max SPL 1m 111 dB SPL
- Frequency response 80Hz – 20KHz (-10dB)
- Horizontal Dispersion Angle 90°
- Vertical Dispersion Angle 80°
- Main Construction Material ABS Plastic
- Grille Black, Circular Steel Mesh
- Finish Black (White finish optional, subject to MOQ)
- Mounting Bracket Adjustable Steel Bracket included
- Unit dimensions (HWD) 295 x 145 x 222mm, 11.6″ x 5.7″ x 8.7″
- Unit weight 2.8Kg, 6.2 lbs
Tessen TNi-W4 – PDF Downloads
Download the Datasheet HERE
