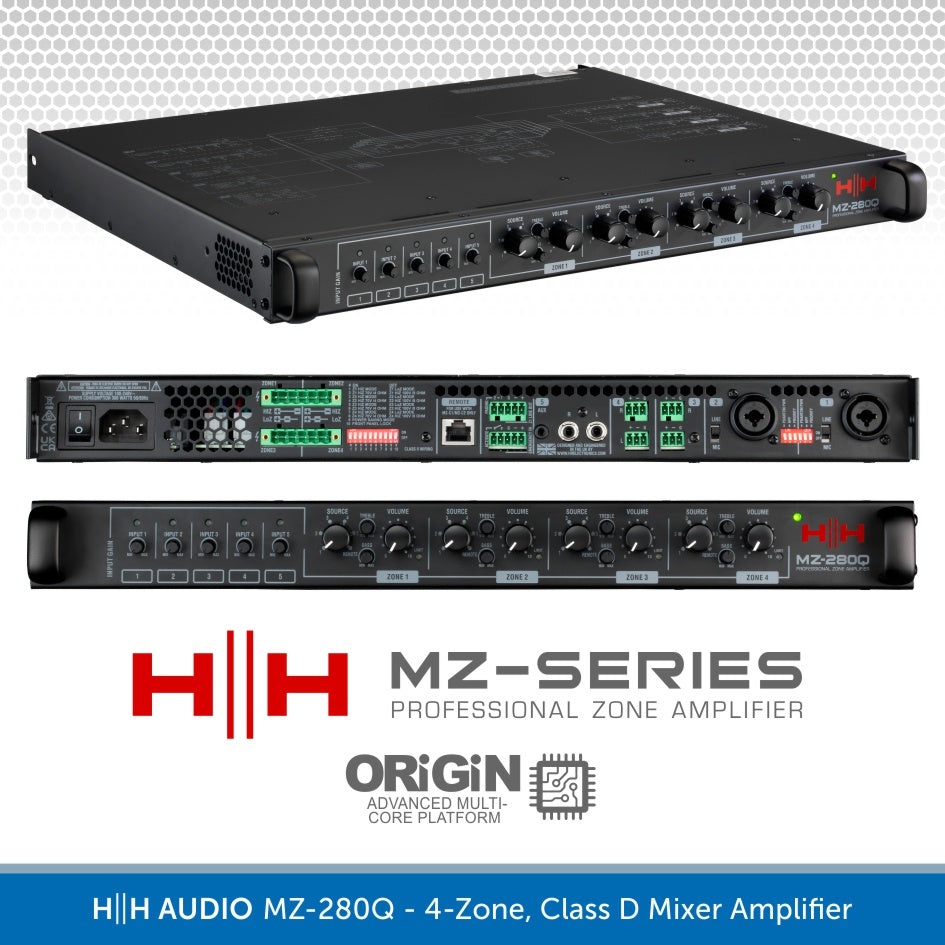

HH Audio MZ-280Q 4-Zone Class D Mixer Amplifier, 4 x 280W, 100V Line/4 Ohm
DETAILS
Introducing the HH Audio MZ-280Q 4-Zone Mixer Amplifier – a professional amplifier designed for a range of sound system installations. With its powerful output, customizable features, and energy-efficient design, it offers exceptional audio performance for any venue or application.
The MZ-280Q features four zones, each with a 280W output, which can be independently controlled and customized according to your audio needs. It provides seamless switching between audio sources, volume control, and 2-band EQ adjustment for each zone. With its flexible configuration, the MZ-280Q can easily handle various audio sources such as microphones, music players, and mixers.
This amplifier is compatible with both 100V line speakers and 4-ohm speakers, which allows for easy integration into your existing sound system. Its Class-D amplification technology ensures high-quality sound with low power consumption, making it an energy-efficient option. Plus, its compact 1U 19″ rack mount housing allows for easy installation and space-saving design.
The MZ-280Q offers five input channels, two of which are switchable mic/line XLR inputs with Phantom Power and optional priority. The other three inputs are line level designed for connecting multimedia players and mixers. This wide range of inputs makes it easy to connect various audio sources for different applications.
For added convenience, customers can purchase the optional MZ-C2 wall mount panels, which provide a local volume control and source selection. This feature makes it easy to control the sound in each zone without having to access the main amplifier.
In conclusion, the HH Audio MZ-280Q 4-Zone Mixer Amplifier is a powerful and versatile solution for any sound system installation. With its customizable features and efficient design, it offers an exceptional audio experience for any venue or application.
HH MZ-280Q Key Features:
- Four independent zones with 280W output each
- Controllable source selection and volume control for each zone
- 2-band EQ adjustment for each zone
- Compatible with 100V line speakers and 4-ohm speakers
- Class-D amplification technology for high-quality sound and low power consumption
- Compact 1U 19″ rack mount housing for easy installation and space-saving design
- Five input channels, including two switchable mic/line XLR inputs with Phantom Power and optional priority, and three line level inputs for multimedia players and mixers
- Optional MZ-C2 wall mount panels for local volume control and source selection.
SPECS & DOWNLOADS
Download the Product Data Sheet HERE >
HH MZ-280Q Specifications
- Type: Zone power amplifier with input routing
- Inputs: CH1/2 balanced XLR/6.3mm jack combi socket, CH3/4 L&R balanced 3.5mm Euroblock, CH5 3.5mm stereo aux and stereo RCA
- Outputs: 4 zone power amp outputs via 5.08mm Euroblock
- Indicators: Power/Standby, Input signal present and peak LEDs, Output signal present and clip LEDs
- Controls: Adjustable gain control for each input; source select and volume control for all zones
- Frequency Response: 20-20kHz ±0.1dBu (LoZ Mode), 80-20kHz ±0.1dBu (HiZ Mode)
- THD+N: <0.01% @0dBu in, mid volume; <0.008% @+6dBu in, maximum volume
- S/N: >110dB
- Noise Floor: < -70dBu (unmuted), < -110dBu (muted)
- Crosstalk: < -95dB between channels, maximum volume
- Emergency Override: Balanced 3.5mm Euroblock connector, overriding the normal inputs
- Lineout: 3.5mm Euroblock line level output that follows zone 1, useful for system expansion
- Other Controls: CH1/2 Mic/line level, phantom power; high and low impedance settings for each zone; power saving mode and front panel lock
- DSP: ORIGIN advanced multicore platform
- EQ: Each zone has bass and treble shelving control with a low pass filter mode; switchable high pass filter on CH1/2
- Power Consumption: 30W Idle, 300W Typical, 650W Max, 0.2W Standby
- Unit Dimensions (Hwd): 44 x 483 x 417 mm (1.7″ x 19″ x 16.4″)
- Unit Weight: 4.9kg, 10.8lbs
- Accessories: Rack mounting kit, Euroblock connectors (4x 3.5mm 3 way, 2x 3.5mm 5 way, 2×5.08mm 6 way), IEC mains lead, HH user manual download card
CASE STUDIES
Check out how the HH Audio MZ-280Q Amplifier was utilized in Zizzi’s Restaurant Paddington Central in our case study > READ HERE
