HH Audio, Aptur APT-W8S | 8″ Passive Installation Subwoofer – 100V & 8 Ohm
DETAILS

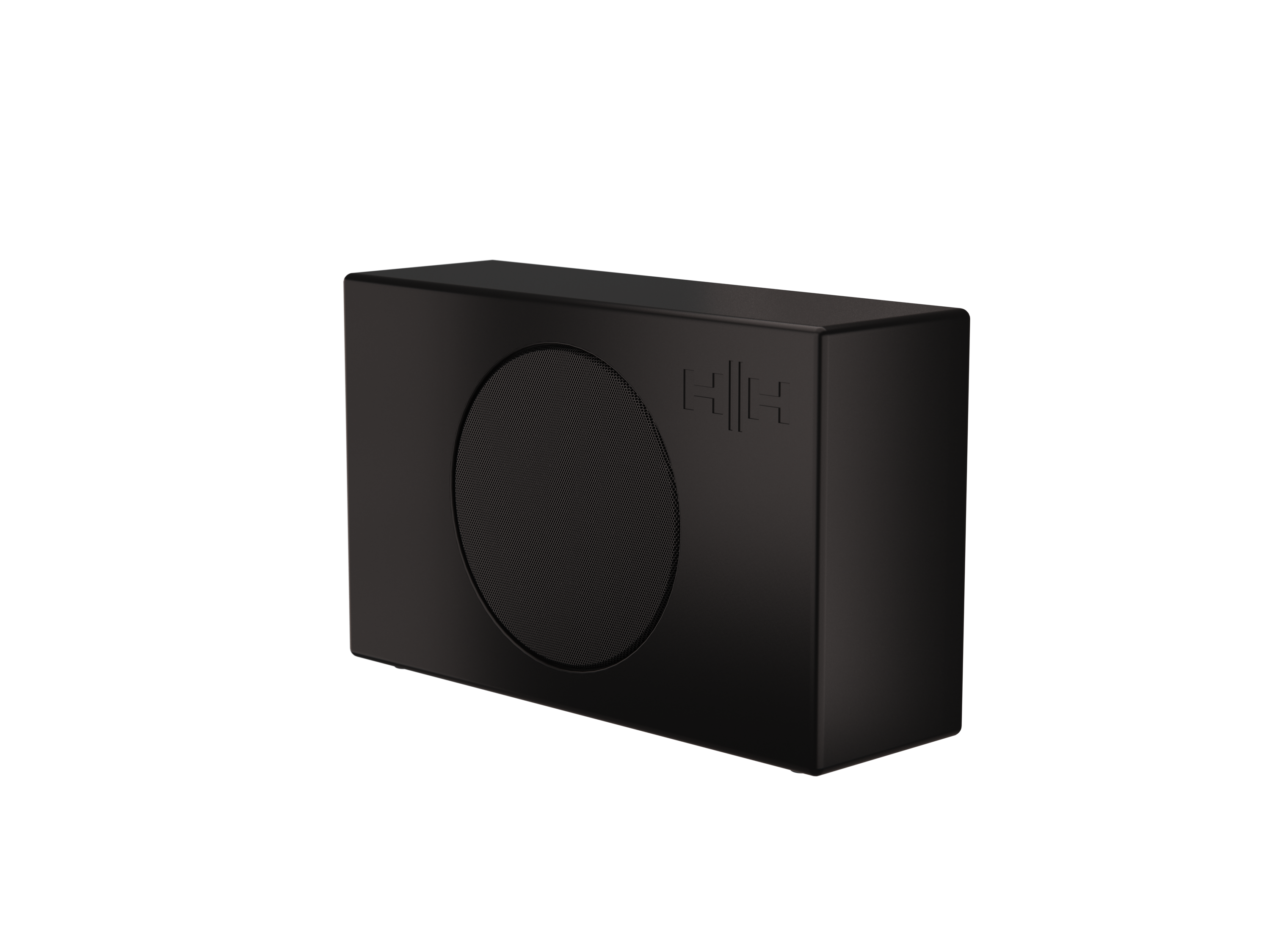

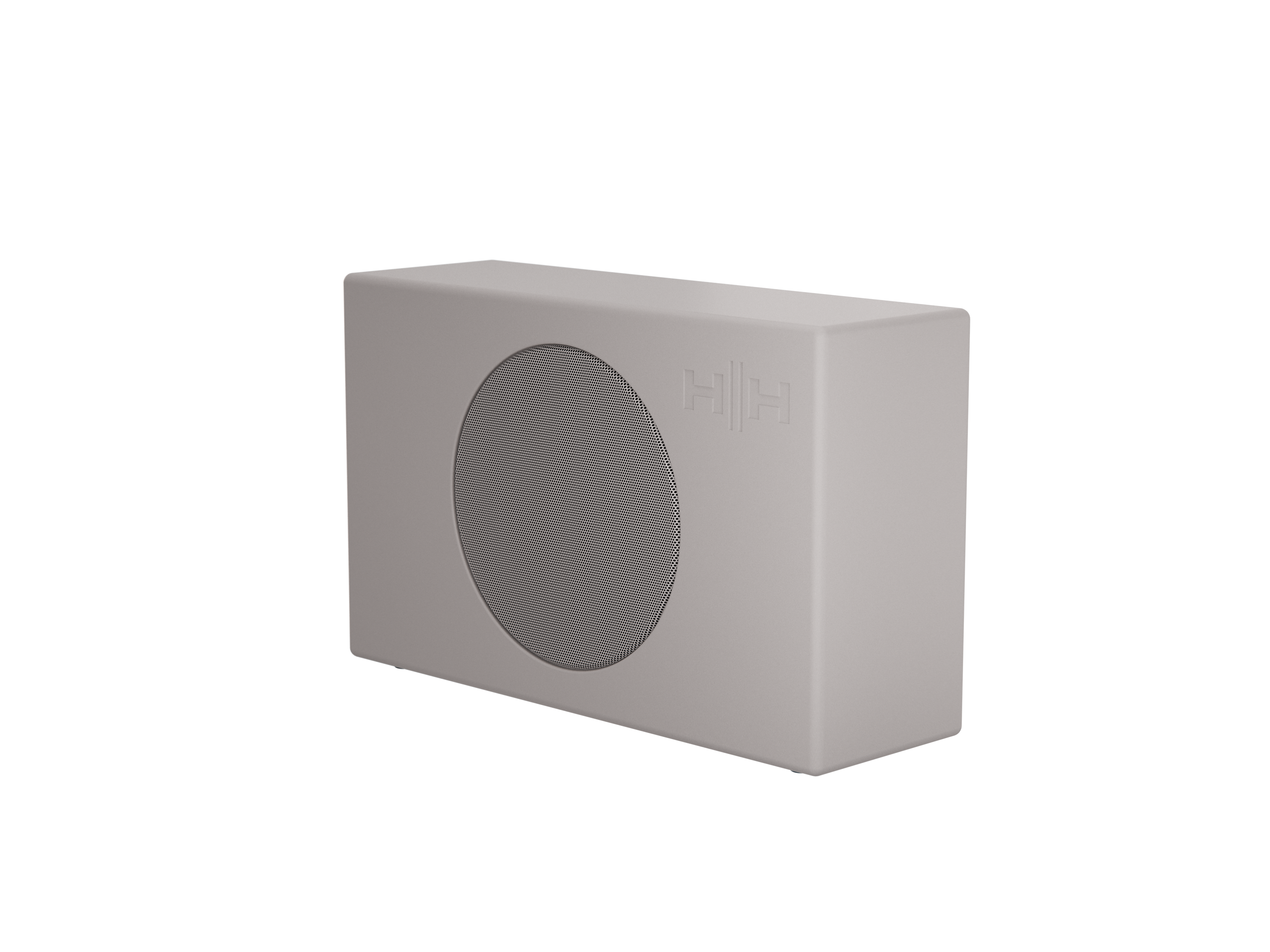

The HH Audio APT-W8S is a slimline 8″ passive installation subwoofer designed to enhance the low-end performance of a wide range of audio systems.
While it seamlessly complements the Aptur range, it can also be integrated with other branded speakers, making it a versatile solution for background music applications in bars, restaurants, cafes, retail spaces, and corporate environments. Available in black or white, it blends effortlessly into any interior.
Featuring a custom-designed HH low-frequency driver, the APT-W8S offers 100W AES power handling with 89dB sensitivity, producing a maximum SPL of 109dB. With a frequency response extending down to 40Hz, it ensures deep, resonant bass reproduction for a well-balanced audio experience. Its integrated multi-tap transformer allows for both low-impedance (8Ω) and 70V/100V operation, offering installation flexibility for a range of audio systems.
The APT-W8S is designed for both aesthetics and practicality, with a slim enclosure that allows for discreet placement. It includes rubber feet for surface isolation and stability, as well as a steel mounting bracket for seamless wall installation. Whether installed visibly or hidden from sight, it provides full-bodied low-end reinforcement with ease.
HH Aptur APT-W8S Key Features:
- 8″ HH-designed low-frequency driver for deep and immersive bass
- 100W AES power handling (200W continuous, 400W peak)
- 89dB sensitivity, delivering a maximum SPL of 109dB (115dB peak)
- Wide frequency response from 40Hz to 200Hz
- Multi-tap transformer for 8Ω, 70V, and 100V operation
- Slimline plywood enclosure with discreet surface mounting options
- Includes steel mounting bracket and rubber feet for flexible installation
- Compatible with both Aptur and third-party speaker systems
- Available in black or white to suit different environments
- Ideal for background music applications in hospitality, retail, and corporate spaces
SPECS & DOWNLOADS
HH Aptur APT-W8S Specifications:
-
System Type: Surface Mount Subwoofer
-
LF Driver: 8-inch HH -Designed Low Frequency Driver
-
100V Power Options: 100W, 50W, 25W, 13W
-
70V Power Options: 100W, 50W, 25W, 13W, 6W
-
Nominal System Impedance: 8 Ohms
-
Power: 100W AES, 200W Continuous, 400W Peak
-
Recommended Amplifier: MZ-140D, MZ-140Q, MZ-280Q
-
Sensitivity (1W/1M): 89dB
-
Max SPL: 109 dB SPL, 115dB SPL (Peak).
-
Frequency Response: 40Hz-200Hz
-
Input Link Connector: 4-pin Euroblock +/- +/-
-
Main Construction Material: Plywood
-
Finish: Black/White Paint
-
Grille: Black Fine Mesh Perforated Steel with Powdercoated Finish
-
Mounting Bracket: Steel surface mount bracket included.
-
Dimensions: With Feet (HWD) – 327mm x 520mm x 175mm Without Feet (HWD) – 320mm x 520mm x 168mm Wall Clearance with Bracket – 10mm
