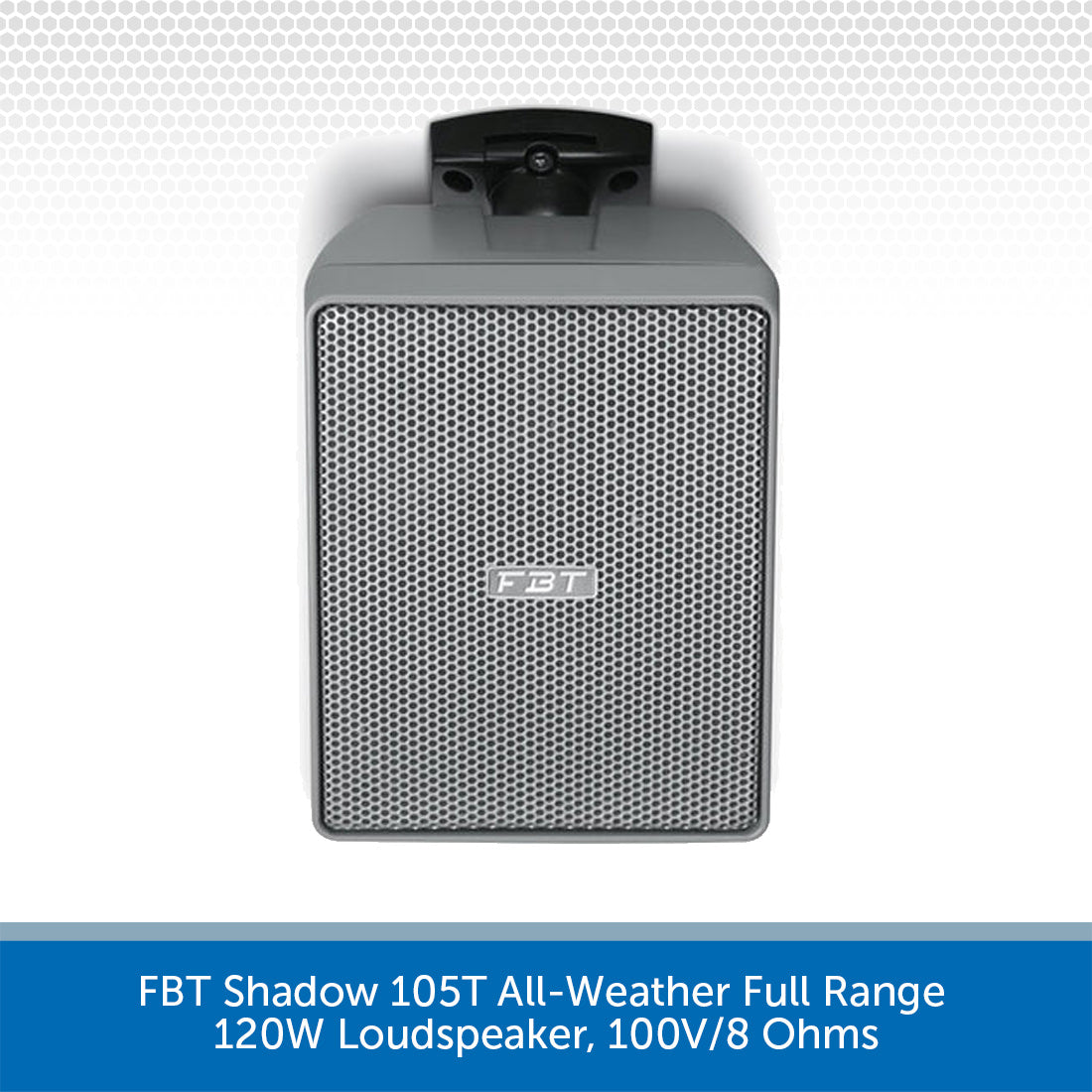

FBT Shadow 105T All-Weather Full Range 120W Loudspeaker, 100V/8 Ohms
DETAILS
The FBT Shadow 105T is an all-weather 2-way full-range loudspeaker designed for a range of foreground PA applications.
Built to provide high quality voice and music performance, the FBT Shadow 105T is a versatile speaker perfect for any indoor or outdoor environment that requires a professional PA solution.
The smallest of the Shadow range, the FBT 105T delivers a punchy 120W @ 8 Ohms with multiple 100V Line power tappings of 15/25/40/50 watts.
Its wide range, smooth frequency response and high efficiency ensure high-quality music reproduction and make the FBT 105T suitable for a variety of applications, such as athletic fields or arenas, amusement parks, swimming pools and in general for outdoor background music and paging systems.
FBT Shadow 105T Key Features:
- 2 way configuration with an high power 5” cone and 1” dome for high frequencies
- 100V line transformer with selectable 50W/25W power tapping
- Die-cast aluminum wall bracket with ball/socket for multi angle adjustment capability, with a security cable
- 4 wires cable to select the desired power tapping

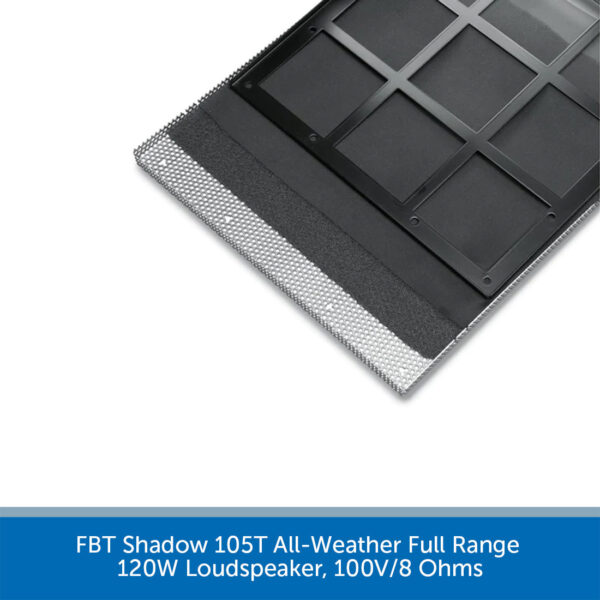

- Water-stop grill with 3 layers of protection
- IP55 weather resistant
- Standard grey finish
- RAL 7011
Typical Applications:
- Convention centers
- Athletic fields
- Stadiums
- Theme parks
- Swimming pools
- Cruise ships
- Malls
- Ballrooms
- Outdoor background music
SPECS & DOWNLOADS
Download the FBT Shadow 105T PDF Data Sheet HERE >
Download the FBT Shadow 105T PDF User Manual HERE >
FBT Shadow 105T Specifications
- Configuration: 2 Way
- Frequency response: 90Hz – 20kHz
- Low frequency woofer: 5″ with 1″ VC
- High frequency driver: 1″ Dome Tweeter
- Maximum SPL cont/peak: 109 / 112dB
- Dispersion: 100 (H x V)
- Input impedance: 8 Ohm
- Crossover frequency: 3kHz
- Input connector: 4 Wire Cable
- Net Dimension (WxHxD): 168 x 222 x 200mm
- Net Weight: 3.5kg
- Transport Dimension (WxHxD): 250 x 300 x 280mm
- Transport Weight: 4.5kg
