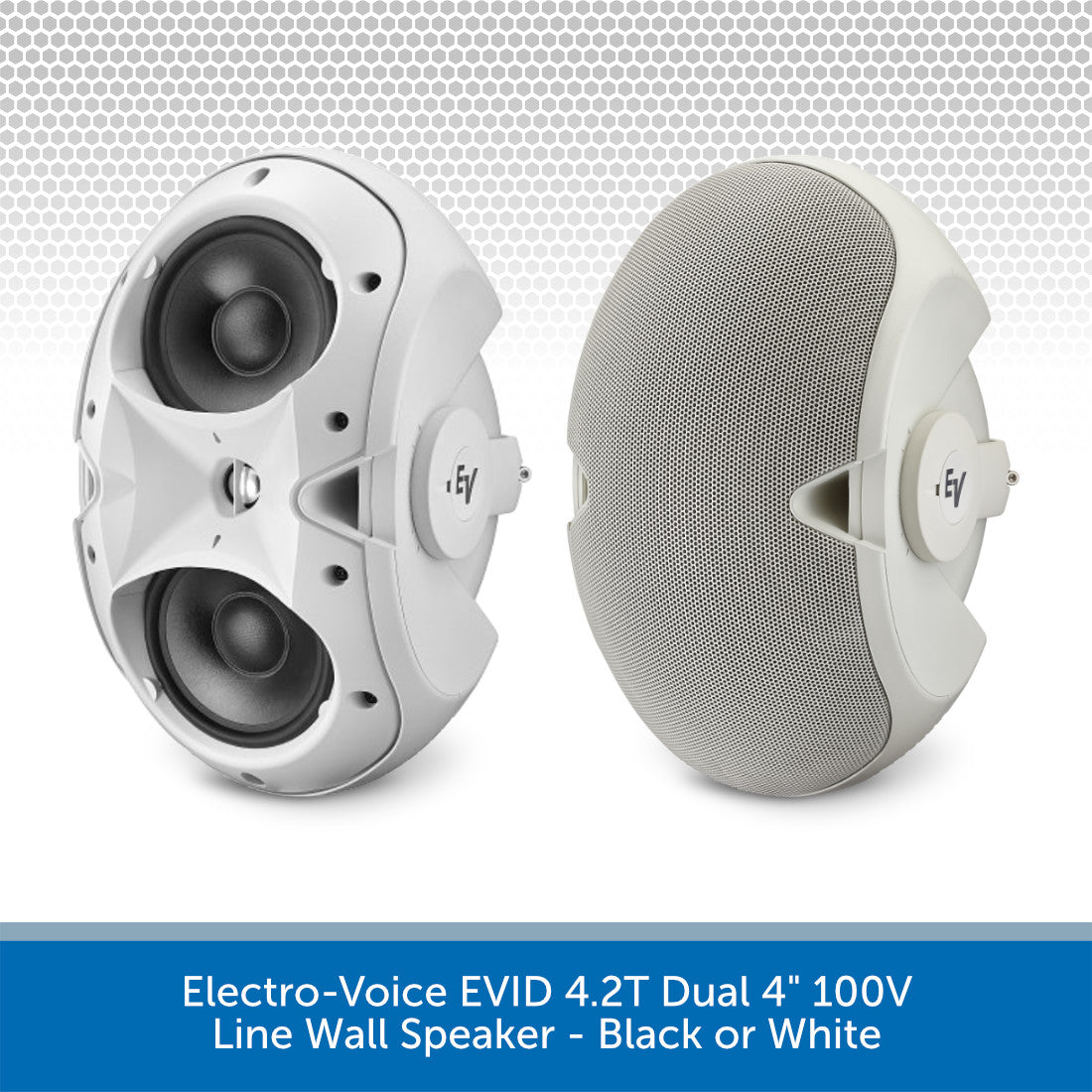

Electro-Voice EVID 4.2T Dual 4″ 100V Line Wall Speaker – Black or White

DETAILS

Electro-Voice EVID 4.2T wall speakers are a great choice for music and speech and provide excellent sound quality across a full frequency range.

The Electro-Voice EVID 4.2T is a compact full-range speaker designed to deliver exceptional sound quality in various settings. It’s ideal for restaurants, bars, mosques, and retail environments, providing a seamless audio experience.

Equipped with a vented LF enclosure, the EVID 4.2T ensures optimal bass response, enhancing the overall audio performance. The 1-inch titanium diaphragm HF driver with a neodymium magnetic structure delivers clear and crisp high-frequency sounds, adding depth to your audio.

The EVID 4.2T feature full-bandwidth overload protection for both the LF and HF components, ensuring reliable performance and safeguarding against excessive power, and the IP35 elliptical weather-resistant ABS enclosure makes them suitable for outdoor use in conjunction with the outdoor cover (sold separately).

Additionally, they are magnetically shielded, making them ideal for video applications without any interference.

The EVID 4.2T comes in black or white and can be painted to match the decor.

Key Features:

• Compact full range

• Ideal for restaurants, bars, patios, and retail

• Vented LF enclosure

• 1-inch titanium diaphragm HF driver with neodymium magnetic structure

• Coherent Coverage Waveguide

• Full-bandwidth overload protection (LF and HF)

• Elliptical weather-resistant ABS enclosure

• Paintable black or white finish

• Magnetically shielded for video applications

• Strong-Arm Mount for easy, flexible aiming

• “T” version for 70 or 100 V distributed systems

See SPECIFICATION tab for technical specs

SPECS & DOWNLOADS

Electro-Voice EVID 4.2T Specifications

• Impedance: 8 ohms
• Frequency Response: (-10 dB) 65Hz – 20kH
• Power Handling: 200W Cont. Prog./400W Peak
• Max SPL: 113 dB
• Horizontal Coverage 4: 120°
• Vertical Coverage 4: 80°
• Crossover Frequency: 2.2 kHz
• LF Transducer: 2 x 4″ (100 mm)
• HF Transducer: 1″ (25 mm)
• Protection: Full System
• Weather Resistance: Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings
• Swing x Rotation: 100° x 90°
• Terminals: Phoenix Connector
• Enclosure Material: ABS (paintable)
• “t” Version Wattage Taps:
  • 70V: 3.75 W
  • 70V/100V: 7.5W, 15W, 30W, 8 ohm bypass
• Dim (H x W x D): 12.2″ x 6.9″ x 8.5″ (234 mm x 127 mm x 165 mm)
• Net Weight (each): 8.5 lbs (3.9 kg)
• Shipping Weight (pair): 19 lbs (8.6 kg)
• Included Accessories: SAM™, hex key

Electro-Voice EVID 4.2T File Download

Download the user manual here
