CYP HDBaseT LITE – HDMI over CAT5e/6/7 Transmitter PU-515PL-TX
DETAILS

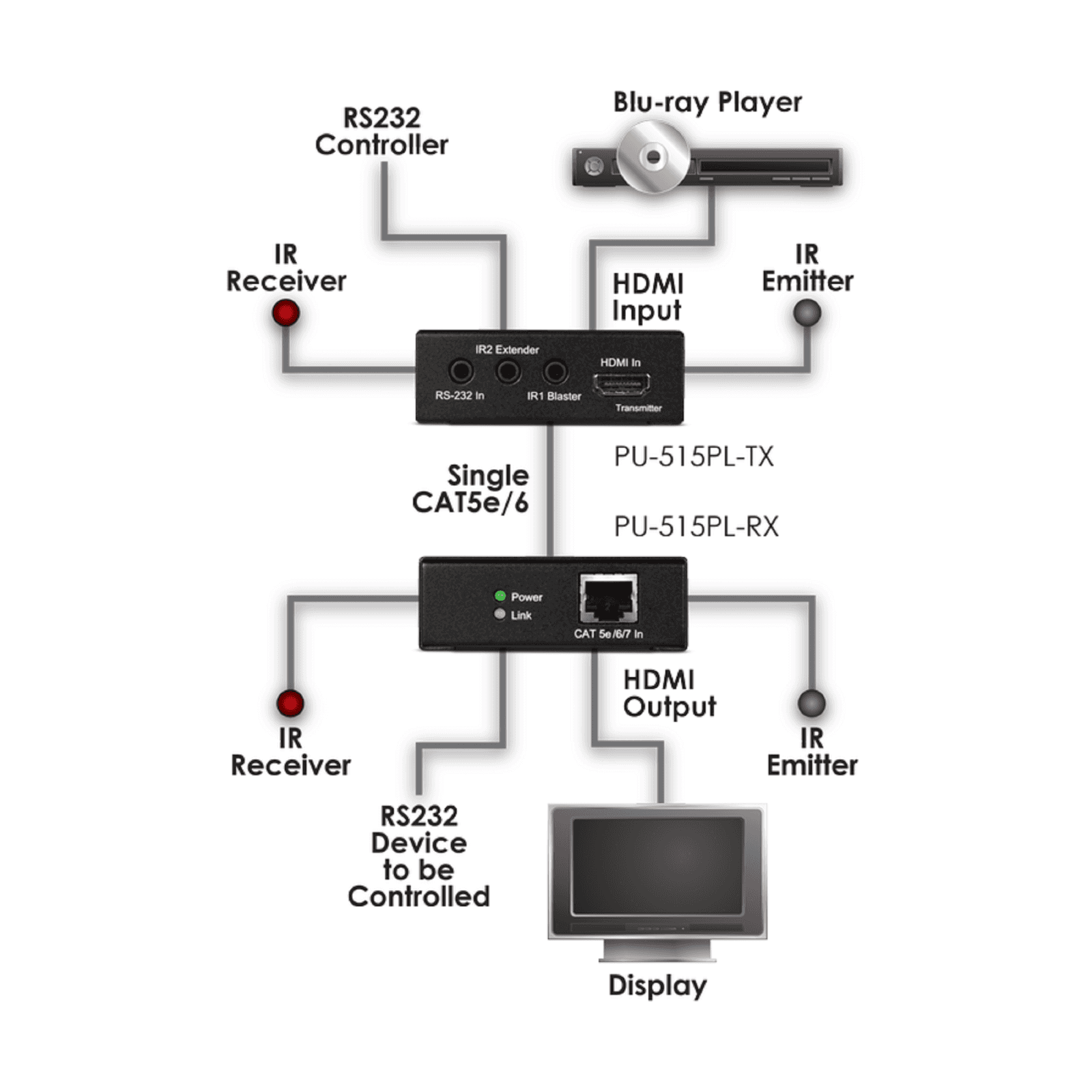

The PU-515PL-TX Transmitter allows uncompressed HDMI signals to be transmitted over a Single CAT5e/6/7 cable.
This transmitter is to be used with the CYP PU-515PL-RX LITE Receiver.
The PU-515PL-TX has the added features of RS-232, 2-way IR control, and Power over Cable (PoC) functionality over the same CAT5e/6/7 cable.
These combined HDMI and control signals can be transmitted up to lengths of 60 metres.
CYP PU-515PL-TX Key Features
-
HDCP 2.2 Compliant
-
HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant
-
Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m
-
4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 40m via CAT6a/7
-
Complies with HDBaseT™- Lite specifications
SPECS & DOWNLOADS
- Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver], 1x 3.5mm Stereo mini-jack [1x RS-232]
- Outputs: 1x RJ45 [1x HDBaseT Lite HDMI & Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- PSU: 24V/1.25A
- Dimensions: 75mm [W] x 72mm [D] x 24mm [H]
- Net Weight: 440g
- Gross Weight: 510g
