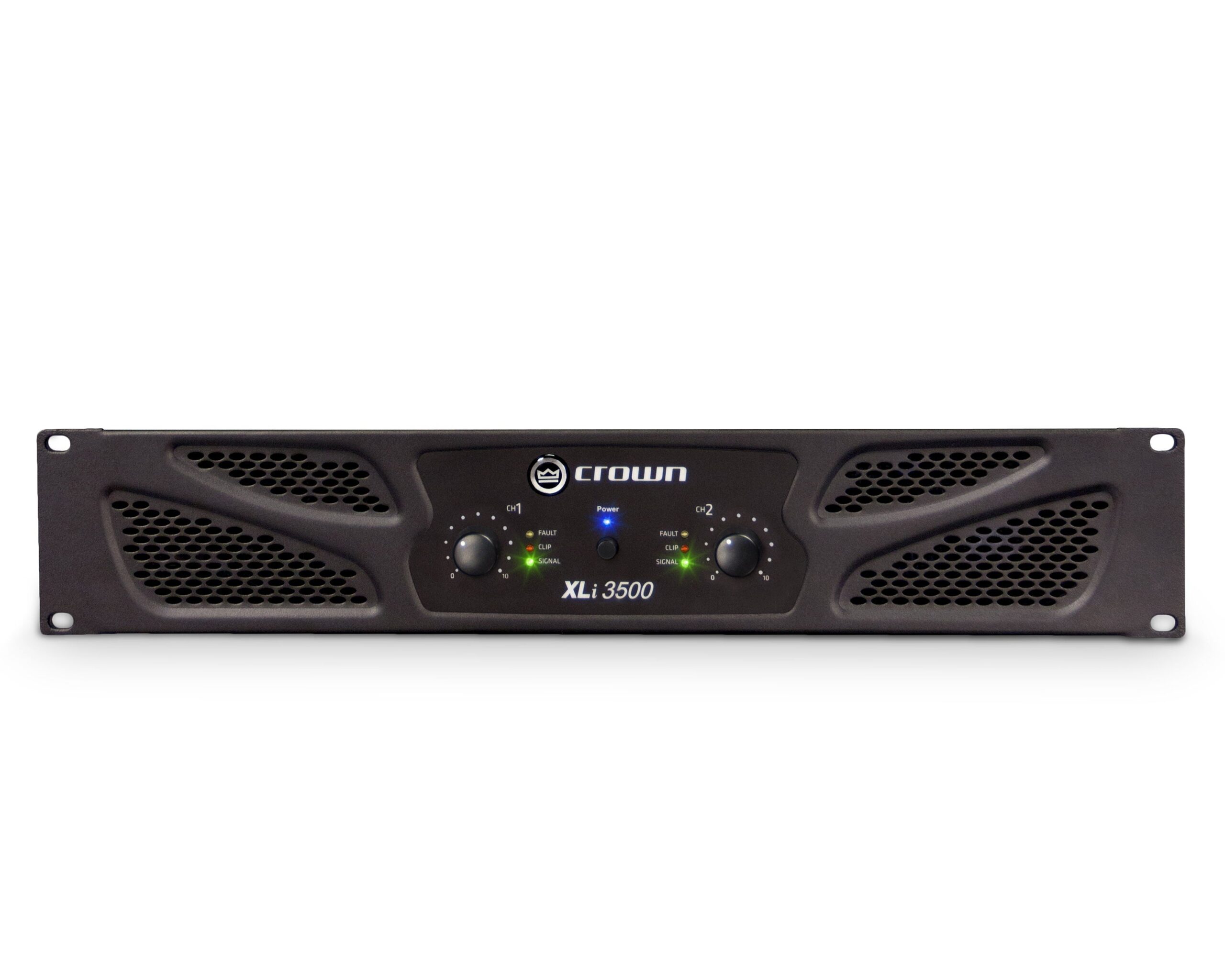

Crown XLi 3500 Power Amplifier, 2 x 1350W @ 4 Ohms
DETAILS
The Crown XLi 3500 is a high-quality 2 x 1350W power amplifier designed for live sound reinforcement, DJs and fixed audio installations in bars, clubs & gyms.
The XLi3500 delivers a powerful performance with its ability to deliver up to 1350 watts per channel at 4 ohms and 1000 watts per channel at 8 ohms. It can also be bridged at 8 Ohms for a single 2700 watt output.
Equipped with Class-D technology, the XLi 3500 is highly efficient and reduces the need for a large heat sink, making it lightweight and easy to transport. This also reduces power consumption, making it environmentally friendly.

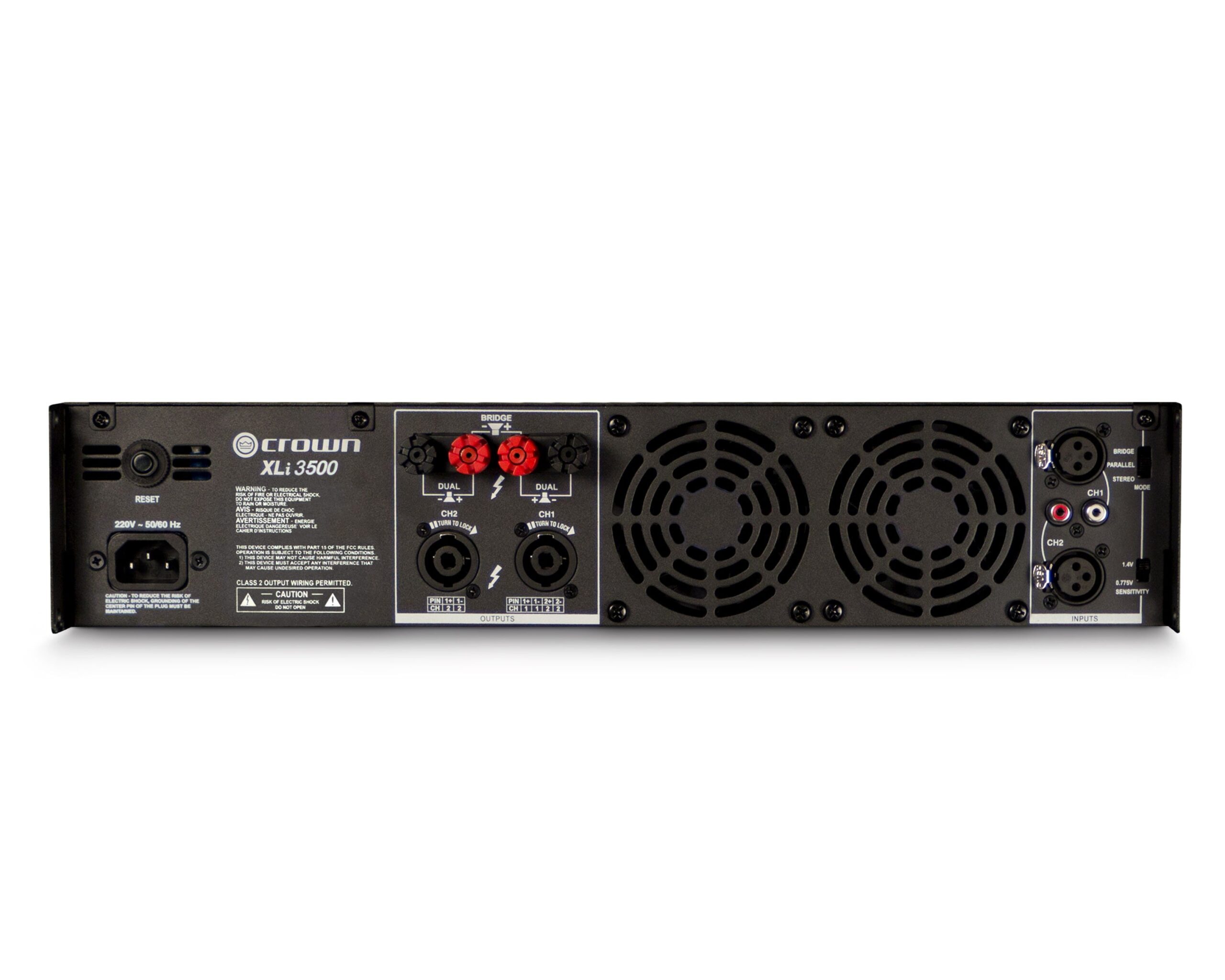

In terms of connectivity, the XLi 3500 includes balanced XLR and RCA inputs for connecting external audio equipment such as a mixer or crossover. It also features Speakon and binding post outputs for connecting speakers.
The XLi3500 is designed with protection circuitry to ensure reliable and safe operation, including protection against short circuits, thermal overload, and DC offset. The amplifier also has a built-in fan to keep it cool during extended use.
The XLi3500 has intuitive controls, including level controls, a power switch, and LED indicators for power, clip, and protection status.
In conclusion, the Crown XLi3500 Power Amplifier is a high-quality and versatile amplifier that is designed for professionals in the sound reinforcement industry. With its powerful performance, flexible connectivity, and protection circuitry, it is an ideal choice for a range of applications.
Crown XLi 3500 Key Features:
- Stereo/parallel/bridge-mono mode
- User selectable input sensitivity – 0.775V and 1.4V
- Electronically balanced RCA & XLR inputs; binding post and Speakon outputs
- Efficient forced-air cooling prevents excessive thermal buildup
- Electronically balanced RCA & XLR inputs; binding post and Speakon outputs
- Two level controls, power switch, power LED, and six LEDs which indicate signal presence, clip and fault for each channel
- Protection against shorts, no-load, on/off thumps and radio-frequency interference
SPECS & DOWNLOADS
Crown XLi 3500 Specifications
- 4-ohm Dual (per ch.): 1350W
- 8-ohm Dual (per ch.): 1000W
- 8-ohm Bridge-Mono: 2700W
- Channels: 2
- Sensitivity (full rated power at 8 ohms): 0.775V or 1.4V
- Signal to noise ratio (below rated power 20Hz to 20kHz, A-Weighted): >100dB
- Total Harmonic Distortion (THD) (20Hz-20kHz): <0.5%
- Inter Modulation Distortion (60Hz and 7kHz at 4:1 form full rated output to -40dB): =/<0.35%
- Frequency response (at 1W, 20Hz-20kHz): 0dB, -1dB
- Crosstalk (below rated power) (at 1kHz): –75dB, (at 20kHz): -59dB
- Damping factor (from 10Hz to 400Hz at 8 ohms): >200
- AC line voltage and frequency configurations (± 10%): (120VAC) 60Hz, (220VAC) 50/60Hz, (230-240VAC) 50/60Hz
- Height: 3.5″
- Width: 19″
- Depth: 14.4″
- Weight: 19.5kg
Crown XLi 3500 – PDF Downloads
Download the User Manual HERE >
