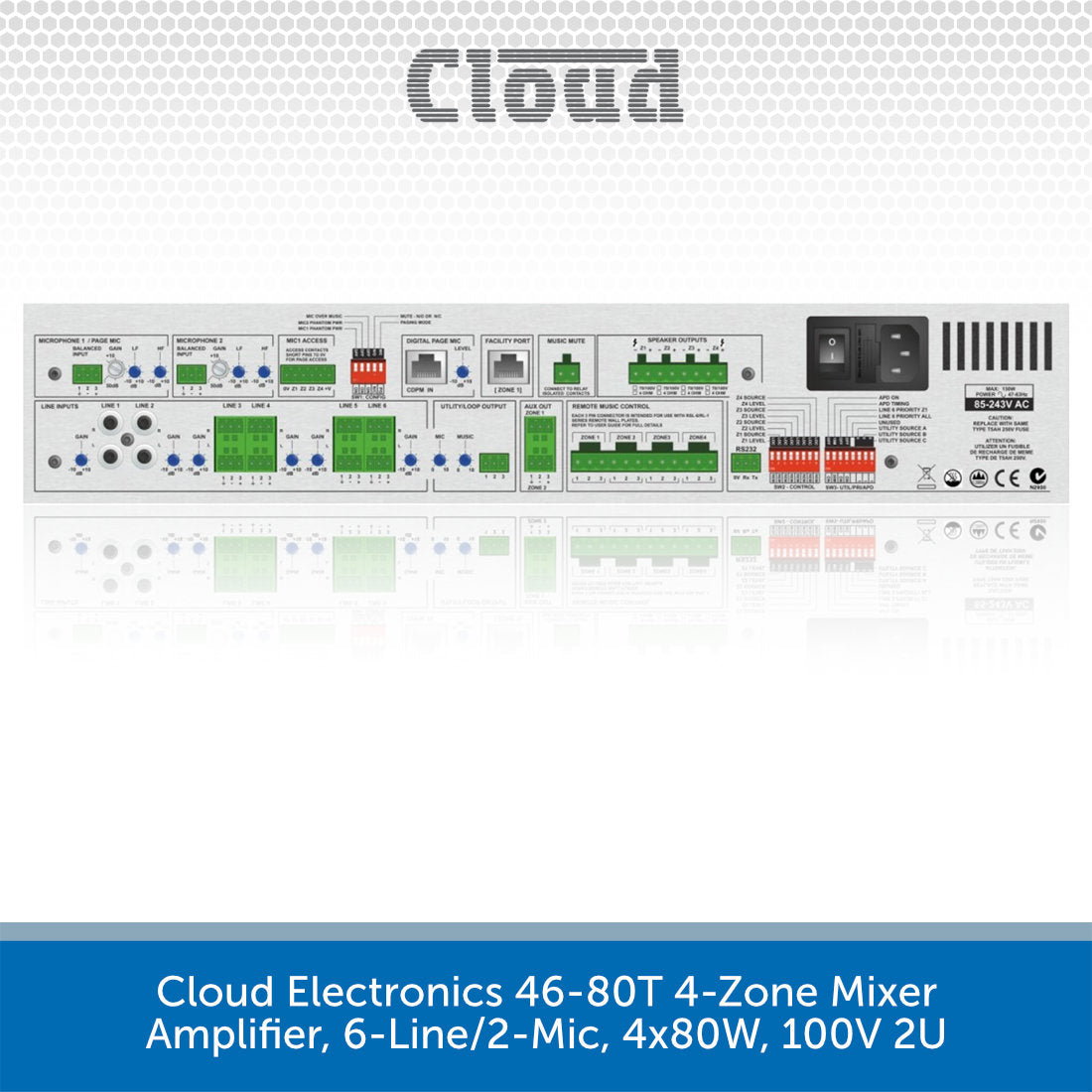

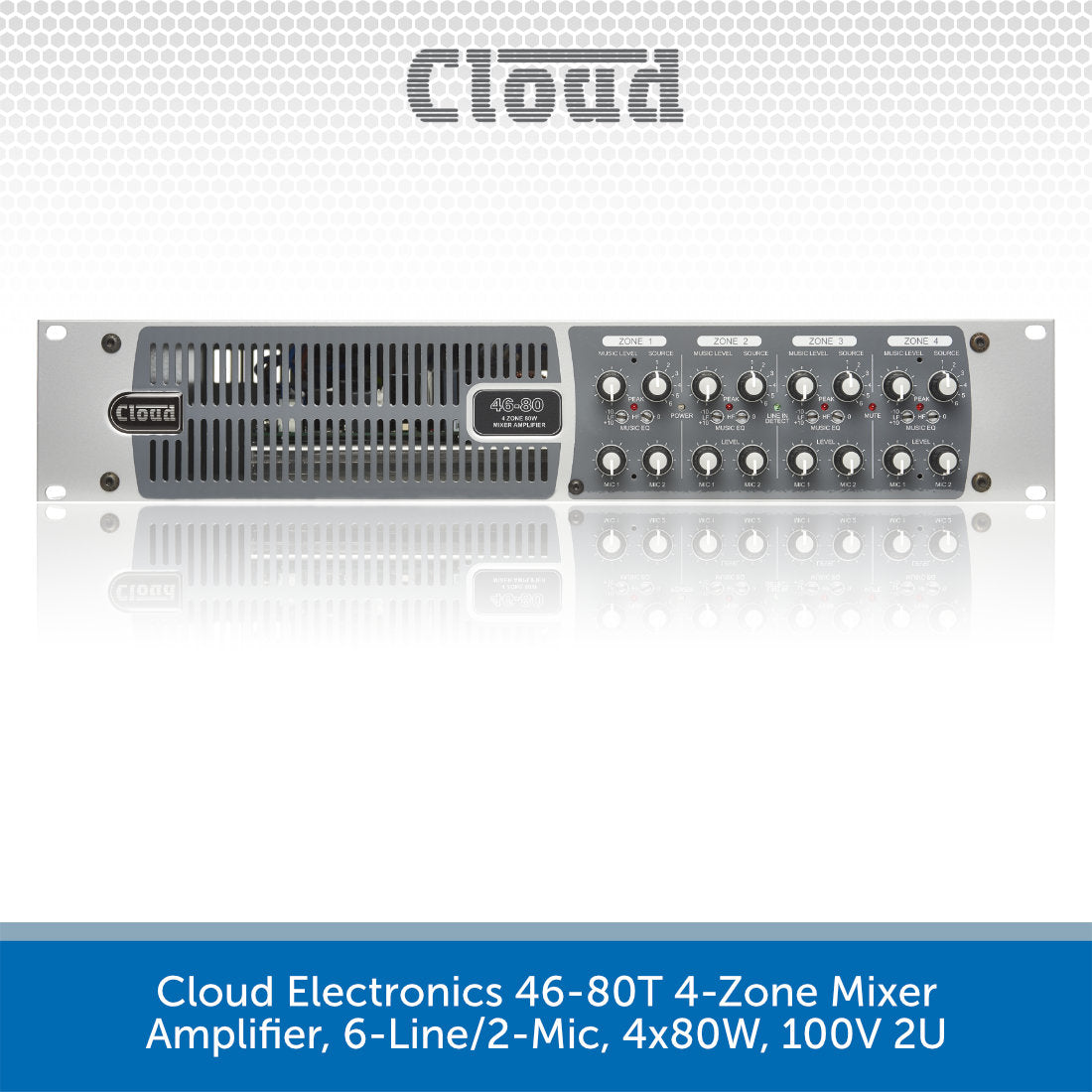

Cloud Electronics 46-80T 4-Zone Mixer Amplifier, 6-Line/2-Mic, 4x80W, 100V 2U

DETAILS

The Cloud 46-80T is a versatile, four-zone, rack-mounting (2U) audio mixing amplifier. It combines simple control of background music, microphone paging and power amplification for up to four zones in a single unit. It has extensive remote control facilities and is ideal for installation in premises such as pubs, bars, hotels, clubs, leisure and fitness centres, retail and other commercial premises, etc.

The 46-80 has four mono zone outputs, each driven by an 80 W (nominal rating) power amplifier stage: if less than four separate zones are required, the power stages may be paralleled by moving internal jumpers to permit dual stereo, quad mono or stereo + dual mono operation, with accordingly increased output power. The power stages have extensive protection circuitry to safeguard both the amplifier and loudspeakers.

Cloud Electronics 46-80T Key Features:

• Eight input (6 x line, 2 x mic) mixing amplifier for four zones
• 4 x 80 W power output, 70/100 V-line version also available (46-80T)
• CXL-80T 70/100 V-line transformers may be retrofitted per-channel to 46-80
• Slave mode: power amplifier stages may be paralleled in various configurations and fed from x single programme source
• Peak limiter to protect power amplifier stages and loudspeakers
• Utility/Loop output with independent mic/music mix and user-definable music source
• Balanced, line level aux outputs (pre-power stage) from Zones 1 and 2
• Four balanced and two unbalanced stereo line inputs with individual gain trim controls
• Two balanced mic inputs; 15 V phantom power selectable on either or both
• Zone 1 Facility Port for connection of optional remote input plates: LM-2 mic/line input + music controls, BT-1 Bluetooth input, L-1 line input, M-1 mic input
• Music Mute control input (N/O or N/C) for emergency alarm system
• Compatible with standard Cloud remote control panels: RL Series (music level) and RSL Series (music level and source selection), per-zone
• RS-232 port for serial control of per-Zone MIC 1 muting, music level and source plus global unit standby, Music Mute and MIC 2 muting
• User–selectable Automatic Power Down for maximum energy efficiency
• Convection-cooled (no fan): silent in operation

SPECS & DOWNLOADS

Cloud Electronics 46-80T Specifications

Line Inputs

• Frequency response:  20 Hz to 20 kHz +0/-0.5 dB
• THD + N:  0.04% @ 1 kHz; 22 kHz bandwidth
• Sensitivity:  195 mV (-12 dBu) to 2.0V (+8 dBu)
• Input Gain control:  20 dB range
• Input impedance:  47 kohms
• Headroom:  17 dB
• Noise:  -90 dB rms; 22 kHz bandwidth
• Equalisation:  HF:±10 dB @10 kHz; LF:±10dB @ 50 Hz

Microphone Input

• Frequency response:  100 Hz -3 dB (fixed filter) to 20 kHz ±1 dB
• Distortion:  <0.03% @ 1 kHz, 80 kHz bandwidth
• Gain range:  10 dB to 50 dB
• Common Mode Rejection:  70 dB typical
• Input Impedance:  3.3 kohms (balanced)
• Headroom : 17 dB
• Noise:  -127 dB EIN 22 Hz – 22 kHz (Rs = 150 ohms)
• Equalisation:  HF:±10 dB @ 5 kHz LF:±10 dB @100 Hz

Main Outputs

• Low Impedance Outputs
  • 4 ohm load:  120 W (170 W one channel driven) @ 1 kHz & 0.1% THD+N
  • 8 ohm load:  85 W (100 W one channel driven) @ 1 kHz & 0.1%THD+N
  • Frequency response:  -1 dB @ 20 kHz,-0.5 dB @ 20 kHz
  • Distortion:  <0.04% @ 1 kHz, 80 kHz bandwidth
• 70/100V-line output*
  • Min. load
  • 70V balanced – 42 ohm min. load
  • 100V balanced – 83 ohm min. load
  • Frequency response:  -3 dB @ 65 Hz (filter), -2.5 dB @ 20 kHz
  • Distortion:  <0.06% @ 1 kHz, 80 kHz bandwidth
• Amplifier Protection:  Dynamic Clip Protection,VI Limiting, DC Offset,thermal & switch-on delay
• Cooling:  Variable speed DC fan (stationary in Idle Mode)

General

• Power input:  230V ±5% (115V ±5% by internal connection)
• Fuse rating:  230V:T4A; 100/115V:T8A
• Fuse type:  20 mm x 5 mm HBC
• Power consumption (For thermal dissipation subtract power in the load)
• External remote power-down:  4.7 W (7.75VA)
  • Idle – 4 chs APD:  13.4 W (16.75VA)
  • Idle – 3 chs APD:  16.3 W (20.5VA)
  • Idle – 2 chs APD:  19.2 W (24.9VA)
  • Idle – 1 ch APD:  22.2 W (29.4VA)
  • Idle, all chs active 25.2 W (33.6VA)
  • Noise input,1/3 rated power,4 ohms:  440 W (560VA)
  • Noise input,1/3 rated power,8 ohms:  275 W (362VA)
  • Noise input,1/8 rated power,4 ohms:  280 W (370VA)
  • Noise input,1/8 rated power,8 ohms:  175 W (240VA)
• Dimensions
  • Net:  482.6 mm x 88 mm (2U) x 407 mm / 19” x 3.5” x 16”
  • Shipping:  598 mm x 157 mm x 542 mm / 24” x 6” x 21”
• Weights
  • Net:
    • 46-120/46-120MEDIA: 11.75 kg (26.32 lbs)
    • 46-120T/46-120TMEDIA: 15.75 kg (35.28 lbs)
  • Shipping:
    • 46-120/46-120MEDIA: 13.95 kg (31.25 lbs)
    • 46-120T/46-120TMEDIA: 17.95 kg (40.21 lbs)

Cloud Electronics 46-80T PDF Downloads

Download the Product Data Sheet HERE

ACCESSORIES

• BT-1FW & BT-1FB – Bluetooth Wireless Audio Module – Facility Port
• M-1B & M-1W – Mic Level Active Input Plate
• L-1B & L-1W – Line Level Active Input Plate
• CXL-80T – 70/100V Transformer
• LM-2DW & LM-2DB – Line/Mic/Remote Mixer Module
• LM-2W & LM-2B – Line/Mic/Remote Mixer Module
• RL-1B & RL-1W – Remote Volume Level Control Plate in Black or White
• RL-1×8 – Remote Volume Level Control Plate
• RSL-6W & RSL-6B – Remote Source / Volume Level Select Plate
• RSL-6×4 – Remote Music Source Select
