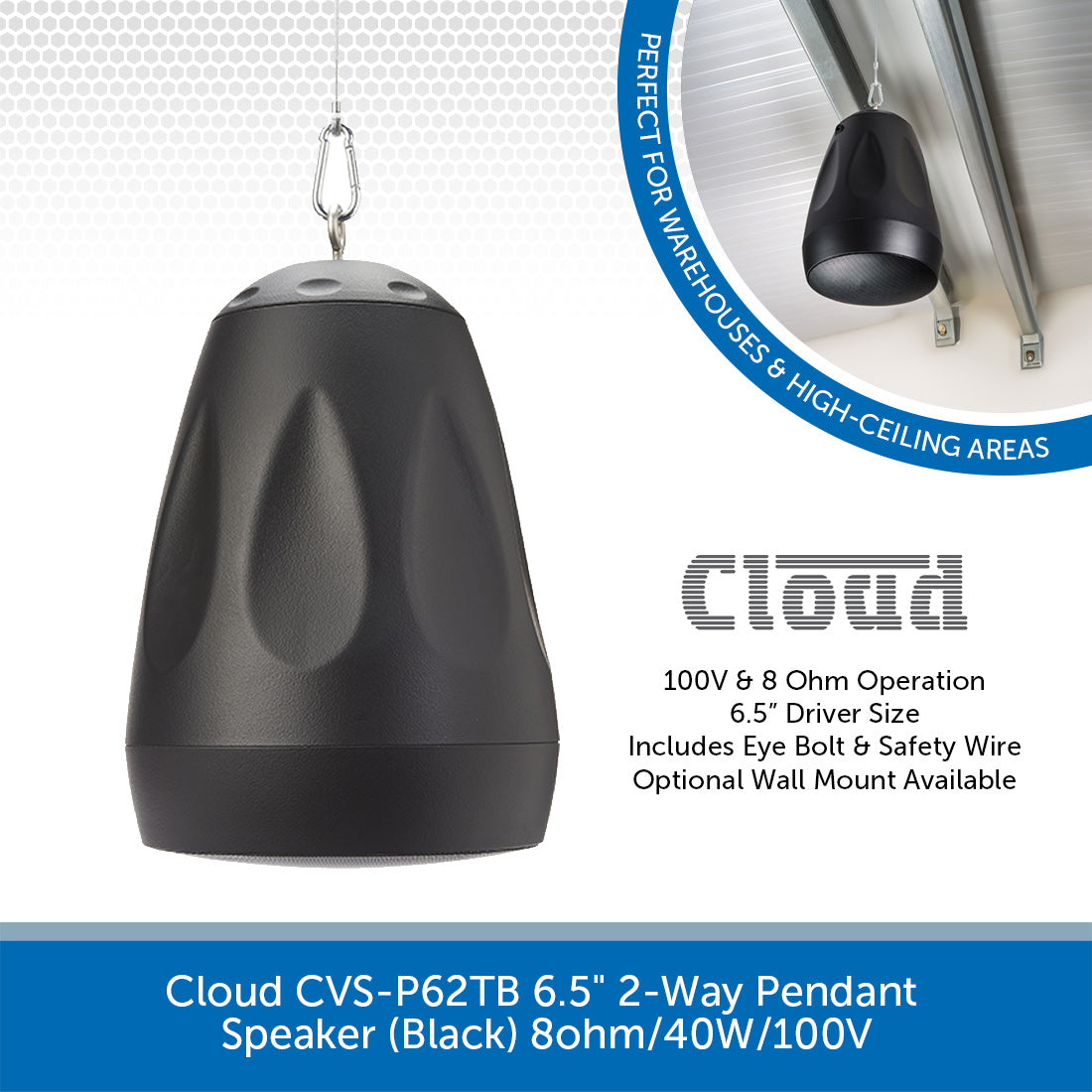

Cloud CVS-P62TB 6.5″ 2-Way Pendant Speaker (Black) 8ohm/40W/100V
DETAILS
The Cloud Contractor CVS Pendant Speakers have been specifically designed for high-quality music reproduction into large open areas / industrial spaces.
This 6.5″ 2-way black pendant speaker from Cloud is designed to be suspended in free space from any convenient point – from a solid ceiling or within an open ceiling structure: a complete set of suspension components is included with each loudspeaker.
Thanks to a 360° horizontal dispersion, the Cloud CVS-P62TB offers great audio coverage great for both music and speech.
They include a 25/70/100 V-line transformer with five power tapping’s, plus the option for low-impedance operation (8 ohms). The power setting is selected by a rotary switch on the upper surface of the enclosure.
Each loudspeaker is supplied with a separate top cover which protects the connections and power selector switch from dust and debris after installation. The bottom face of the enclosure is sealed by an aluminium grille.
Cloud CVS-P62TB Key Features:
- High quality coaxial loudspeaker, optimised for music reproduction
- Pendant mounting with 360° horizontal coverage
- Full set of suspension components with each loudspeaker
- Integral multi-tap transformer for 25/70/100 V-line operation
- Power selection by rotary switch; low impedance setting included
- Removable top cover protects connections and selector switch
- Plug-in connector for easy wiring
- Optional wall mount bracket WB-P46W & WB-P46B
- Colour: Black
SPECS & DOWNLOADS
Download the Product Data Sheet HERE
Cloud Contractor CVS-P62TB Speaker Specifications
- Nominal driver diameter: 6½”
- Type: 2-way coaxial
- Tweeter design: 1” aluminium dome
- Woofer design: 6½” polypropylene cone, with soft rubber surround
- Frequency Response (-3 dB): 90 Hz – 20 kHz
- Frequency Response (-10 dB): 75 Hz – 20 kHz
- Crossover frequency: 5 kHz
- Driver impedance: 8 ohms
- Sensitivity (1 W @ 1m): 88 dBA
- Power rating: 20 W
- Max power input: 40 W
- Grille type: Painted aluminium
- Components supplied: Eye bolt with nut and washer, cable and carabiner; protective top cover
- Dimensions: Bottom diameter: 20.5 cm (11.6”) Top diameter: 12 cm (4.7”) Height: 29.5 cm (11.6”)
- Net weight: 2.85 kg (6.4 lb)
CASE STUDIES
Learn how the Cloud CVS-P62T Pendant Speakers enhance the showroom and workshop sound system at Big Motoring World > READ HERE
