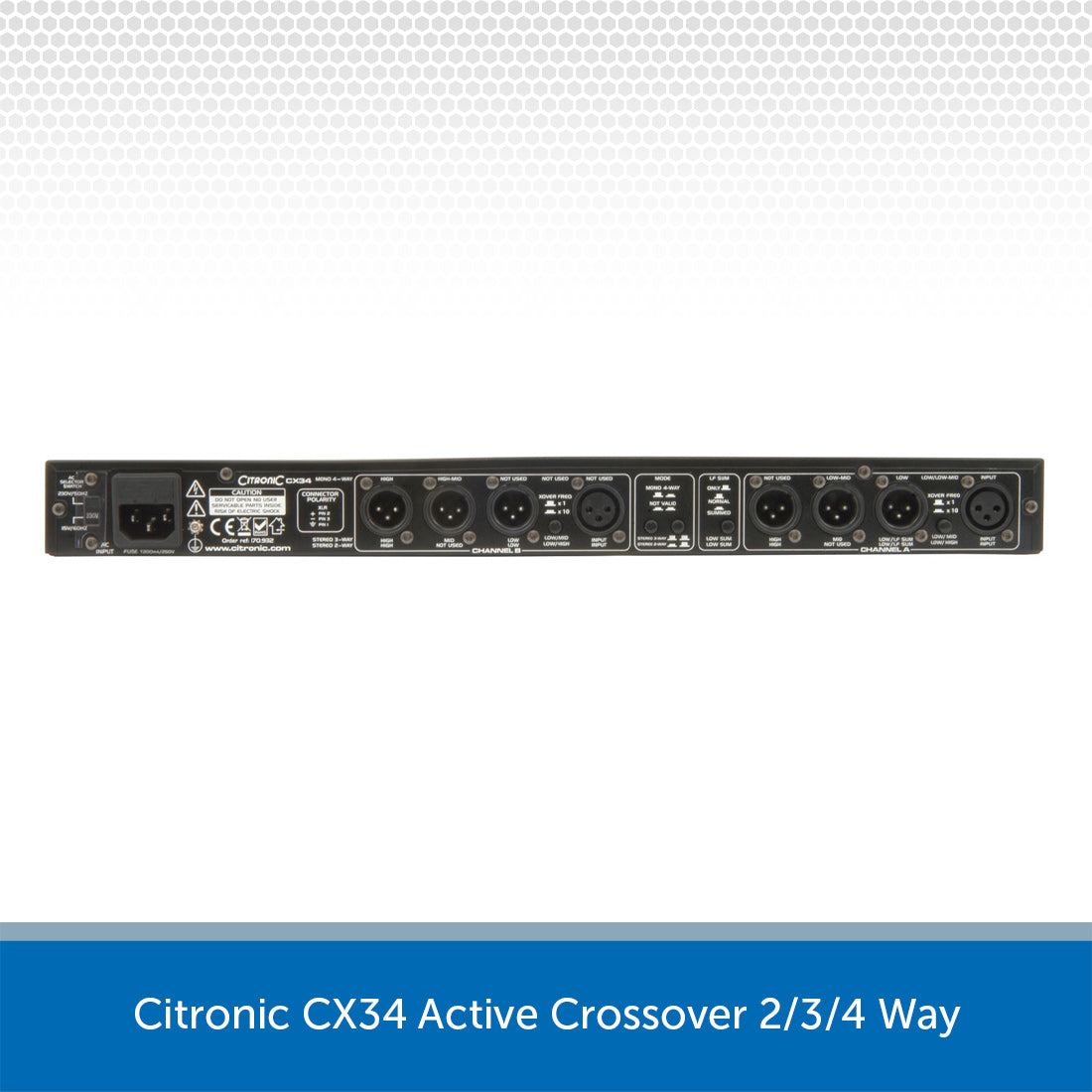

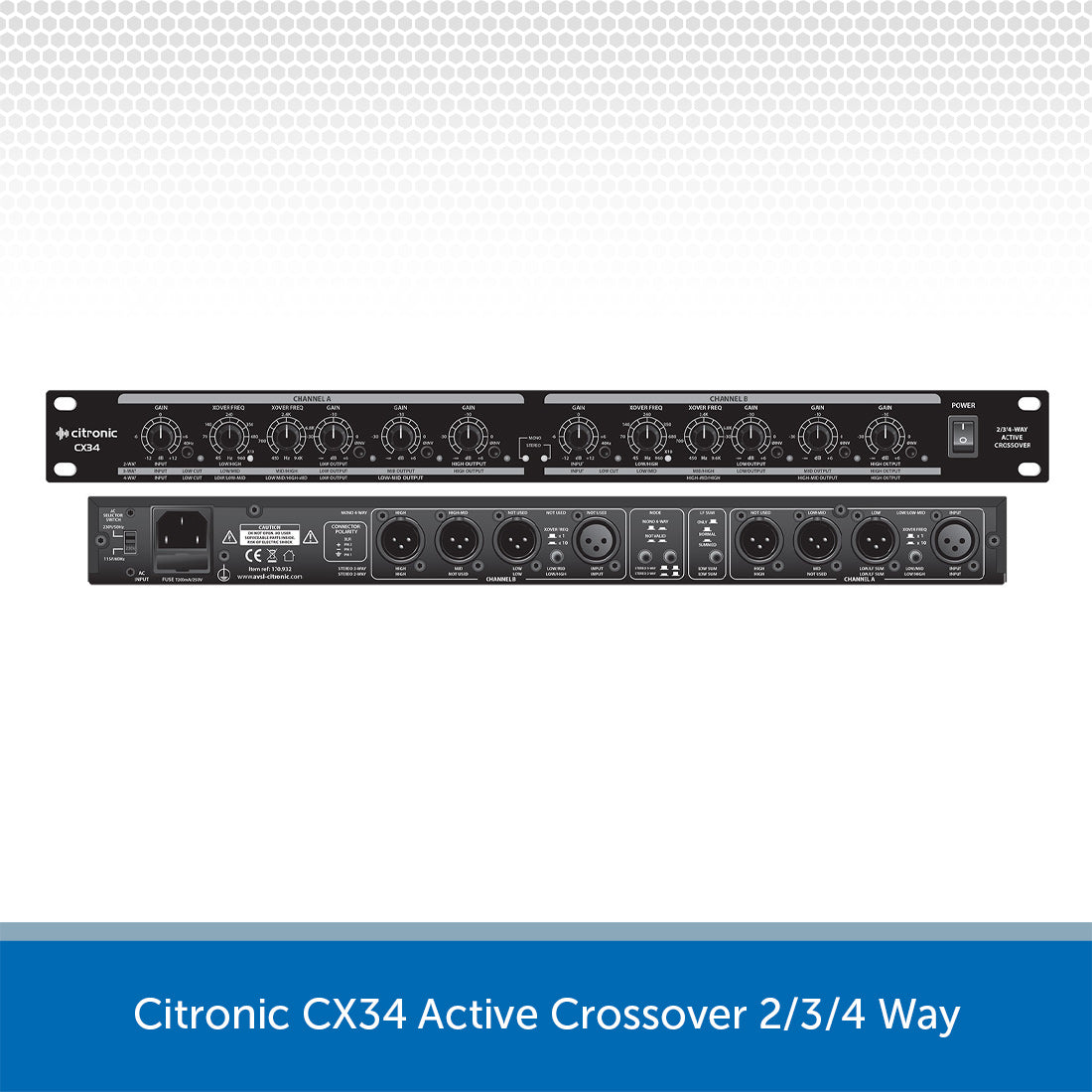

Citronic CX34 Active Crossover 2/3/4 Way
DETAILS
The Citronic CX34 is a 2-way or 3-way stereo or 4-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs.
This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.
Whilst primarily designed to deliver a more detailed sound, the Citronic CX34 also protects your equipment from overloading and avoids potentially blowing your mid/top speaker cabinets by sending the low frequencies just to the subs.
The Citronic active crossover offers a user-friendly operation easily accessible when installed in a 19″ rack cabinet.
Key Features:
- 2 or 3-way stereo, 4-way mono crossover
- 19″ rack mountable
- Linkwitz-Riley 24dB/octave, state variable
- Continuously adjustable cutoff frequencies
- 40Hz ultra-low frequency cut
- Phase invert function
- Inputs and outputs via XLR
SPECS & DOWNLOADS
Citronic CX34 Specifications
Power supply: 115/230Vac, 50/60Hz (IEC)
Input impedance : balanced: 50k ohms
Input impedance : unbalanced: 25k ohms
Output impedance: 200 ohms
Crossover ranges: 45-960Hz (switchable 10x) or 450Hz-9.6kHz
Filter slope: 24dB/octave
Frequency response: 20Hz – 20KHz, +0/-0.5dB
Signal to noise ratio: >90dB
THD: <0.004% @ +4dBu, 1kHz
Dimensions: 482 x 44 x 170mm
Weight: 2.5kg
Citronic CX34 PDF Download
Download the User Manual HERE
