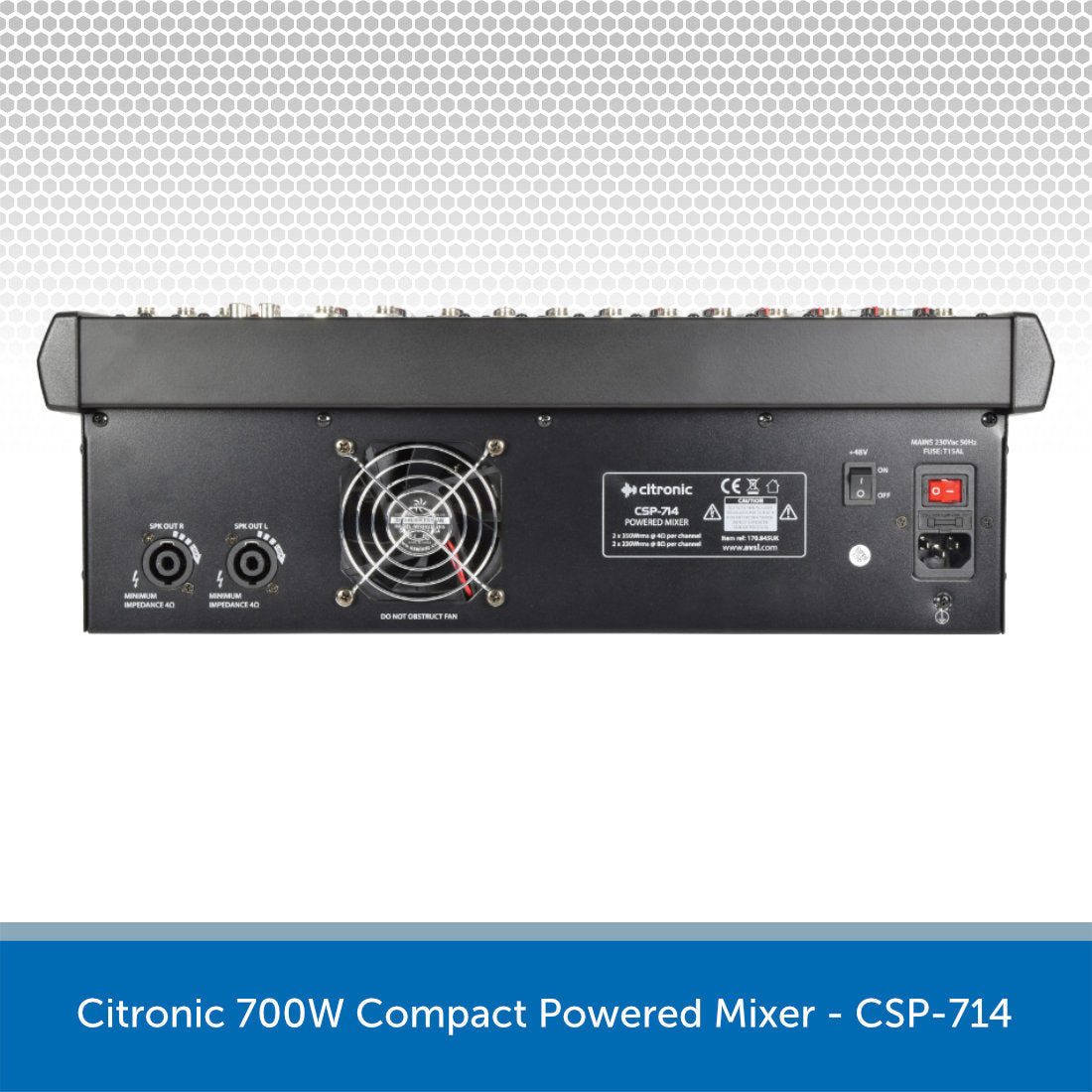

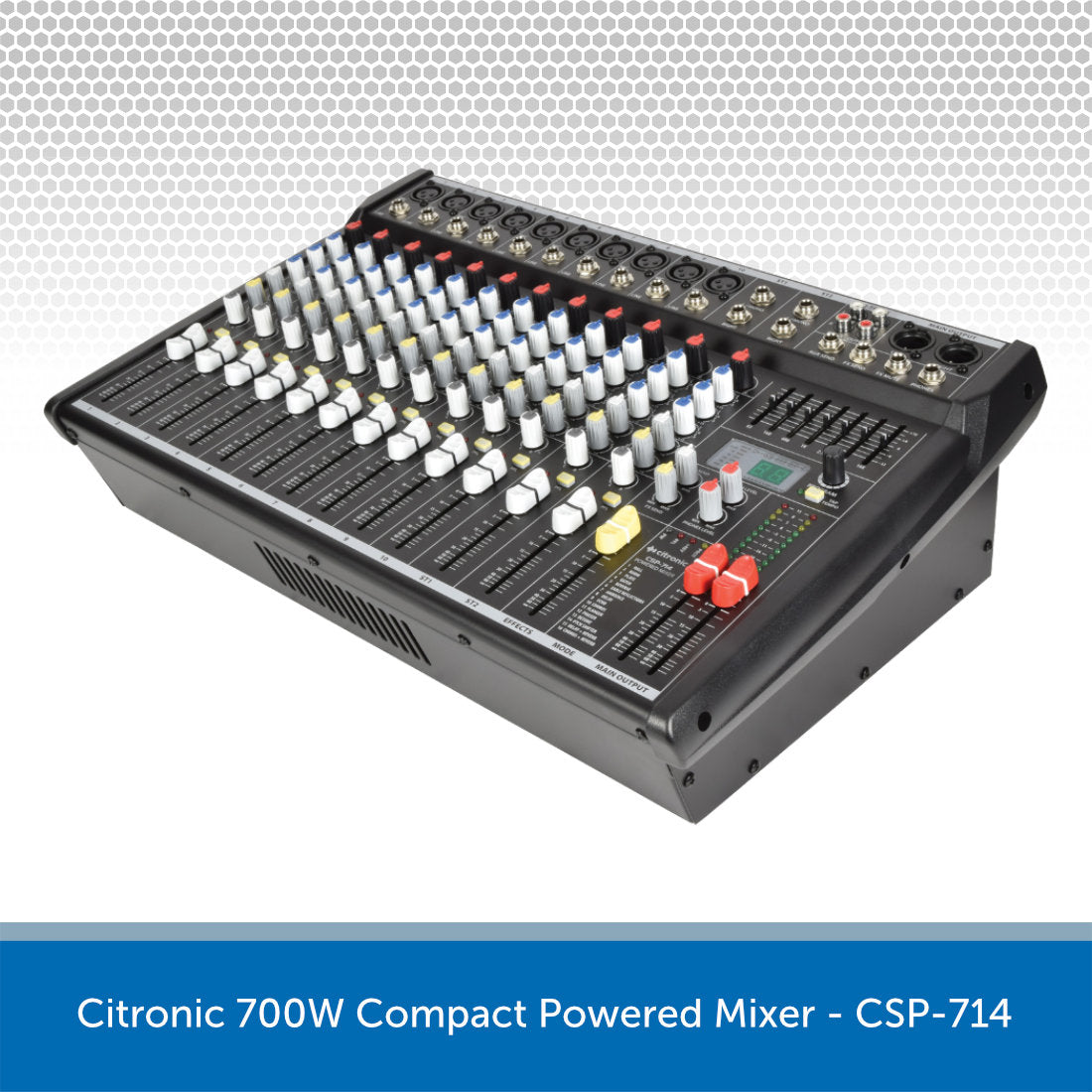

Citronic CSP-714 Compact Powered Mixing Desk, 14 Input, 2 x 350W
DETAILS
Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send.
A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control.
The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium-sized venues, offering a compact and comprehensive solution for mobile PA, bars, and special events.
Key Features:
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- Internal stereo power amplifier
- Balanced main outputs
- 19″ rack-mounting ears available: 170.846-7-8UK
SPECS & DOWNLOADS
Citronic CSP-714 Specifications
- Power supply: 230Vac 50Hz (IEC)
- Phantom power: +48V (XLR inputs)
- Input level: +24dBu
- Output level : line: +26dBu
- Frequency response: 20Hz-30kHz (0.5dB)
- CMRR: >74dB (mic 1kHz)
- THD +N: <0.01% (channel to main out)
- Crosstalk: >85dB (fader mute), >82dB (channel)
- Noise rms : 22Hz-22kHz: -122dBu (EIN), -82dBu (mix)
- EQ: high: 12kHz ±15dB shelving
- EQ: mid: 2.5kHz ±15dB band pass
- EQ: low: 80Hz ±15dB shelving
- Input impedance : mic (balanced): 2k Ohms
- Input impedance : line (balanced): 10k Ohms
- Sensitivity : mic: -60 to +14dBu
- Sensitivity : line: -40 to +14dBu
- 2-track: 2 x RCA in & out (-2dBu)
- Effects: 16 program DSP (24-bit sigma-delta, 40khz)
- Headphone output: 6.3mm jack, 30-600 Ohms
- Speaker : outputs: L+R SPK connectors
Citronic CSP-714 – PDF Downloads
Download the user manual here
