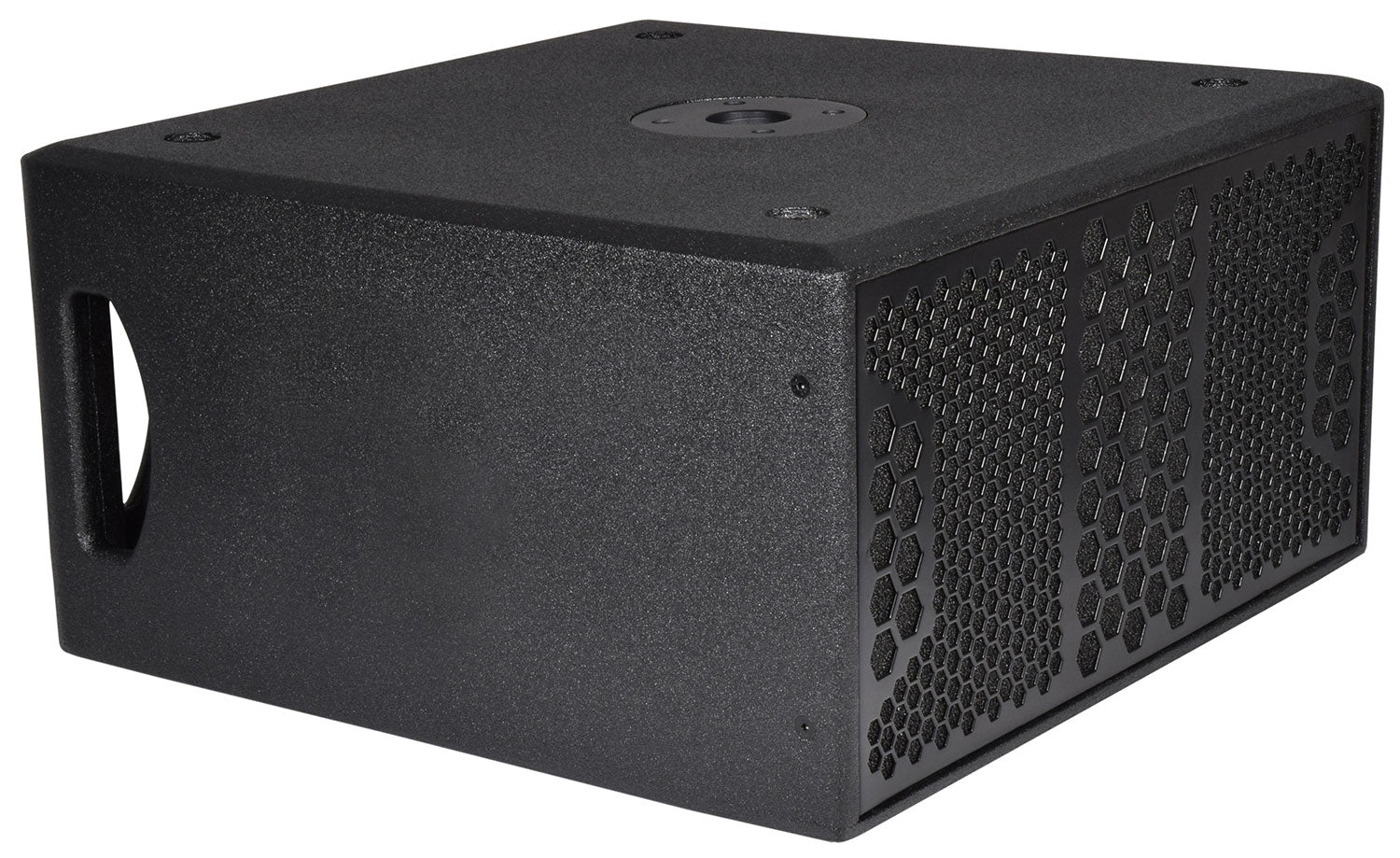

Citronic CASA-28BA 400W Active Subwoofer, 2 x 8″ Drivers
DETAILS
The Citronic CASA-28BA is a 400W Active Subwoofer with 2 x 8″ sub drivers and built-in preset DSP sub frequency control.
Compact slim profile active subwoofer cabinet with internal amplifier for mobile and fixed sound reinforcement.

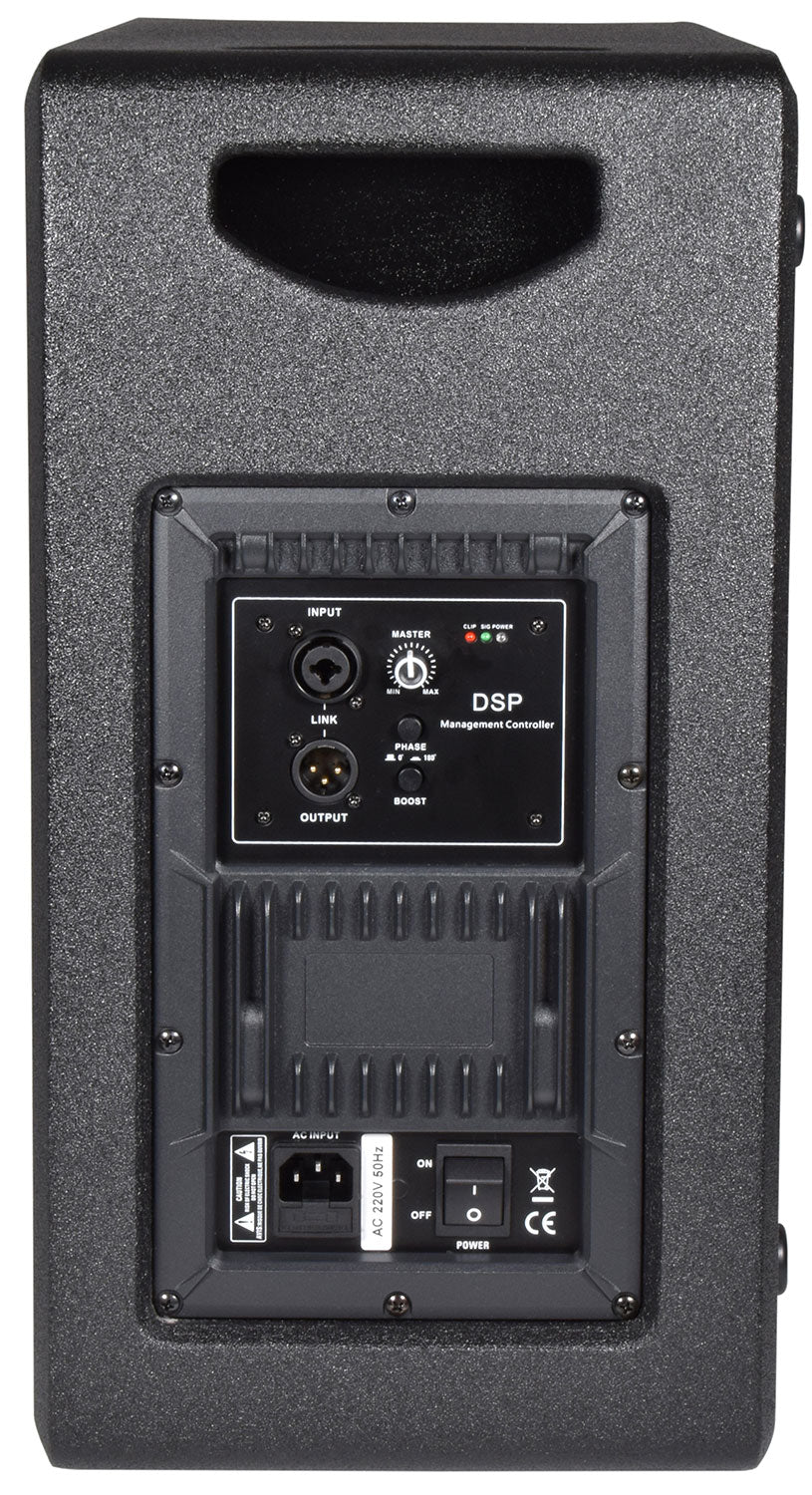

Line level input is connected via balanced XLR or 6.3mm jack with an XLR line output for cascading the signal onto further active cabinets.
Preset DSP control accurately filters low frequencies to the class-D amplifier section to drive the twin 8″ woofers up to 400Wrms output.
A level control adjusts the output and the gain can be increased by engaging the Boost function. A phase switch can be used to correct time-alignment or out-of-phase situations.
This sub unit can be positioned flat to accept a 35mm pole to mount a full-range speaker or upright for a smaller footprint. The compact dimensions also make this a perfect option for hiding behind or underneath furnishings in an installation.
Multiple units can be stacked on top of each other for more demanding applications that require a punchier audio solution.
Citronic CASA-28BA Key Features:
- Preset DSP sub frequency control
- Dual 200mmØ (8″) sub drivers
- Internal 400Wrms class-D amplifier
- 35mm pole mount socket
SPECS & DOWNLOADS
Download the PDF User Manual HERE >
Citronic CASA-28BA Active Subwoofer Specifications
- Power supply: 230Vac, 50Hz (IEC)
- Construction: 15mm MDF with durable texture paint finish
- Hardware: Integral carry handle & 35mm pole mount socket
- Amplifier : construction: Class-D
- Line input: Balanced XLR / 6.3mm jack
- Line output: Balanced XLR
- Controls: Master level, Phase switch, Boost switch
- Drivers: 2 x 200mmØ (8″) woofers
- Frequency response: 55 – 150Hz
- Output power rms: 400W
- Output power max.: 700W
- Peak output: 1400W
- SPL max.: 122dB
- Dimensions: 475 x 450 x 250mm
- Weight: 15.7kg
