Citronic CASA-12BA 12″ 400W Active Subwoofer
DETAILS
The Citronic CASA-12BA is a 12″ 400W Active PA Subwoofer that delivers a deep, defined bass sound.
The Citronic CASA Series subwoofers are perfect for adding an extra level of bass and low-end to your sound system and thanks to their simple plug-and-play design, make it easy for anyone to operate – no technical expertise required.
Sound Quality
The Citronic CASA Subwoofers are powered via class-D amplification. This helps keep the sub lightweight and compact, while providing a smooth & distortion-free low end – something class-D amplification excels at.
There is an adjustable crossover which will cut out the unwanted high frequencies, resulting in a clean signal to again reduce distortion and provide the best sound quality possible.

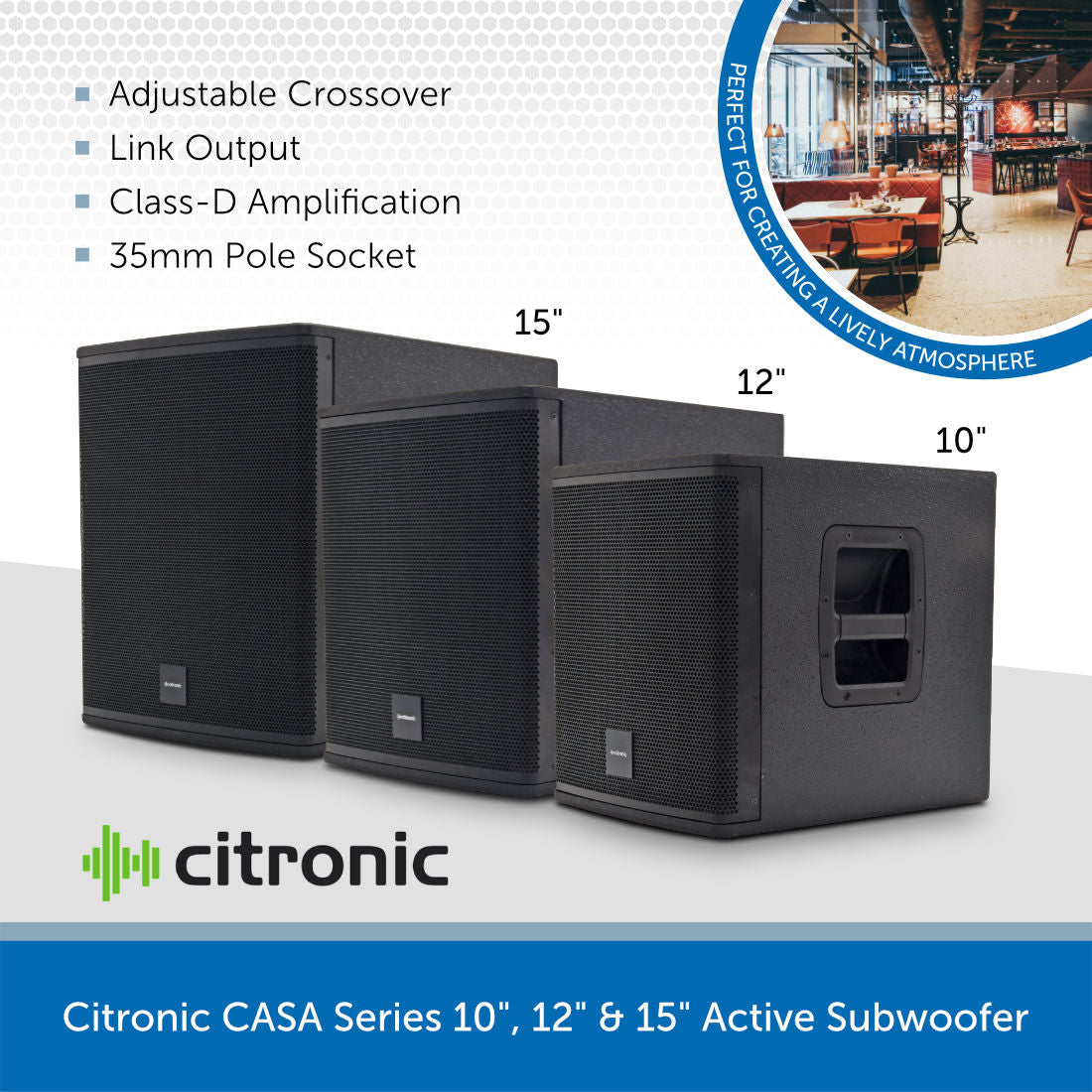

Each subwoofer size varies in power and frequency range:
- CASA10 (10″) – 300W RMS / 60 – 150Hz
- CASA12 (12″) – 400W RMS / 55 – 150Hz
- CASA15 (15″) – 500W RMS / 50 – 150Hz
Build & Features
The Citronic CASA Subwoofers are built to last. They are constructed of hard-wearing 15mm MDF and coasted in a textured paint finish, which should offer some resistance to unwanted spills – ideal in a bar scenario!
The front grille is made from steel and not only adds to the solid construction but improves the sound quality too.
There is a 35mm pole mount socket on top for connecting a PA speaker, and two handles for easy transportation.
Inputs & Outputs
On the rear of the CASA Subwoofers are 2x balanced XLR/1/4″ Jack Combi line inputs, and 2x balanced XLR outputs.
There is a phase switch and master volume control, as well as an XLR link connection to carry the signal to additional speakers.
Key Features:
- Compact and lightweight design
- Class-D Amplification – Ideal for low frequencies
- 15mm MDF cabinets with hard-wearing paint finish
- 2 x side carry handles
- 35mm pole mount socket
- L&R output link to connect to other speakers
SPECS & DOWNLOADS
Citronic CASA-12BA Active Subwoofer Specifications
- Sub driver: 300mmØ (12″)
- Voice coil: 62mmØ (2.5″)
- Output power : rms: 400W
- Output power : max.: 700W
- Peak output: 1400W
- SPL max.: 122.0dB
- Frequency response: 55 – 150Hz
- Dimensions: 480 x 450 x 380mm
- Weight: 18.86kg
Citronic CASA Series Active Subwoofers – PDF Download
Download the User Manual Here
