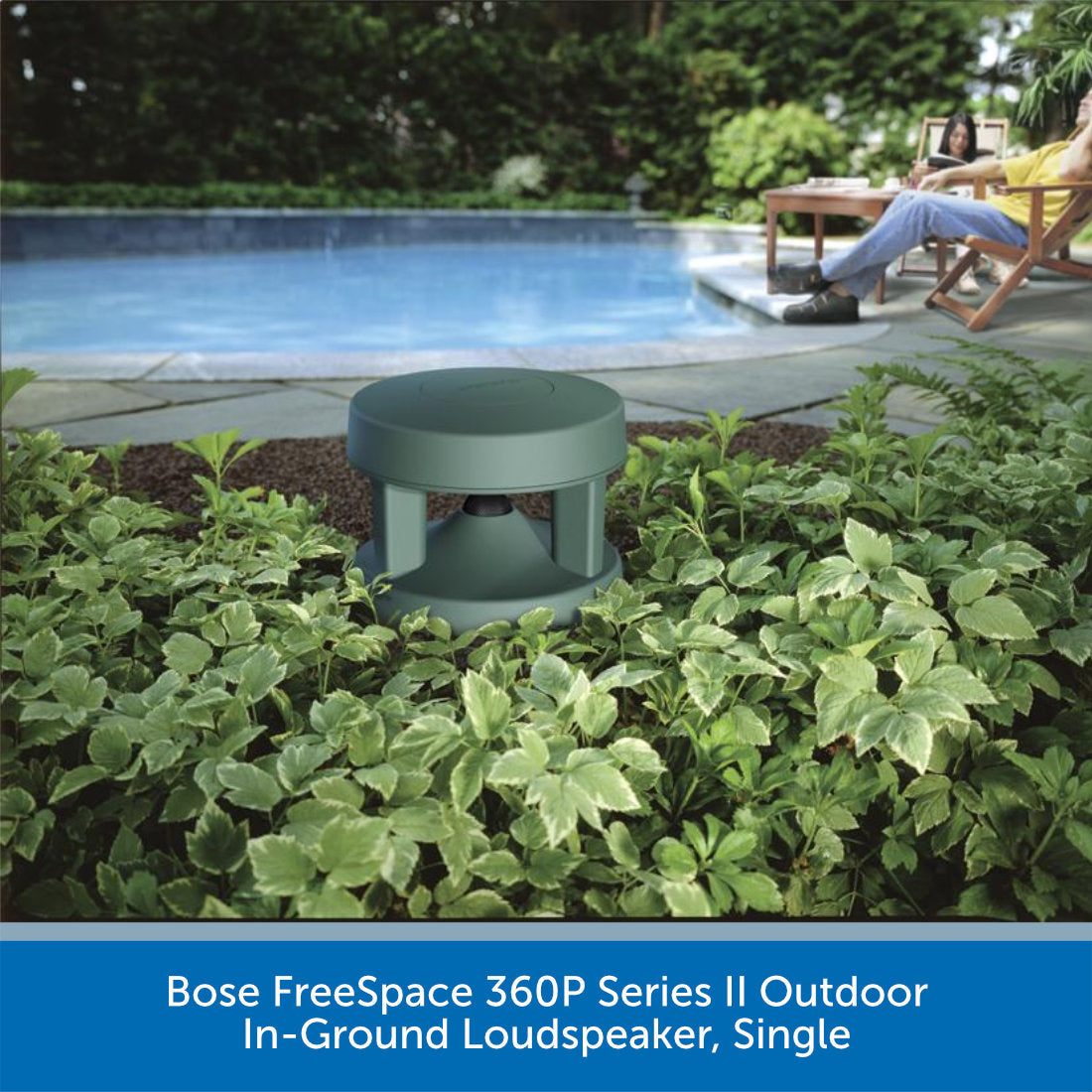

Bose FreeSpace 360P Series II Outdoor In-Ground Loudspeaker, Single
DETAILS
The Bose FreeSpace 360P Series II Outdoor In-Ground Loudspeaker is engineered to deliver high-quality sound in a range of outdoor environments.
Designed for both in-ground and above-ground installation, this full-range loudspeaker is ideal for settings such as shopping centres, outdoor restaurants, resorts, and theme parks.
With a 360° horizontal coverage and a frequency range down to 60 Hz, the 360P Series II provides clear, consistent performance across a wide area.
Bose FreeSpace 360P Series II Key Features:
-
Full-Range Environmental Loudspeaker: Equipped with a 4.5-inch (114 mm) advanced composite driver, the 360P Series II offers powerful sound performance suitable for both in-ground and above-ground mounting.
-
360° Coverage: The loudspeaker’s design ensures comprehensive horizontal sound dispersion, allowing for even audio coverage across large outdoor areas.
-
Domed Port Grille: Reflects sound into the listening area, enhancing clarity and consistency of performance.
-
Acoustic Diffuser Design: The cabinet shape acts as an acoustic diffuser, directing mid- and high-frequency energy towards listeners, while the base functions as a tuned, multi-chambered ported enclosure for deep, rich bass.
-
Flexible Tap Settings: A multi-tap line transformer allows for easy adjustment of tap settings to match different installation needs.
-
Durable and Tamper-Resistant: The loudspeaker is designed to withstand environmental challenges with a tamper-resistant design and internal speaker protection circuit that safeguards the drivers.
Applications:
- Shopping Centres
- Restaurants and Bars
- Cafes
- Resorts and Hospitality Venues
- Theme Parks
- Atriums and Malls
Why Choose the Bose FreeSpace 360P Series II? The Bose FreeSpace 360P Series II Outdoor In-Ground Loudspeaker combines durability, flexibility, and superior sound quality, making it an excellent choice for enhancing audio experiences in various outdoor settings.
In the Box:
- 1 x FreeSpace 360P Series II
- 1 x Installation Guide
- 8 x Wire Nuts
SPECS & DOWNLOADS
Bose FreeSpace 360P Series II PDF Spec Sheet > DOWNLOAD HERE
Bose FreeSpace 360P Series II Specifications
Physical:
- Ingress Protection: IP35
- Mounting/Rigging Provisions: 3 × #10 (M4) holes in base, 3 × #10 (M4) screws required
- Net Weight: 14.5 lb (6.6 kg)
- Product Dimensions (H×W×D): 368 mm × 379 mm (14.5 in × 14.9 in), loudspeaker diameter × height
- Shipping Weight: 14.9 lb (6.8 kg)
Performance:
- Frequency Range (-10 dB): 60 Hz – 15,000 Hz
- Coverage, Horizontal: 360°
- Maximum SPL at 1 m: 107 dB
- Nominal Impedance: 8Ω (transformer bypassed)
- Power Handling, Continuous: 70/100V: 80 W / 8Ω: 65 W
- Power Handling, Peak: 70/100V: 320 W / 8Ω: 260 W
- Recommended Signal Processing: No Bose Professional EQ required. For best performance, Bose Professional EQ presets available.
- Sensitivity (SPL/1 W at 1 m): 87 dB
- Transformer Taps, 100V: 10, 20, 40, 80 W, bypass
- Transformer Taps, 70V: 10 W, 20 W, 40 W, 80 W, bypass
- Coverage, Vertical: 50°
Transducers:
- Driver Protection: Recommended high-pass filter 60 Hz with minimum 24-dB/octave filter, Presets available
- Low-Frequency Transducer Quantity and Size: 1 × Bose Professional 4.5 in (114 mm) environmental driver
