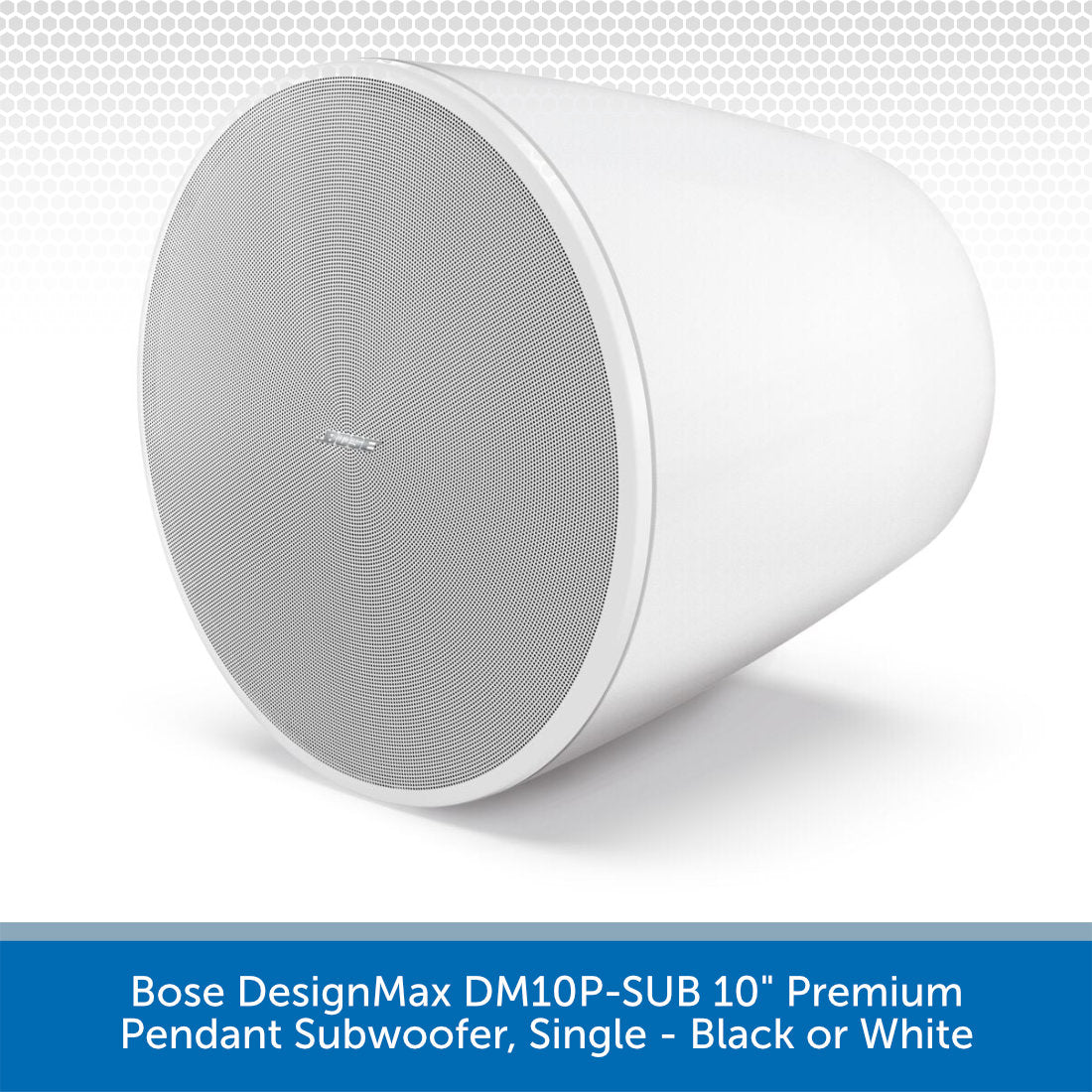

Bose DesignMax DM10P-SUB 10″ Premium Pendant Subwoofer, Single – Black or White
DETAILS
Bose DesignMax DM10P-SUB 10″ Premium Pendant Subwoofer delivers powerful, low-end bass that enhances the audio experience in any commercial sound installation.
With its sleek pendant design and recessed single-point suspension system, this subwoofer seamlessly blends into open-ceiling environments while offering the exceptional bass performance that Bose is known for.
Bose DesignMax DM10P-SUB Key Features:
-
Rich, Deep Bass for Any Installation
The DM10P-SUB features a 10-inch driver, providing deep, impactful bass with a frequency range of 40–125 Hz. Designed to deliver instantly impressive low-end sound, this 300-watt subwoofer is perfect for enhancing the atmosphere in restaurants, retail spaces, and other commercial environments where high-quality sound is essential. -
Elegant Pendant Design
Available in black or white, the DM10P-SUB features a sleek, modern pendant enclosure that complements any décor. The recessed single-point suspension system keeps all hardware out of sight, maintaining a clean, uncluttered look while providing a high-performance bass solution for open-ceiling spaces. -
Flexible System Integration
The DM10P-SUB easily integrates into 70V/100V and low-impedance systems, offering versatility in both new installations and system upgrades. For optimal performance, pair the subwoofer with Bose Professional DSPs and amplifiers, enabling advanced features like Bose EQ and SmartBass processing to enhance sound quality at any volume level. -
Part of the DesignMax Family
As part of the larger Bose DesignMax family, the DM10P-SUB pairs perfectly with any of the 16 available loudspeaker models, allowing you to mix and match in-ceiling, surface-mount, and pendant options to create a complete sound system tailored to your specific needs. -
Easy Installation
The DM10P-SUB is designed for straightforward installation with Euroblock connectors and a recessed suspension system. It offers a practical, unobtrusive solution for enhancing the bass in any commercial space.
Ideal for Open-Ceiling Commercial Spaces Perfect for environments where both style and performance are critical, the Bose DesignMax DM10P-SUB Pendant Subwoofer provides powerful bass while maintaining a sleek, professional appearance. Ideal for open-ceiling applications, this subwoofer enhances the overall sound experience without compromising the visual design of your space.
Experience the Bose Difference Choose the Bose DesignMax DM10P-SUB Pendant Subwoofer for a sound solution that combines premium low-end performance with a stylish, modern design. Available in black or white, this subwoofer is the perfect addition to any commercial sound installation.
In the Box:
- 1 x DesignMax DM10P-SUB Pendant Subwoofer in Black or White
- 1 x Input Covers
- 1 x 4.5m Suspension Cables
- 4 x Cable Ties
SPECS & DOWNLOADS
Bose DesignMax DM10P-SUB PDF Spec Sheet > DOWNLOAD HERE
Bose DesignMax DM10P-SUB Specifications
Physical:
- Colours: Black (similar to RAL 9005), white (similar to RAL 9003)
- Enclosure Material: Engineered plastics
- Environmental Testing: Indoor only
- Grille Material: Perforated steel, powder-coated finish
- Logo: Rotatable, removable
- Mounting/Rigging Provisions: 1 suspension attachment point, 1 safety cable attachment point
- Net Weight: 19.7 lb (8.9 kg)
- Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Product Dimensions (H×W×D): 15.7 in × 15.1 in (400 mm × 383 mm), loudspeaker diameter × depth
- Shipping Weight: 27.9 lb (12.7 kg)
Performance:
- Frequency Range (-10 dB): 40 Hz – 125 Hz
- Coverage, Horizontal: Omnidirectional below 200 Hz
- Maximum SPL at 1 m: 110 dB
- Nominal Impedance: 8 Ω (transformer bypass)
- Power Handling, Continuous: 250 W
- Power Handling, Peak: 1000 W
- Sensitivity (SPL/1 W at 1 m): 85 dB
- Transformer Taps, 100V: 40, 80, 150 W, bypass
- Transformer Taps, 70V: 20 W, 40 W, 80 W, 150 W, bypass
- Coverage, Vertical: Omnidirectional below 200 Hz
Transducers:
- Crossover Frequency: 80 Hz – 200 Hz via active crossover in DSP
- Driver Protection: Recommended high-pass protection 45 Hz with recommended 24 dB/octave filter
- Low-Frequency Transducer Quantity and Size: 1 × 10 in (254 mm) woofer
