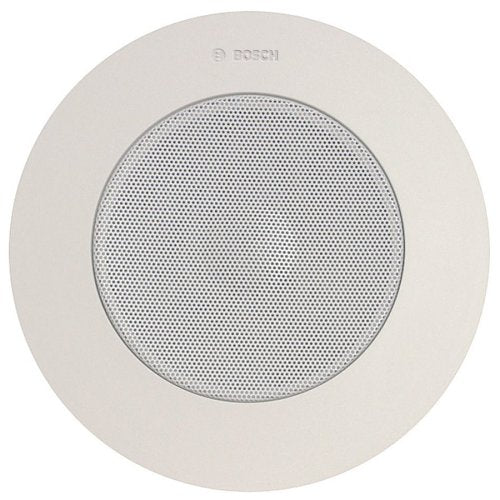

Bosch LBC3951/12 4″ Splashproof Ceiling Speaker, 6W/100V Line
DETAILS
The Bosch LBC3951/12 is a splashproof 6-watt ceiling speaker designed for 100-volt line sound systems, delivering exceptional audio performance in various environments.
With a 4″ driver, this speaker is engineered to provide clear sound reproduction for both speech and music, making it suitable for applications in humid locations such as bathrooms, saunas, atriums, and swimming pool areas.
Bosch LBC3951/12 Key Features:
- Superior Audio Quality: The 4″ driver ensures excellent audio performance, enhancing both speech clarity and music quality across a wide frequency range.
- Wide Dispersion Angle: Designed with a very wide angle of dispersion, the LBC3951/12 requires fewer units to effectively cover a given area, making it a cost-effective solution for sound distribution.
- Flexible Power Settings: The integrated 6-watt transformer includes tappings at 6W, 3W, 1.5W, and 0.75W, allowing for easy adjustment based on specific installation needs.
- Durable and Water-Resistant: Featuring a specially treated paper cone, the speaker is IPx4 rated for water resistance from the front, ensuring durability in humid environments.
- Simple Installation: The integral mounting clips facilitate quick and straightforward installation, saving time and effort during setup.
With a 3-year warranty, the Bosch LBC3951/12 is a reliable choice for any project requiring high-quality sound in challenging environments. Its combination of durability, superior audio performance, and easy installation makes it an ideal solution for both residential and commercial applications.
SPECS AND DOWNLOADS
Download the Bosch LBC3951/12 PDF Spec Sheet HERE >
Bosch LBC3951/12 Ceiling Speaker Specifications
- Rated Power: 6 / 3 / 1.5 / 0.75 W
- Sound pressure level at 6 W / 1 W (1 kHz, 1 m): 95 dB / 87 dB (SPL)
- Sound pressure level at 6 W / 1 W (4 kHz, 1 m): 98 dB / 90 dB (SPL)
- Effective frequency range (-10 dB): 90 Hz to 18 kHz
- Opening angle at 1 kHz/4 kHz (-6 dB): 180° / 65°
- Rated voltage: 100 V
- Rated impedance: 1667 ohm
- Connector: 2-pole push-in terminal block
- Diameter: 160 mm (6.30 inch)
- Maximum depth: 95 mm (3.74 inch)
- Ceiling thickness: 9 to 25 mm (0.35 to 0.98 inch)
- Mounting cut-out: 145 mm (5.71 inch)
- Speaker diameter: 101.6 mm (4 in)
- Weight: 640 g (1.41 lb)
- Colour: White (RAL 9010)
- Magnet weight: 101 g (3.57 oz)
