AUDAC NELO706 – Surface Mount 6.5 inch Loudspeaker 100V, Black or White
DETAILS

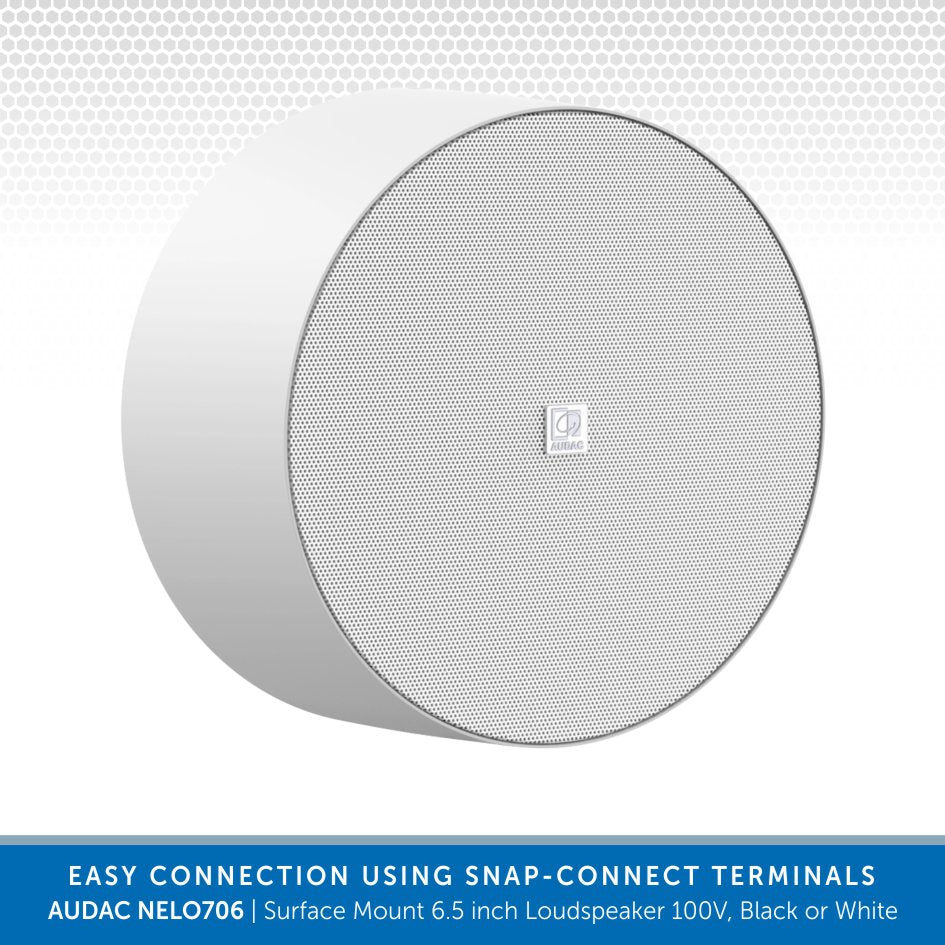

The NELO706 surface-mount loudspeakers allow installation to any wall or ceiling where functional and cost-efficient reproduction for music & speech is required.
It features a 6.5” broadband loudspeaker with a continuous power handling of 10 Watt (RMS) and is fitted with a line transformer for use in 70V/100V public address systems with power tappings for 6W and 3W.
The housing is minimalistic and elegant designed with a very narrow border and a finely perforated steel grill on the front. Connections are made through SnapConnect™ terminals, offering a faster, more reliable and safer choice for fixed installations.
The NELO706 are available in various models with (NELO706V) and without (NELO706) individual volume controller on its side while being available in two different colours (Black /B & White /W) to blend in with any residential, commercial or industrial environment.
NELO706 – Pendant Loudspeaker Solution

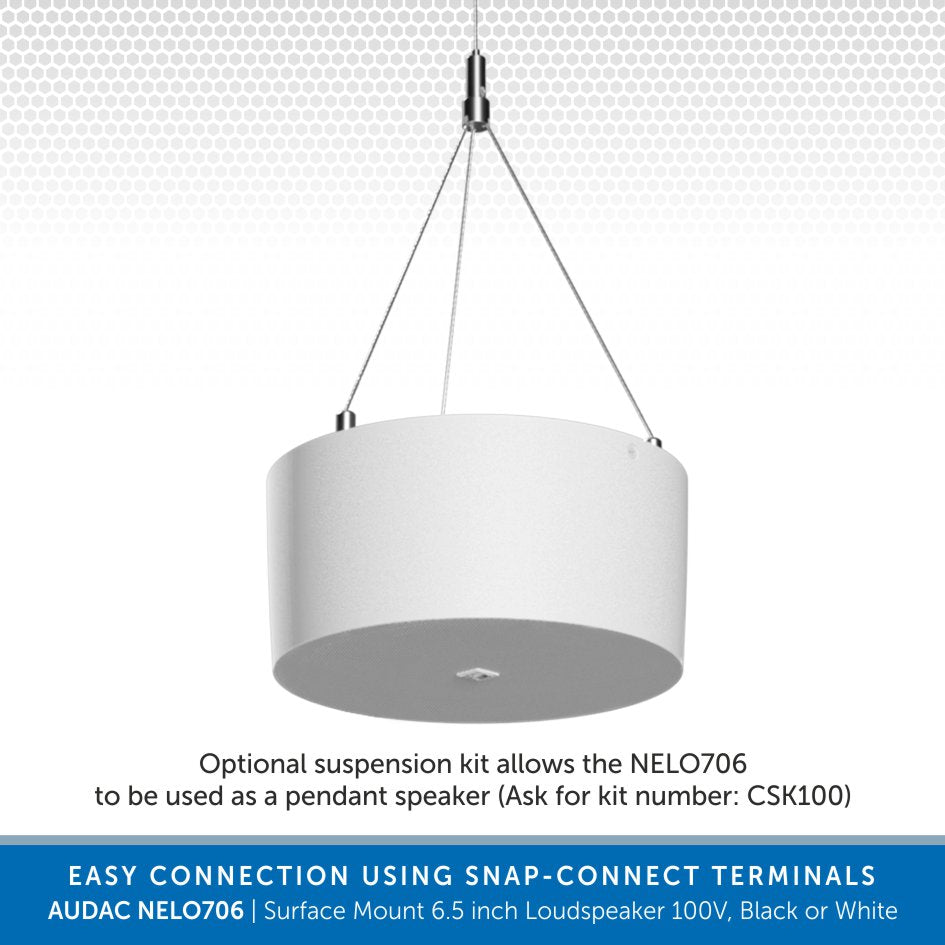

The CSK100 is an optional suspension kit, allowing the NELO series loudspeakers being used as a pendant loudspeaker solution. The triangular steel wire construction can be screwed into the threaded bushings on the rear side of the NELO series speakers, while a 3.5 metre-long steel wire allows it to be fixed to any possible ceiling or surface. This offers a fast and easy solution for converting the NELO series into an entry-level pendant solution.
AUDAC NELO706 Key Features:
- Minimalistics and elegant housing
- With or without volume controller
- High intelligibility and sound accuracy
- Connection through SnapConnect™ terminals
- Diverse mounting possibilities
- Optional suspension kit (CSK100?
SPECS & DOWNLOADS
Download the Product Data Sheet HERE >
AUDAC NELO706 Specifications
-
Peak power handling: 40 W
-
Program power handling: 20 W
-
RMS/AES power handling: 10 W
-
Sound Pressure (Max. W/1m) @ 100 V: 106 dB
-
Sensitivity (1W/1m): 96 dB
-
Speaker type: Broadband
- Connection: SnapConnect
-
Frequency Response (± 3 dB): 100 Hz – 15 kHz
-
Range (-10 dB): 70 Hz – 18 kHz
-
Line Transformer Tappings: 6 W, 3 W, 1.5 W
-
Drivers: 6.5” Full Range
- Dispersion (Conical): 140°
- Dimensions: 206.5 x 95 mm (Ø x D)
- Operating temperature: -25 °C ~ 70 °C
