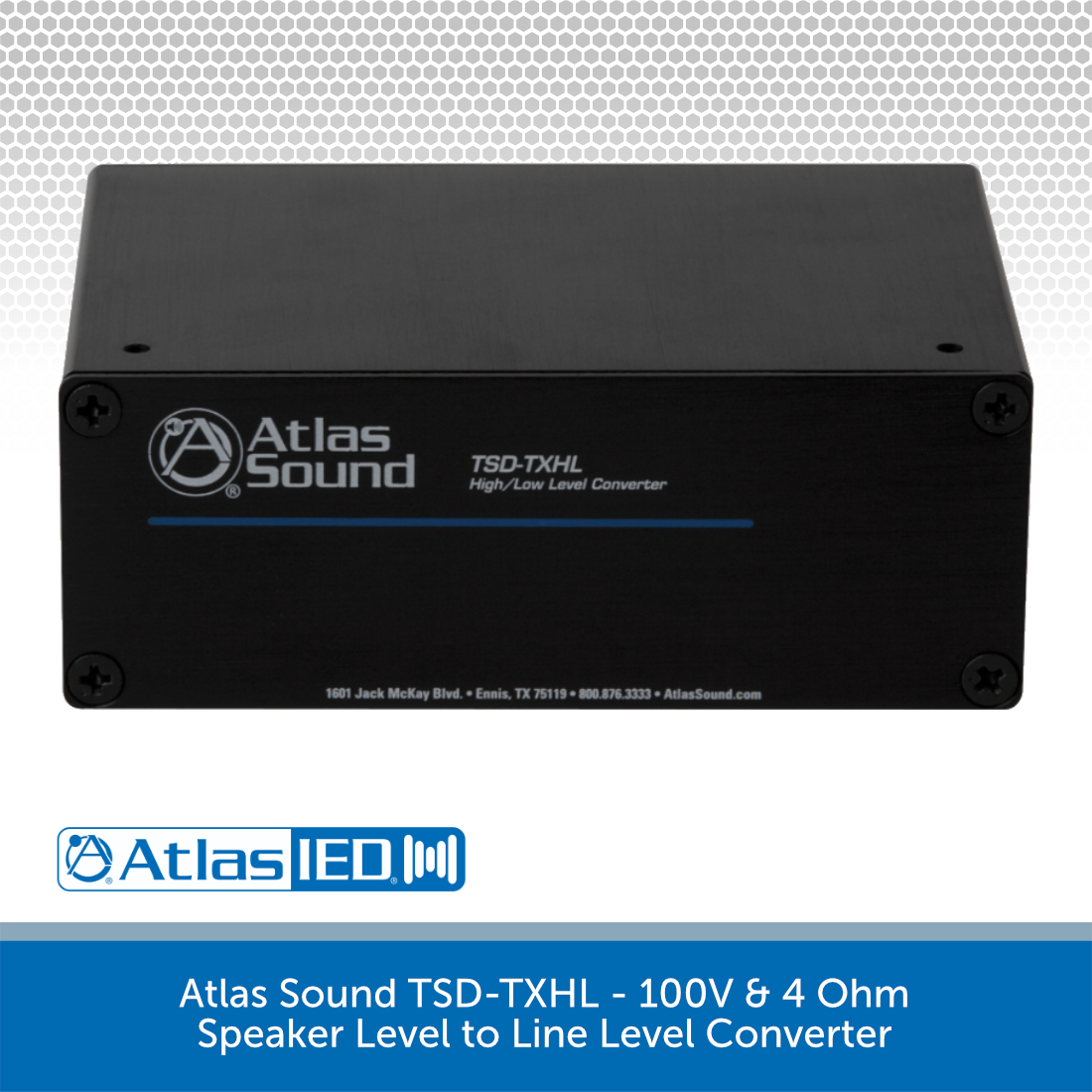

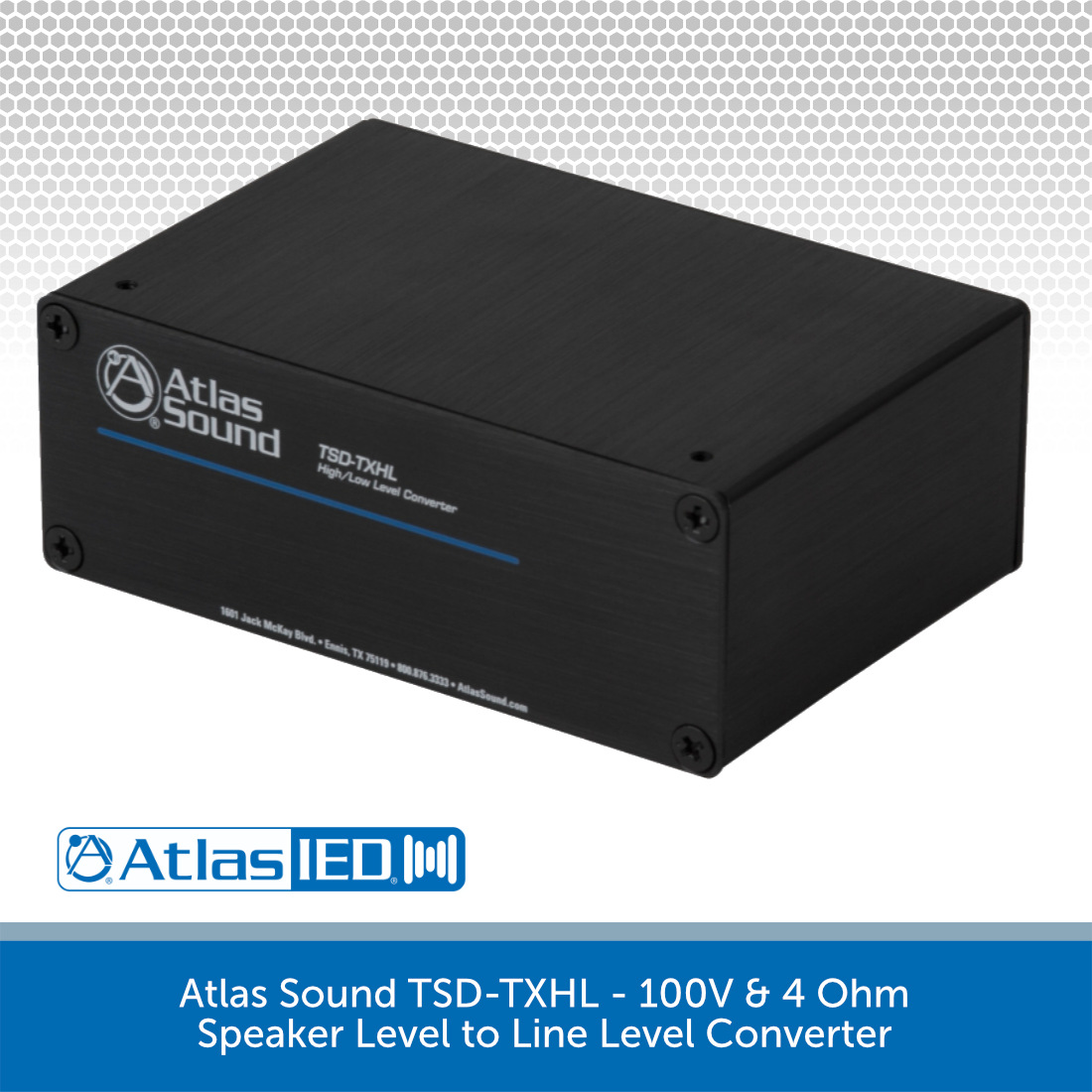

Atlas Sound TSD-TXHL – 100V & 4 Ohm Speaker Level to Line Level Converter
DETAILS
The Atlas Sound TSD-TXHL is a handy device that can convert a 100V Line or low impedance (down to 4 Ohm) speaker level signal to a line-level signal.
This is ideal for routing an audio signal to other devices such as an active subwoofer or amplifier, when your primary amplifier doesn’t have a line output. It’s also great for connecting devices such as these when the primary amplifier is too far away for a normal line-level signal.
The TSD-TXHL is a passive unit meaning no external power is required and features a volume control to adjust the volume to your liking. There is a switch to toggle between your speaker level input (4 Ohm, 25V, 70V and 100V), and phoenix terminals to connect the speaker inputs and output.
Example:
An example could be an amplifier in a storage room, and a subwoofer in the front of house. It may be impractical to connect a normal line-level signal due to the distance between the two devices, however a feed from a nearby speaker could be routed to the subwoofer, with the TSD-TXHL connecting them.
Audio Applications
- System Isolation
- Level Matching
- Add Zones anywhere a speaker system exists
Key Features
- Speaker Level to Line Level converter
- Works with 4Ω, 25/70/100v speaker systems
- Variable output level
- Transformer isolated
- Trim level control
- Cable management system
- Multiple mounting configurations
- Wide bandwidth frequency response
- Separate ground connections
- Removable Input/Output connectors
- No external power required
- Compact chassis design
SPECS & DOWNLOADS
Atlas Sound TSD-TXHL Specifications
Chassis Material: Aluminum
High Level Input: Qty 1, Amplifier speaker ouputs 4/8Ω, 25/70/100v
Connection: Removable 2 position captive screw 3.5mm spacing
Output Type: Qty 1 Unbalanced Line
Output Connection: Removable 2 position captive screw 3.5mm spacing
Output Impedance: 600Ω Unbalanced
Line Output Level: Max output 1v ±10%
Level control: Qty1, Removable knob with security cover
Input Level Adjustment: Three selections 4Ω -25/70/100v
Transformer: Isolation step down
Frequency Response: 40Hz~25kHz (-3dB)
Power Requirements: None – Passive
Dimensions: 39(H) x 191(W) x 70(D) mm
Weight (Net): 0.17kg
Weight (Gross): 0.25kg
Atlas Sound TSD-TXHL PDF Downloads
Download the Spec Sheet Here
Download the User Manual Here
