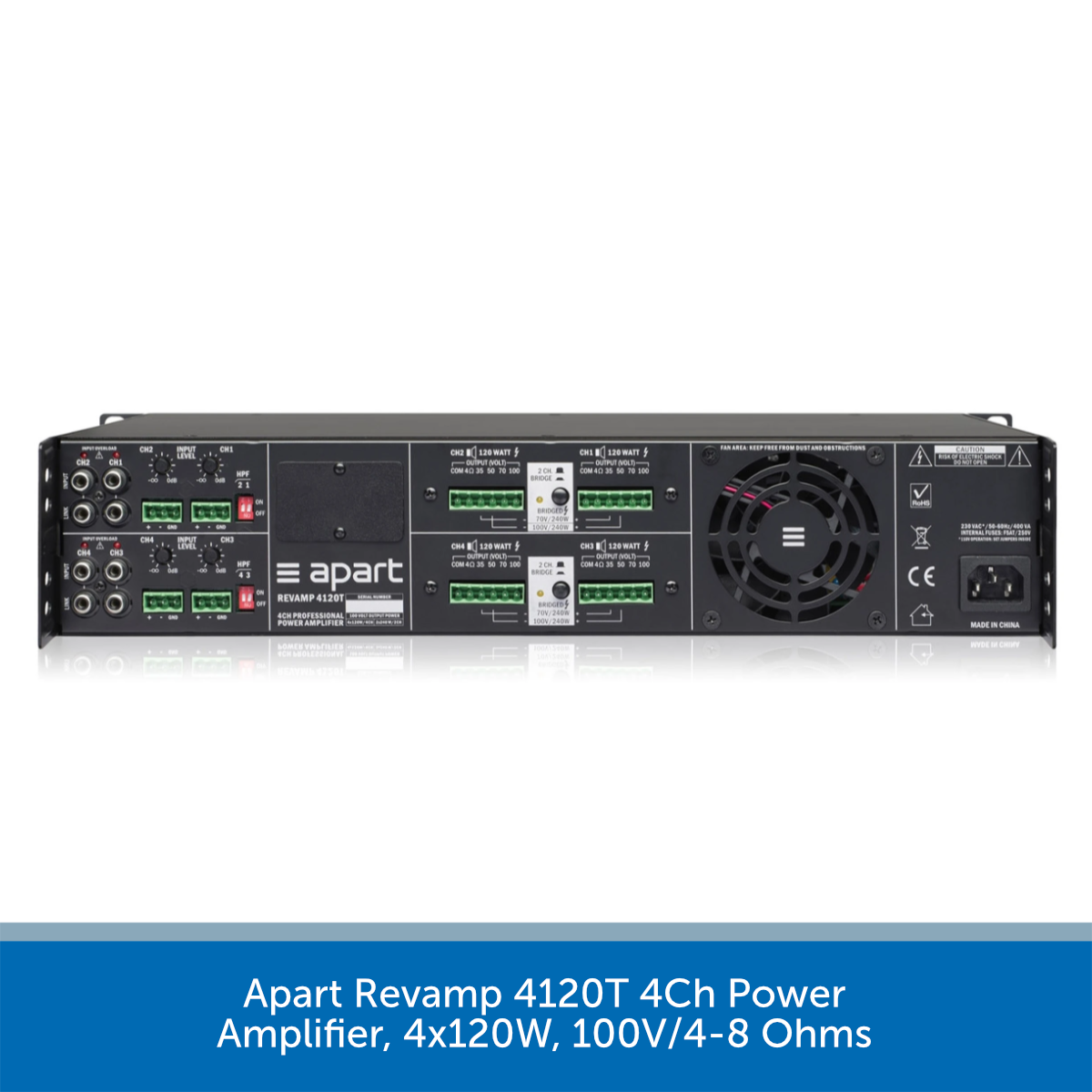

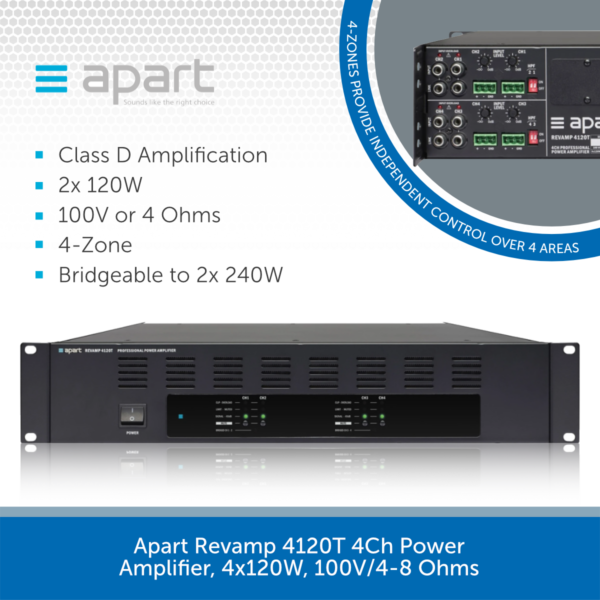

Apart Revamp 4120T 4Ch Power Amplifier, 4x120W or 2x240W, 100V/4-8 Ohms
DETAILS
The Apart Revamp 4120T is a professional 100V/4 Ohm 4Ch Class D power amplifier perfect for a range of high-end audio installations.
REVAMP4120T is a professional 4-channel digital power amplifier with 4 x 120 watts output power @ 100 volt (or @ 4 ohms), but the unit is also bridgeable to 2 x 240 watts @ 100 volt (or @ 4 ohms). The unit incorporates a high efficient SMPS power supply, outputs with efficient Class D output topology and output transformers.
REVAMP4120T is the ideal amplifier for applications with 4 zones in mono, 2 zones in stereo or even bridged dual mono or bridged stereo systems. This amplifier contains an intelligent variable speed cooling fan that only will be activated in case of emergency.
In order to match each input to its respective source the input sensitivity can be adapted to your needs. The input stage also features a build-in 250 Hz HP-filter to optimise the system for use on horn speakers whenever you would need this. Each pair of outputs can be bridged to give you 2 x 240 watts of output power!
The very intuitive front display shows what is going on with one blink of an eye. The output power is constantly under control thanks to our own made limiter that prevents annoying pumping limiter sound but yet keeps the system fully under control and you still have that dynamic sound.
Ease of use, high-tech, reliability and a wide versatility has never been as cleverly combined as in this REVAMP4120T amplifier.
Power Output:
- 4 x 120W @ 100V Line
- 4 x 120W @ 4 Ohms
- 4 x 60W @ 8 Ohms
- 2 x 240W @ 100V Line Bridged
- 2 x 240W @ 8 Ohms Bridged
Key Features:
- Professional 4-channel power amplifier
- 4 x 120 watts output power at 100 volts (4 ohms)
- Also bridgeable to 2 x 240 watts
- Incorporates a high efficient SMPS power supply
- Outputs with efficient Class D output topology and output transformers
- Build-in 250 Hz HP-filter to optimise the system for use on horn speakers
See SPECIFICATION tab for technical specs
SPECS & DOWNLOADS
Apart Revamp 4120T Power Amplifier
- Dynamic output power 4 ohms: 4 x 120 watts
- Dynamic output power 8 ohms: 4 x 60 watts
- Dynamic output power bridged 8 ohms: 2 x 240 watts
- Output power RMS 100 volts: 4 x 120 watts
- Minimum impedance load per channel: 4 ohms
- Power consumption (max): 525 watts
- Height- rack units (1U=44 mm): 2 U
- Power supply technology: switching mode power supply
- Output channels: 4
- Line input unbalanced: 4
- Power amp topology: class-D
- Cooling system: fan
- Applicable low impedance: yes
- RMS output power 4 ohms: 4 x 120 watts
- RMS output power 8 ohms: 4 x 60 watts
- Output power RMS bridged 8 ohms: 2 x 240 watts
- Output power RMS bridged 100 volts: 2 x 240 watts
- Minimum impedance load bridged per channel: 8 ohms
- 19″ (483 mm wide) rack mounting: yes
- Power supply: 115 – 230 VAC
- Output voltage tappings: 100 – 70 – 50 – 35 volts – 4 ohms
- Line input balanced: 4
- Channel separation: > 68 dB @ 1 kHz
- Frequency response (in Hz): 50 – 20 k
- Applicable in 100V: yes
- Height: 88mm
- Depth (incl front): 338mm
- Depth (build in): 330mm
- Weight: 12.1kg
Apart Revamp 4120T – PDF Download
Download the User Manual Here
