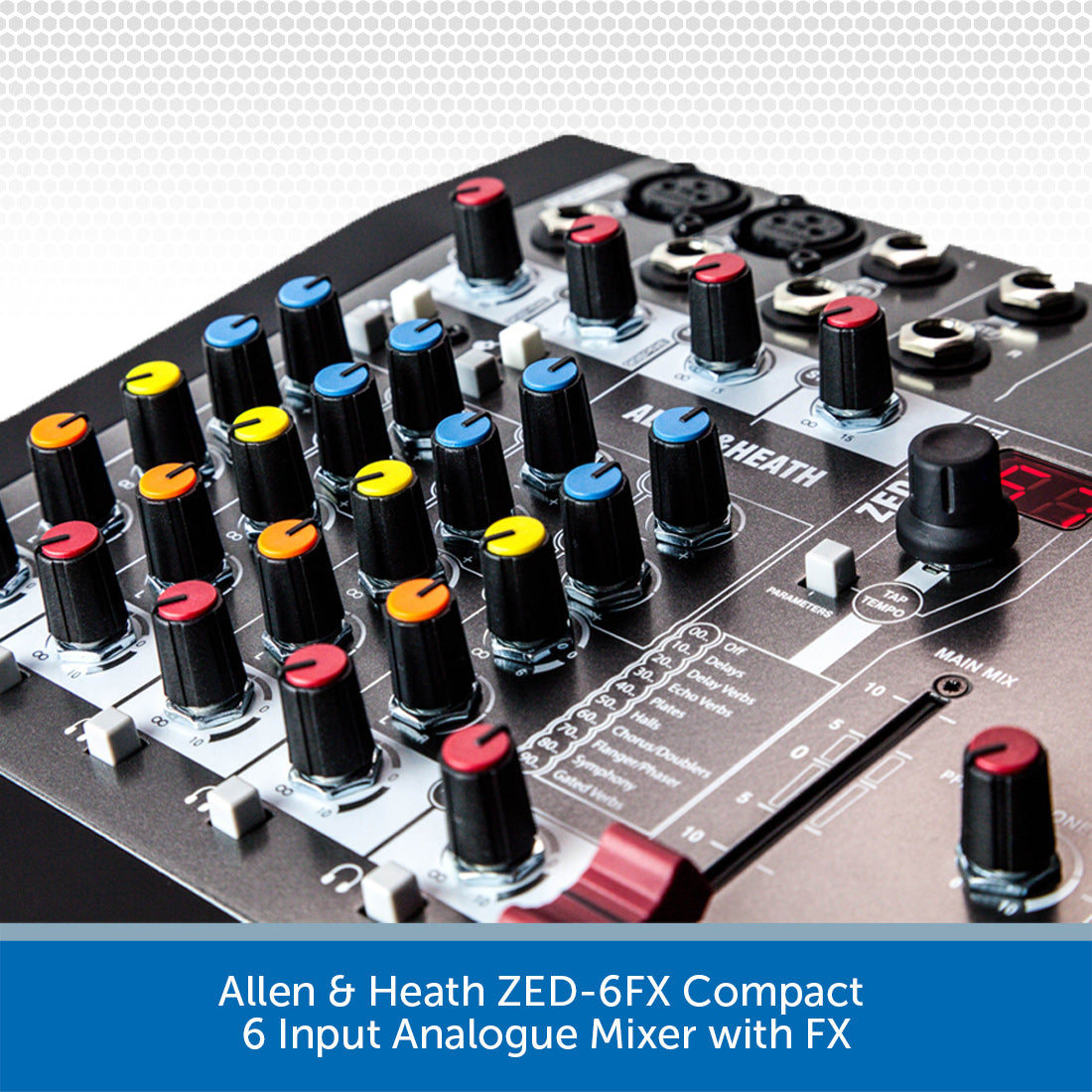

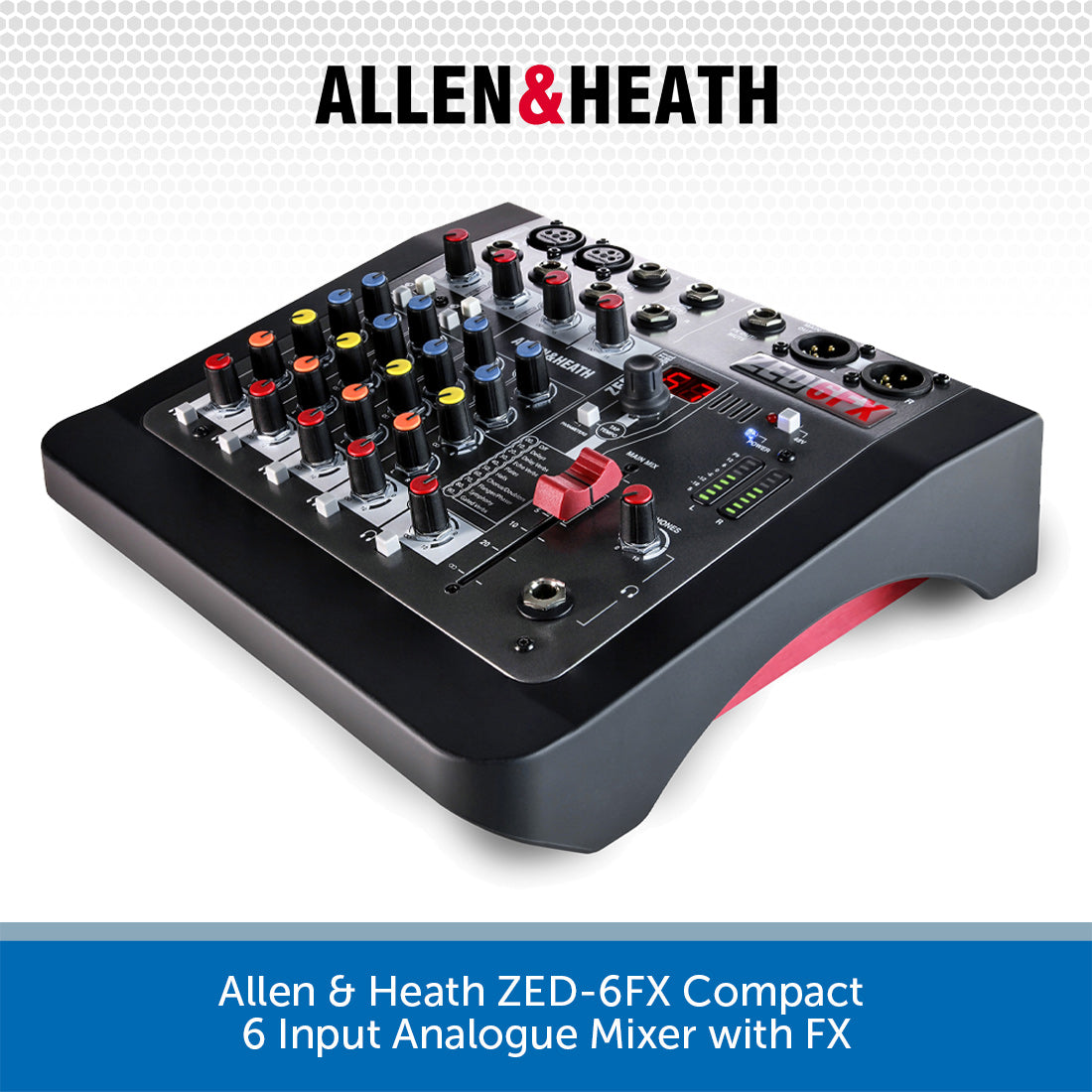

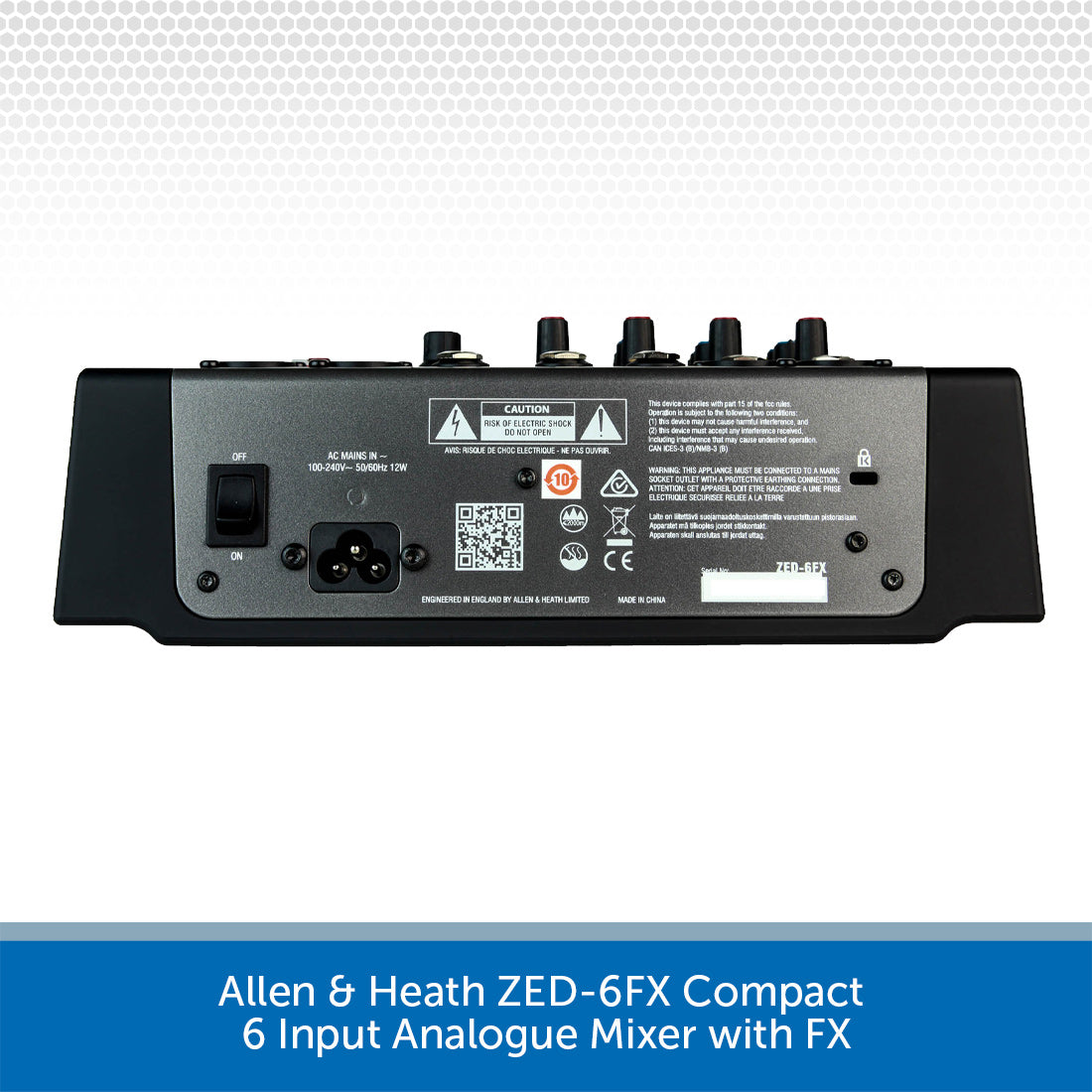

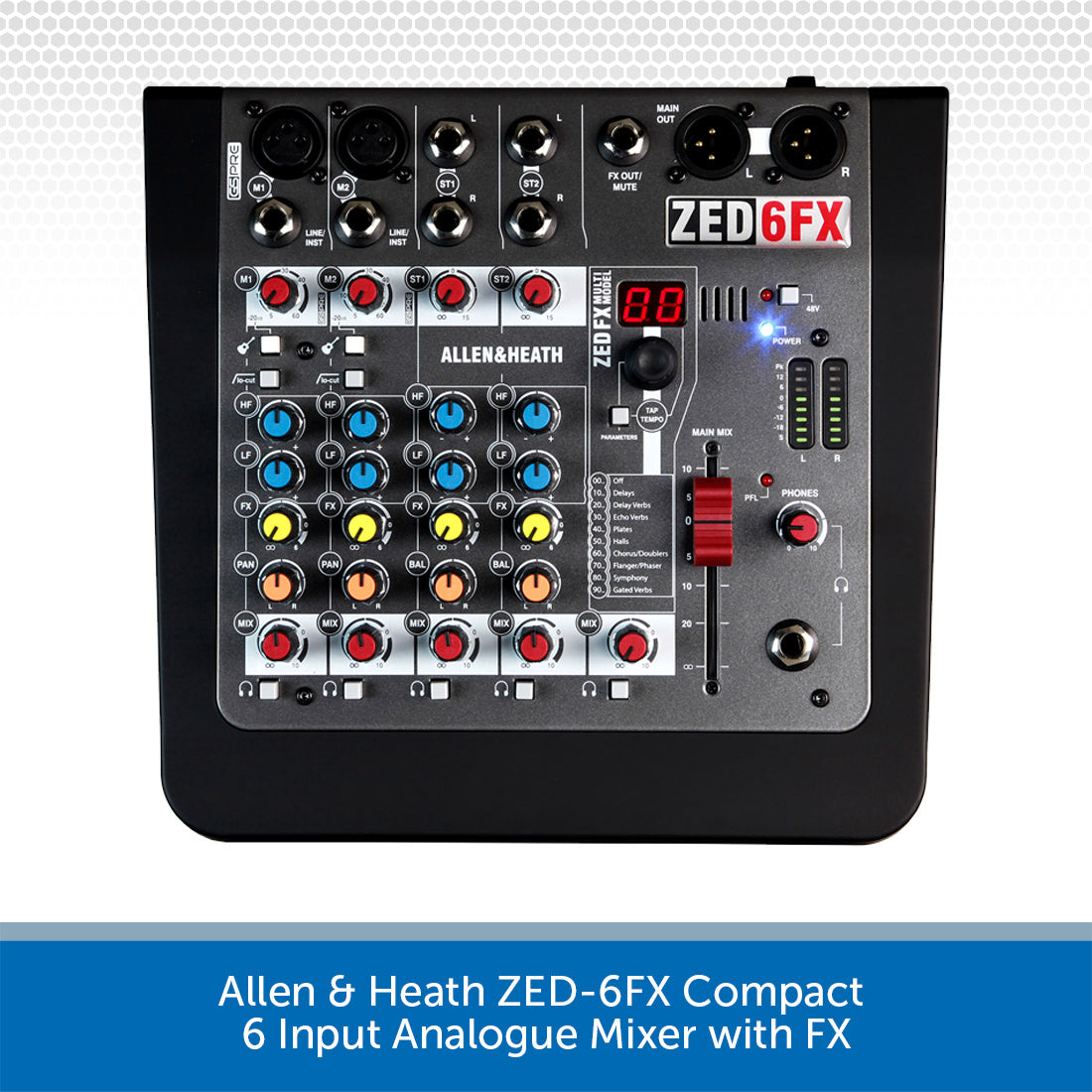

Allen & Heath ZED-6FX Compact 6 Input Analogue Mixer with FX
DETAILS
The Allen & Heath ZED-6FX is a compact, portable audio mixer designed for musicians& venues. Built-in FX provides reverb, delays and more.
ZED-6FX caters to musicians, singer-songwriters, and venues who are in search of Allen & Heath’s renowned craftsmanship and audio excellence, all packed into a compact, easily portable form. Whether you’re brainstorming musical ideas at home, delivering electrifying live performances, or capturing tracks for sharing on platforms like YouTube and SoundCloud, ZED-6FX proves to be an adaptable companion throughout your creative journey.
ZED-6FX boasts a brand new suite of studio quality reverbs and delays, painstakingly crafted to enhance your recordings and performances. Special multi-model effects provide uniquely dynamic combinations of reverbs and delays.
Key Features:
- 2 Mic / Line Inputs with separate XLR and TRS jack sockets
- 2 Stereo Inputs with TRS jack sockets
- 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
- Internal FX engine with tap tempo
- Lo-cut filter for cleaning up unwanted low frequency noise
- 2 band EQ for easy creative and corrective tonal shaping
- 60mm smooth travel fader on main mix
- XLR main outputs
- Flexible signal monitoring
- 8 LED signal metering
- 48V Phantom Power for condenser mics
- Robust internal power supply
SPECS & DOWNLOADS
Allen & Heath ZED-6FX Specifications
General
- Input
- Mono channel (XLR) Input (For Nominal 0dBu) -5dBu to –60dBu (+13dBu maximum)
- Mono channel Instrument/Line Input (Jack socket) +14dBu to -40dBu (+17dBu maximum)
- Stereo Input (Jack sockets) 0dBu nominal (control = Off to +15dB Gain)
- Output
- L/R Outputs (XLR) 0dBu (+18dBu maximum)
- FX Output (Jack socket) 0dBu (+18dBu maximum)
- Frequency Response
- Mic in to Mix L/R Out, 30dB gain 10Hz to 20kHz +0.5/-1dB
- Instrument/Line in to Mix L/R out 0dB gain 10Hz to 20kHz +0.5/-1dB
- Stereo in to Mix L/R out 10Hz to 20kHz +0.5/-1dB
- THD+n
- Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (22Hz-22kHz Filter) 0.0025%
- Mic in to Mix L/R Out, 30dB gain 1kHz (22Hz-22kHz Filter) 0.006%
- Instrument in to Mix L/R out 0dB gain 0dBu 1kHz (22Hz-22kHz Filter) 0.03% 2nd Harmonic
- Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22Hz-22kHz Filter) 0.0025%
- Headroom
- Analogue Headroom from nominal (0Vu) 18dB
- Noise
- Mic Pre EIN @ max gain 150R input Z (22Hz-22kHz Filter) -127dBu
- Mix L/R out, L/R fader = 0, Channel Levels min (22Hz-22kHz Filter) -94dBu
- Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz-22kHz Filter) -91dBu
Physical & Dimensions
- Height: 88.9mm
- Width: 249mm
- Depth: 236.4mm
- Weight: 1.4kg
