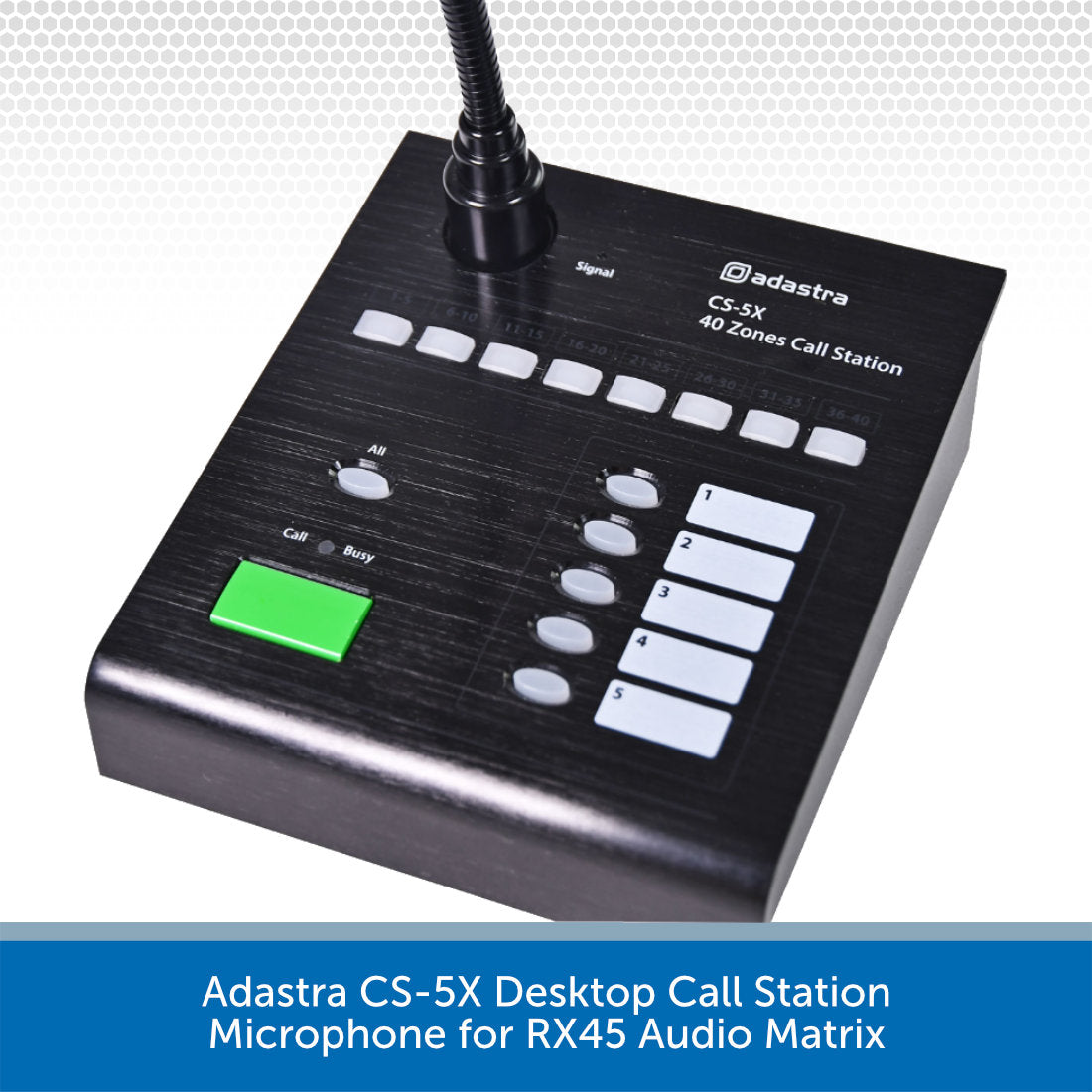

Adastra CS-5X Desktop Call Station Microphone for RX45 Audio Matrix
DETAILS
The Adastra CS-5X Call Station is an essential component for creating a versatile and efficient paging system when used with the RX45 Audio Matrix.
Designed for intuitive use and seamless integration, this call station allows for individual and multiple zone paging across a network of up to 40 distinct zones, making it ideal for complex audio management in large environments.
The CS-5X features zone assign buttons that enable clear and direct paging to any combination of up to 5 zones of the RX45 unit. When activated, the Page button mutes the audio playback in selected areas, ensuring that your announcements are heard clearly. Additionally, users can choose from 8 different paging chimes to customize alerts and notifications.
For added flexibility, the CS-5X includes an AUX audio input for pre-recorded messages and alerts, making it easy to deliver consistent announcements. It also features Group buttons that allow paging across up to 8 linked RX45 units, supporting an expanded system with a total of up to 40 pageable zones.
The call station is custom-designed to work seamlessly with the RX45 Audio Matrix, connecting via the supplied RJ45 cable for both power and signal. For installations where the RX45 is located up to 1km away, an optional 24V DC power input is available, ensuring reliable operation even at extended distances.
Adastra CS-5X Key Features:
- Custom Design: Specifically created for the RX45 Audio Matrix.
- Flexible Paging Options: Allows for individual or multiple paging across up to 40 zones.
- Easy Connection: Power and signal via RJ45 cable; optional 24V DC input for distances up to 1km.
- Customizable Alerts: Choice of 8 paging chimes and AUX input for pre-recorded messages.
- Expandable System: Group buttons enable paging across up to 8 linked RX45 units.
In the Box:
- CS-5X call station base unit
- Adjustable gooseneck condenser microphone
- Foam pop shield
- RJ45 connection lead
SPECS & DOWNLOADS
Download the PDF User Manual HERE >
Adastra CS-5X Call Station Specifications
- Power supply: 24Vdc, 500mA from RJ45 or optional adaptor
- Max. connection length: 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
- Capsule: Back electret condenser
- Polar pattern: Cardioid
- Controls: Aux/Mic/Chime levels, chime DIP switches, group/zone/page buttons
- Connectors: XLR, RJ45 (to RX45), 24Vdc power jack, 3.5mm aux in
- Frequency response : -3dB: 150Hz – 20kHz
- Input level: Mic: -46dBV, Aux: -10dBV
- Input impedance: Mic: 600 Ohms, Aux: 50k Ohms
- Output level: 10dBV
- Output impedance : balanced: 600 ohms
- S/N ratio: -60dB (all channels selected)
- Interface: RS-485 control
- Zone assign: 5 zones per RX45, any combination across 8 Group IDs
- Dimensions: 450 x 140 x 125mm
- Weight: 653g
