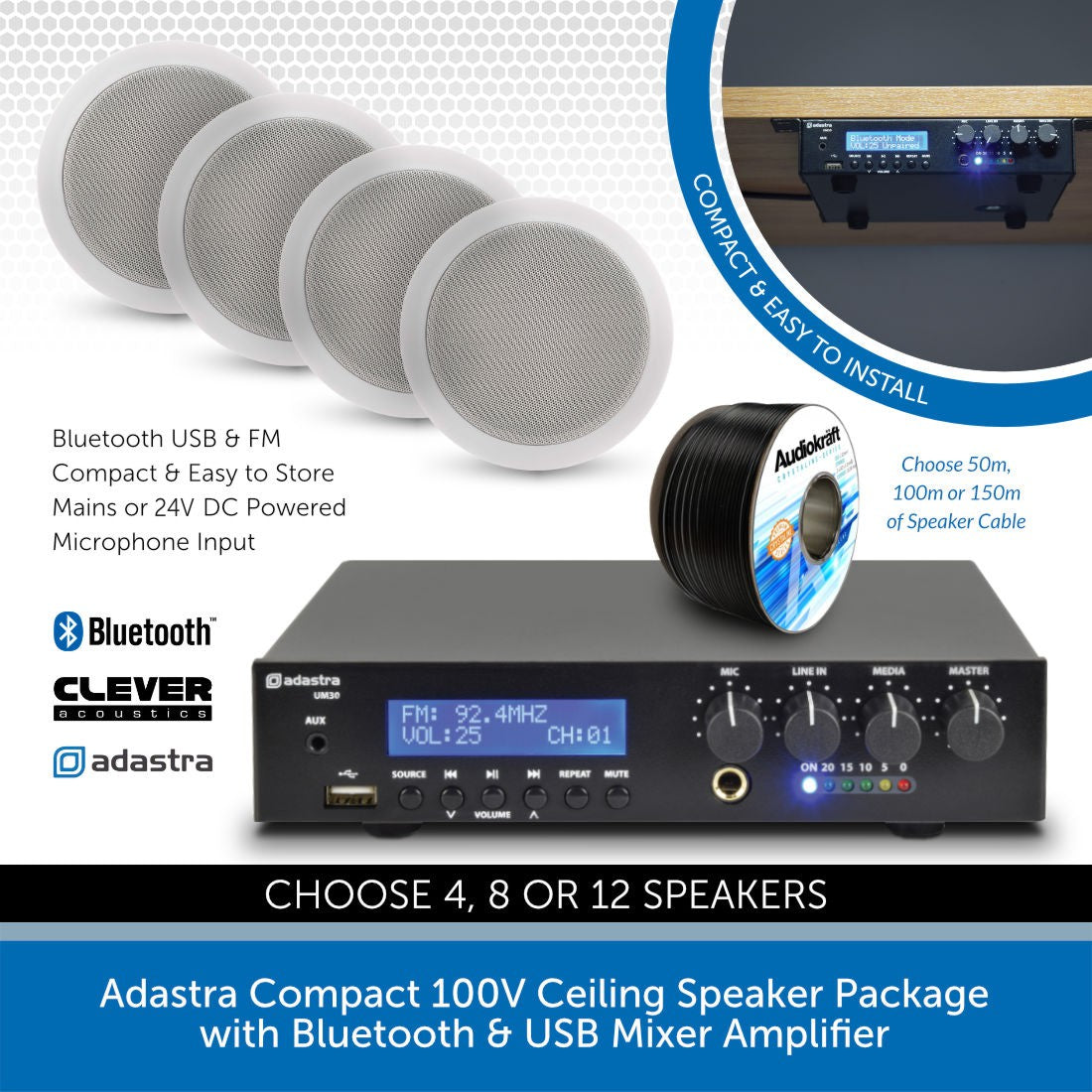

Adastra Compact 100V Ceiling Speaker Package with Bluetooth & USB Mixer Amplifier
DETAILS
Our ultra-compact 100V Line Adastra UM-Series Mixer Amplifier with Bluetooth & USB is perfectly paired with up to 12 Clever Acoustics 6W Ceiling Speakers.
This kit is an Ideal choice for providing a high-quality sound solution where space is at a premium, or where a larger amplifier is not desired or practical. It brings together the Adastra UM-Series amplifier – with its small footprint, array of source inputs and ability to be used as either a low-impedance or 100V Line unit – and high-class, easy-ti-install Clever Acoustics CS 69 LC 6″ ceiling speakers.

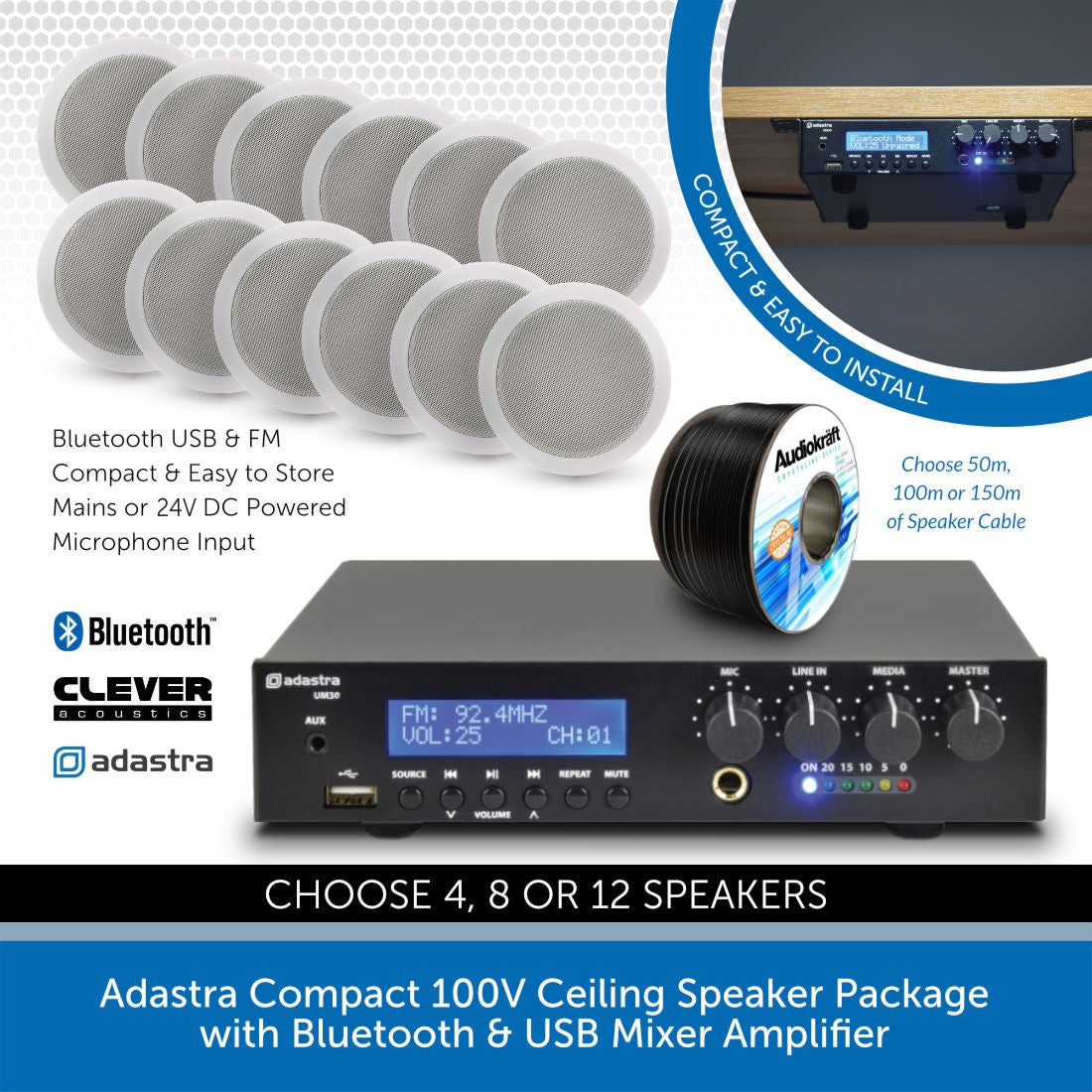

Choose from 4, 8 or 12 speakers, with the option to supplement the included 50m speaker cable with an extra 50m or 100m depending on the size of your installation.
Included in package
-
Adastra UM-Series 100V/8ohm Mixer Amplifier (953.173/176/179)
-
4, 8 or12 Clever Acoustics CS 69 LC 6″ Ceiling Speakers (CRAM10)
-
50m AudioKraft Premium 2-Core Speaker Cable (AK-OUT-BK)
Adastra UM-Series 100V Mixer Amplifier with Bluetooth
The Adastra UM-Series amplifiers offer high-quality sound for both music and public announcements. They can be used as either 100V Line or standard low-impedance power amplifiers and can be powered via mains lead or 12V battery.
The UM-Series feature a built-in USB audio player, FM radio tuner and Bluetooth wireless receiver as well as RCA phono input and front-facing AUX input allowing connection of an external media player such as a laptop, TV or CD player.
The UM-series amplifiers can easily be rack-mounted in pairs or fixed to a wall or beneath a counter or worktop.
Main Features
- Suitable for fixed and mobile PA applications
- Efficient Class-D amplifier design
- Ultra-compact form factor
- Internal USB/FM/BT audio player
- Microphone input
- 240V or 12V power operation
- 100V line or 8 Ohms operation
Clever Acoustics CS 69 LC 6″ Ceiling Speakers
The Clever Acoustics CS 69 LC are quality 6-inch 100V Line ceiling speakers that boast a discreet and slimline design, dual-cone driver for extended upper-frequency response and multiple power tappings (6W, 3W & 1.5W).
Installing the CS 69 LC speakers is effortless thanks to spring clips and an included cut-out template. They are a complete solution for offices, shops, cafes and other commercial properties with suspended false ceilings for easy access.
Main Features
- 3-year warranty
- Dual cone driver for extended upper-frequency response
- Multiple power taps
- Low profile design blends into environments
- ABS baffle with metal grille
- Spring clip mounting for easy installation
- Supplied with template to aid installation
SPECS & DOWNLOADS
Adastra UM30 (for 4 speaker kits)
- Power supply: 170-264Vac, 50Hz (IEC)
- Amplifier: construction: Class D + transformer output
- Audio source: Internal USB/FM/BT player
- Inputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
- Line output: 2 x RCA (mono)
- Speaker outputs: Screw terminals – 100V / 8 Ohms / Com
- DC power: 24Vdc screw terminals
- Mute: 24V relay contacts
- THD: <0.4% @ 1kHz
- Input impedance: 1k Ohms (mic/line)
- Input sensitivity: -10dB (line), -45dB (mic)
- SNR: 80dB (line), 75dB (mic)
- Frequency response: 100Hz – 18kHz
- Output power: rms: 30W
- Alarm output: N/A
- Dimensions: 249 x 210 x 44mm
- Weight: 2.35kg
Adastra UM60 (for 8 speaker kits)
- Power supply: 170-264Vac, 50Hz (IEC)
- Amplifier: construction: Class D + transformer output
- Audio source: Internal USB/FM/BT player
- Inputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
- Line output: 2 x RCA (mono)
- Speaker outputs: Screw terminals – 100V / 8 Ohms / Com
- DC power: 24Vdc screw terminals
- Mute: 24V relay contacts
- THD: <0.4% @ 1kHz
- Input impedance: 1k Ohms (mic/line)
- Input sensitivity: -10dB (line), -45dB (mic)
- SNR: 80dB (line), 75dB (mic)
- Frequency response: 100Hz – 18kHz
- Output power: rms: 60W
- Alarm output: Fog, Siren & Alert Generator
- Dimensions: 249 x 210 x 44mm
- Weight: 2.47kg
Adastra UM90 (for 12 speaker kits)
- Power supply: 170-264Vac, 50Hz (IEC)
- Amplifier: construction: Class D + transformer output
- Audio source: Internal USB/FM/BT player
- Inputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
- Line output: 2 x RCA (mono)
- Speaker outputs: Screw terminals – 100V / 8 Ohms / Com
- DC power: 24Vdc screw terminals
- Mute: 24V relay contacts
- THD: <0.4% @ 1kHz
- Input impedance: 1k Ohms (mic/line)
- Input sensitivity: -10dB (line), -45dB (mic)
- SNR: 80dB (line), 75dB (mic)
- Frequency response: 100Hz – 18kHz
- Output power: rms: 90W
- Alarm output: Fog, Siren & Alert Generator
- Dimensions: 300 x 210 x 44mm
- Weight: 3.02kg
Clever Acoustics CS 69 LC Ceiling Speakers
- Input: 70V, 100V
- Power taps @ 100V: 3W, 6W, 9W
- Power taps @ 70V: 1.5W, 3W, 4.5W
- Impedance: 1.1 K?, 1.7K?, 3.3K?
- Sensitivity (1W/1m): 91dB (±3dB)
- Maximum SPL (Rated W/1m): 101dB
- Frequency response: 80Hz-18kHz
- Drivers: 6″ full range dual cone
- Connections: Flying leads
- Cutout: 170mmØ
- Dimensions: 80 x 200mmØ
- Weight: 0.9kg
Double Insulated Speaker Cable – 50m
- CSA: 1.32mm²
- Strands: 2 x (42 x 0.2mmØ)
- Current: 15A max.
- Sheath: Black
- Length: 50m
- Polarity: White
