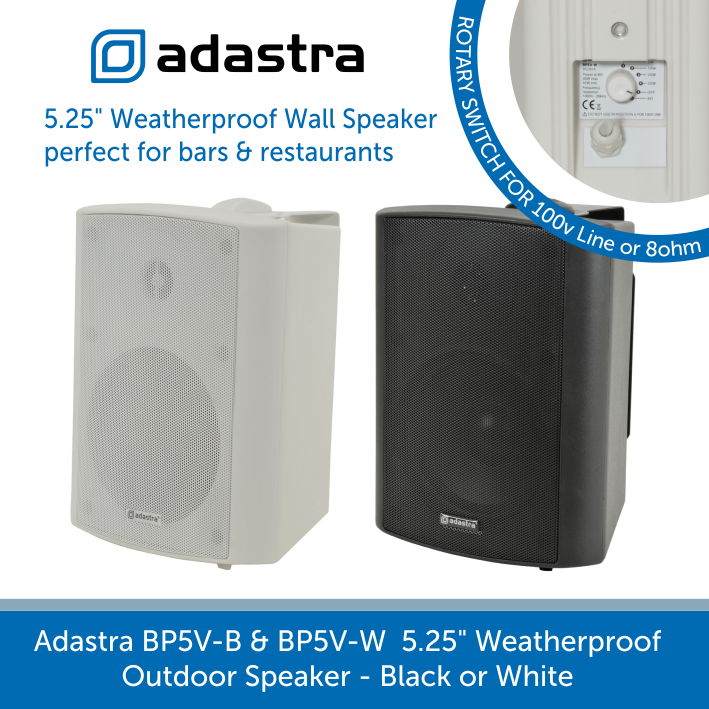

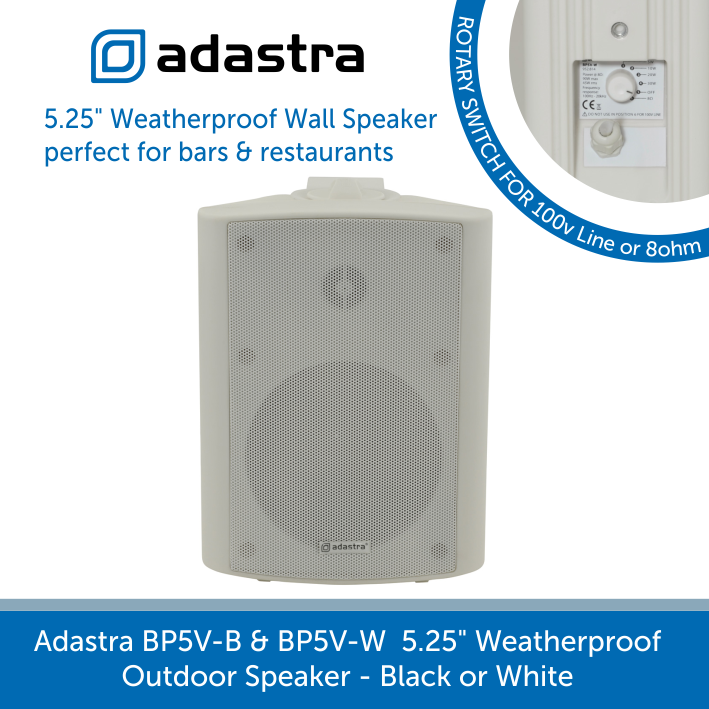

Adastra BP5V-B & BP5V-W 5.25″ Outdoor Weatherproof Wall Speaker, 100V Line or 8 Ohm
DETAILS
Adastra BP5V-B & BP5V-W 100V Line or 8 Ohm Outdoor Weatherproof Wall Speaker for background music & public address audio systems.
The Adastra BPV Series weatherproof speakers are designed to offer high-quality sound for 100V Line or low-impedance installations.
These professional outdoor wall speakers are IP54-rated and are protected from dust ingress and water spray from any direction.
The Adastra BPV speakers are commonly installed in cafe and pub gardens, entrances to buildings, outdoor sports facilities, garden centres and environments alike.
The BPV Series is made up of 4 models from the compact BP3V and BP4V that are ideal for where space is at a premium to the larger BP5V and BP6V models that are great for background music and voice in bar areas and beer gardens etc.
The BPV-series speakers are each supplied with a wall-mounting bracket which
allows 90° lateral adjustment. This allows for multiple speakers placements both vertically and horizontally.
BPV-series speakers are connected via a hard-wired cable from the rear
of the enclosure. We recommend terminating the cable in a weatherproof junction box.
Adastra BP5V-B & BP5V-W Key Features:
- Water-resistant PP cone main driver
- Rotary selector switch for 100V line tappings or 8 Ohms operation
- Wall mounting bracket supplied
- Alternative M6 threaded mounting points
- 1m hard-wired speaker cable connected
- Supplied singly
- Black or White available
SPECS & DOWNLOADS
Adastra BP5V-B & BP5V-W Specifications
- Colour: Black or White
- Woofer: 130mmØ (5.25”) polypropylene cone
- Tweeter: 25mm (1”) balanced dome
- Frequency response: 100Hz – 20kHz
- Power max.: 8 Ohms:90W
- Power rms: 8 Ohms: 45W
- SPL @ 1W/1m: 89dB
- Impedance: 333, 500, 1k, 2k Ohms
- Tappings: 30W, 20W, 10W, 5W + 8 Ohms
- Dimensions: 180 x 235 x 175mm
- Weight: 2.38kg
- IP Rating: IP54
Adastra BP5V-B & BP5V-W PDF User Manual
Download HERE >
