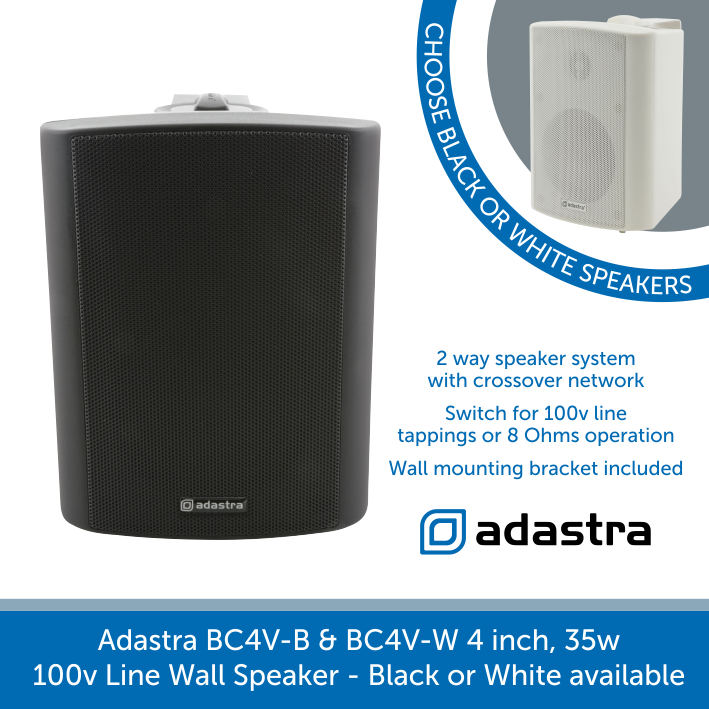

Adastra BC4V-B & BC4V-W 4″ Indoor Wall Mount Speaker, 100V Line or 8 Ohm
DETAILS
Adastra BC4V-B & BC4V-W 100V Line or 8 Ohm Indoor Wall Speakers for background music & public address audio systems.
The Adastra BCV Series indoor wall speakers are designed to deliver high-quality sound for 100V Line or low-impedance installations.
These professional installation speakers are designed for a variety of commercial installations that require good-quality audio playback such as cafes, bars, restaurants, hotels, retail stores and shops etc.
The Adastra BCV Series is composed of 4 models from the ultra-compact BC3V perfect for environments where space is at a premium to the larger BC5V and BC6V’s that are great for bar areas and function rooms.
The BCV-series speakers are each supplied with a wall-mounting bracket which allows 90° lateral adjustment. This allows for multiple speaker placements both vertically and horizontally.
The Adastra BCV speakers are designed for use with 100V Line audio systems and all have multiple power tappings for a variety of applications. They do also have an 8 Ohm power option for low-impedance systems.
The BCV Series speakers are quick and easy to install. Speaker cable is connected via 2 spring terminals at the rear of the speaker.
Adastra BC4V-B & BC4V-W Key Features:
- Perfect for background music and voice
- 2-Way speaker system with crossover network
- Rotary selector switch for 100V Line tappings or 8 Ohms
- Wall mounting bracket supplied
- Spring terminal connection
- Available in Black or White
SPECIFICATION
Adastra BC4V-B & BC4V-W Specifications
- Model: BC4V-B and BC4V-W
- Colour: Black or White
- Woofer: 100mmØ (4”) reinforced paper cone
- Tweeter: 25mm (1”) balanced dome
- Frequency response: 110Hz – 20kHz
- Power max. : 8 Ohms: 70W
- Power rms : 8 Ohms: 35W
- SPL @ 1W/1m: 88dB
- Tappings: 20W, 10W, 5W, 2.5W + 8 Ohms
- Impedance : 100V: 500, 1k, 2k, 4k Ohms

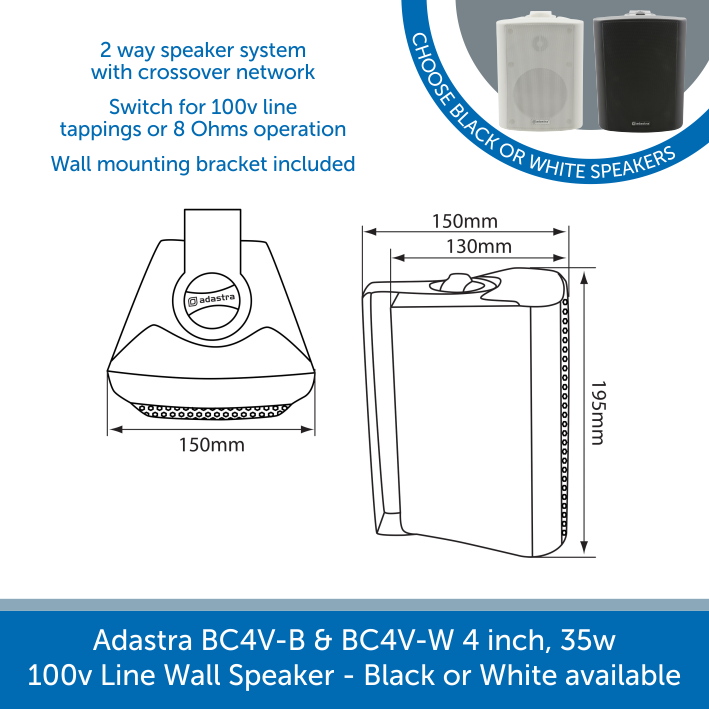

- Dimensions: 150 x 195 x 150mm
- Weight: 1.63kg
Adastra BC4V-B & BC4V-W PDF User Manual
Download HERE >
ABOUT ADASTRA
For over 60 years Adastra has serviced the needs of the background audio market as a fully established brand name, celebrated for quality and excellence, and they continue to develop their range in order to remain at the forefront of the industry.
Founded in 1949, Adastra has earned a great reputation for delivering high-quality background audio systems.
Their products have been created with you the user in mind, offering a flexible and modular approach to installation of music background systems.
With a comprehensive range of associated products also available, including speaker brackets, rack cabinets and microphones. You can see why Audio Volt and Adastra are a match made in heaven.
