Adastra Background Music Announcement System with Bluetooth, x6 Wall Mount Speakers

Speaker Colour	Clear

DETAILS

Adastra x 6, 5.25 inch Speaker high quality background music sound system with a Adastra Paging Microphone. Available with white or black speakers.

This Adastra background music/announcement system is perfect for installing into the majority of commercial environments that require a microphone solution to make announcements, such as offices, warehouses, shops and supermarkets.

The RM120B amplifier can be rack mounted into any 2U or greater rack cabinet. This means it can be positioned out of sight/reach from the public (rack ears included).

Comes with an integrated FM radio tuner, USB and SD card inputs and bluetooth connectivity. It’s also easy to add a media player or CD player to this package and the system is ready to go.

Also at the rear of the speakers you can select the wattage tappings (30W, 20W, 10W, 5W or 8 Ohms) to balance to the system to your desired level.

All equipment is easy to install and delivers a clear and comfortable sound making it ideal for any commercial set up.

Included in package

1x Adastra RM120 120W 100V Line Mixer Amplifier with Bluetooth & FM Radio
6 x Adastra BC5V-B / BC5V-W 100V Line Wall Speakers – 5.25″ diameter (choose from black or white)
1x Monacor PDM-302 Desktop Paging Microphone
1x 100-meter Adastra Premium Double Insulated 100V Line Speaker Cable, 0.75mm

Easy Installation

Installers will be pleased to know that the amplifier includes rack ears so it can be mounted in a rack cabinet or simply sat on a shelf.

The speakers include a pre fixed wall bracket that can be installed vertically or horizontally so you can fix them pretty much anywhere, also at the rear of the speaker you can select the wattage tappings to balance to the system to your desired level

Adastra RM120 5 channel 100V Mixer Amp with Bluetooth

Commercial grade 120w – 100V line amplifier with an integral mixer in a 2U rack-mountable housing. Featuring 5 input channels which include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs, of which one can be fed from the internal USB/SD card audio player.
Bass & Treble EQ and Master volume control the overall output, which can power either low impedance or 100V line speakers. Generous features and versatility making a comprehensive control centre for commercial sound installations.

Main Features

5 input channels
Bluetooth Receiver: (max 5 meters)
Integral USB, SD card input
FM Radio Tuner
8 ohms or 100V line speaker output
2U 19″ rack mountable
Supplied with rack-mount ears

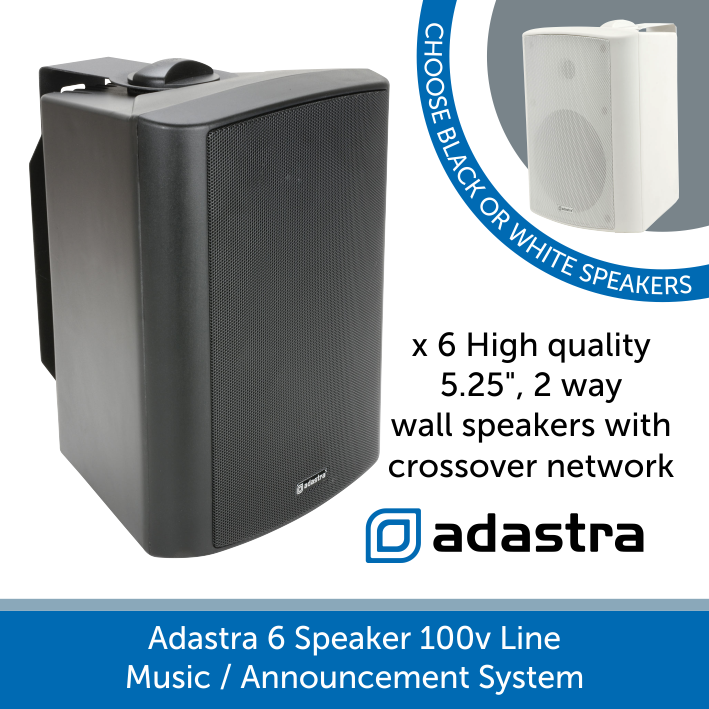

Adastra Wall Speakers (Black BC5V-B) or (White BC5V-W)

5.25″ diameter; High quality wall speakers with an easy to use wall bracket suitable for mounting into almost any material. All metal, flush fit grille fitted with quality speakers and 100V line transformer tapped at 5, 10, 20, 30W or 8 Ohms

Main Features

2 way speaker system with crossover network
Rotary selector switch for 100V line tappings or 8 Ohms operation
Wall mounting bracket supplied
Alternative M6 threaded mounting points
Spring terminal connection
Black or White available

Monacor Desktop Paging Microphone

The Monacor PDM-302 Desktop Microphons is perfect for announcements, emergency messages and order information in any commercial environment.

Features a low-noise push-to-talk switch and an adjustable gooseneck.

Adastra Premium Double Insulated 100V Line Speaker Cable – 100m

1x 100m 2 core 100v line rated speaker cable suitable for 100V line PA speaker installations. Stranded copper conductors with red and black inner insulation and overall black PVC sheath. Red and black conductors.

SPECS & DOWNLOADS

Adastra RM120 Mixer Amplifier Specifications

Mains power: 110/240Vac, 50/60Hz (IEC)
DC power: 24Vdc (screw terminals)
Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced): -53dBV
Input impedance : mic: 1 5k Ohms
Input sensitivity : line (unbalanced): -15dBV (-18.5dBV line 5)
Input impedance : inputs: 2-5 1k Ohms
Line output: RCA
Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equalizer : bass: 100Hz ±10dB
Equalizer : treble: 10kHz ±10dB
Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
Phantom power: +20V (mic 1 input)
Audio source: USB/SD player, FM tuner and Bluetooth receiver
Emergency control: 24V contacts – mute all except Mic.1 when triggered
Bluetooth version: 2.0
THD: <1.0%
Power : output: 120Wrms
Speaker : outputs: 100V / 8 Ohms / COM terminals
Weight: 8.36kg
Dimensions: 433 x 320 x 89mm

Adastra BC5V Wall Speaker Specifications

Woofer: 130mmØ (5.25”) reinforced paper cone
Tweeter: 25mm (1”) balanced dome
Frequency response: 100Hz – 20kHz
Frequency response: 100Hz – 20kHz
Power max.: 8 Ohms90W
Power rms: 8 Ohms45W
SPL: @ 1W/1m89dB
Tappings: 30W, 20W, 10W, 5W + 8 Ohms
Impedance: 100V500, 1k, 2k, 4k Ohms
Dimensions: 180 x 235 x 175mm
Weight: 2.38kg

Monacor PDM-302 Paging Mic Specifications

Type: desktop microphone
Transmission method: cable
Polar pattern: cardioid
System: dynamic
Audio frequency range: 60–12,000 Hz
Nominal impedance: 600 Ohm
Sensitivity: 3.2 mV/Pa
Admiss. ambient temp.: 0–40 °C
Dimensions: 120 x 60 x 160 mm (console housing), 310 mm (length of gooseneck)
Weight: 1.1 kg
Cable: 1 m (Jack) / 5m (XLR)
Connection: Male XLR

Double Insulated Speaker Cable Specifications

Strands: 2 x (12 x 0.2mmØ Cu + 12 x 0.2mmØ CCA)
Dimensions: 7mmØ
Current: 6A max.
Sheath: Black PVC
Length: 100m
