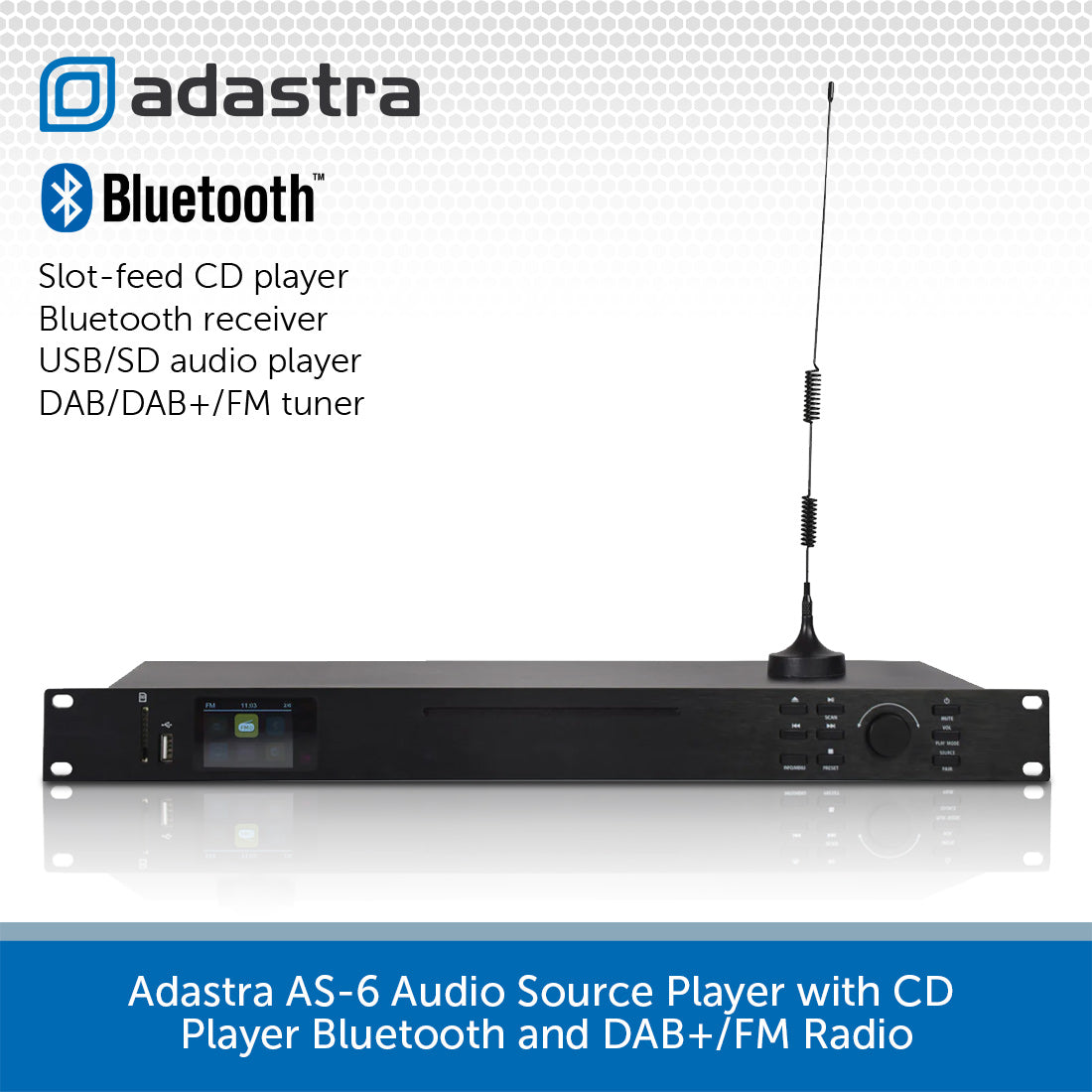

Adastra AS-6 Audio Source Player with CD Player Bluetooth and DAB+/FM Radio
DETAILS
The Adastra AS-6 is a remote-controlled sound source with CD Player, Bluetooth, DAB+ Radio & MP3 player; perfect for a range of background music systems.
1U rack-mountable audio source with 6 different playback modes all in a single, compact unit. The clean and minimalist front panel is home to a full colour TFT display, which shows mode and settings information (including a clock in standby mode). Controls on the right side of the front panel operate the menus and playback, along with the included remote control handset.

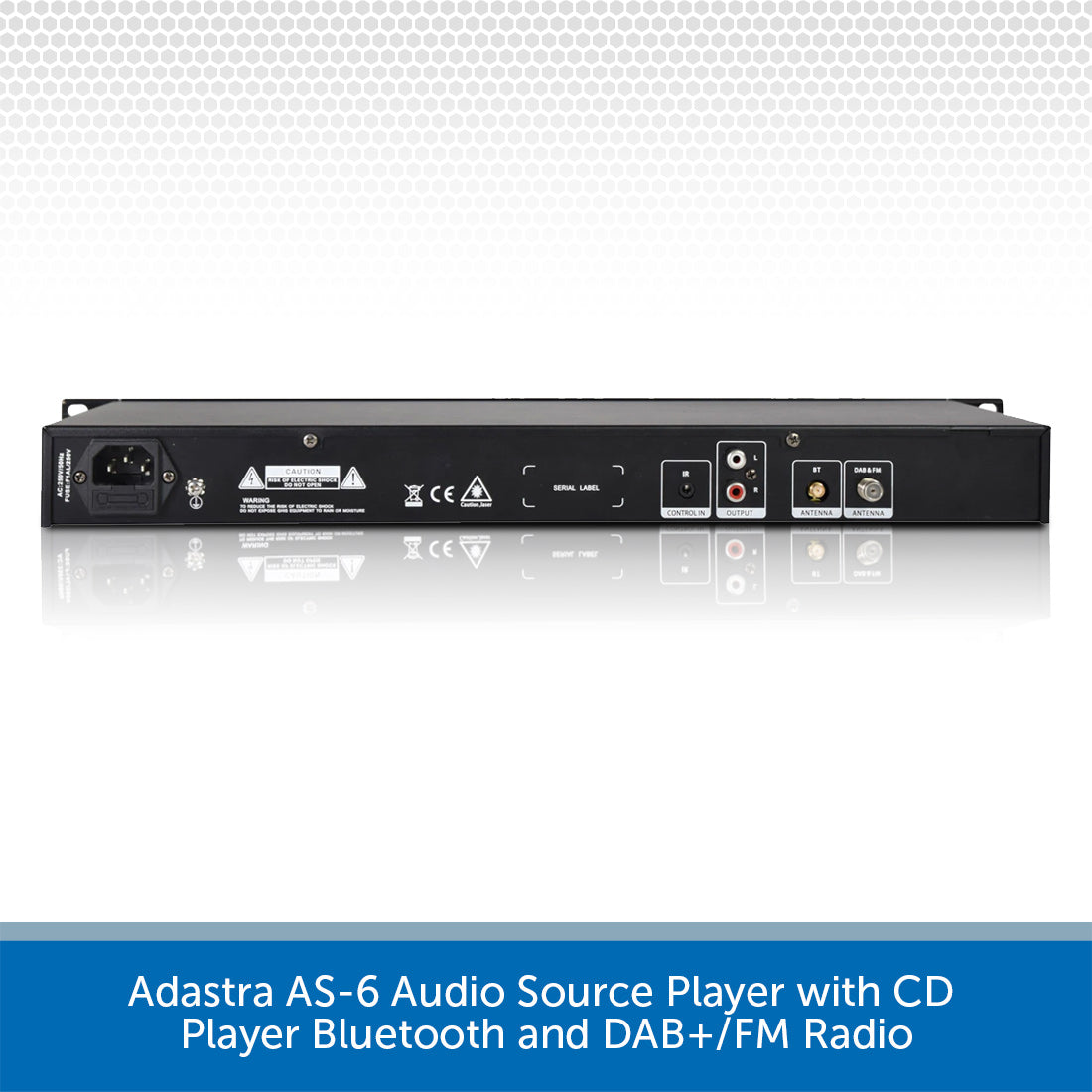

Modes include a slot-feed CD player, USB player, SD card player, FM tuner, DAB/DAB+ tuner, and Bluetooth® receiver. A compact magnetic spring antenna is provided for FM and DAB+ reception which connects to an F socket on the AS-6 rear panel, or alternatively connect this socket to a roof-mounted aerial for best possible reception. A comprehensive solution for playback in any sound system installation requiring background music and other continuous program material.
Adastra AS-6 Key Features:
- Slot-feed CD player
- Bluetooth receiver
- USB/SD audio player
- DAB/DAB+/FM tuner
- Supplied with magnetic DAB/FM antenna
- Supplied with handheld remote control
SPECS & DOWNLOADS
Download the User Manual HERE
Adastra AS-6 Specifications
-
Power supply: 230Vac, 50Hz (IEC)
-
Fuse: F1AL 250V (5 x 20mm)
-
Power consumption: 15W
-
Outputs: L+R RCA (line level)
-
Modes: CD, USB, SD, FM, DAB, Bluetooth
-
Frequency response: 20Hz – 20kHz (CD), 40Hz – 16kHz (USB/SD/DAB/FM/BT)
-
THD: 0.03% (CD), 0.05% (USB/SD), 0.10% (DAB/FM)
-
SNR: 75dB (CD/USB/SD), ?65dB (FM)
-
Tuning range: 87.5 – 108MHz (FM) ,160MHz – 240MHz (DAB/DAB+)
-
Dimensions: 482 x 167 x 44mm (1U)
- Weight: 2.35kg
