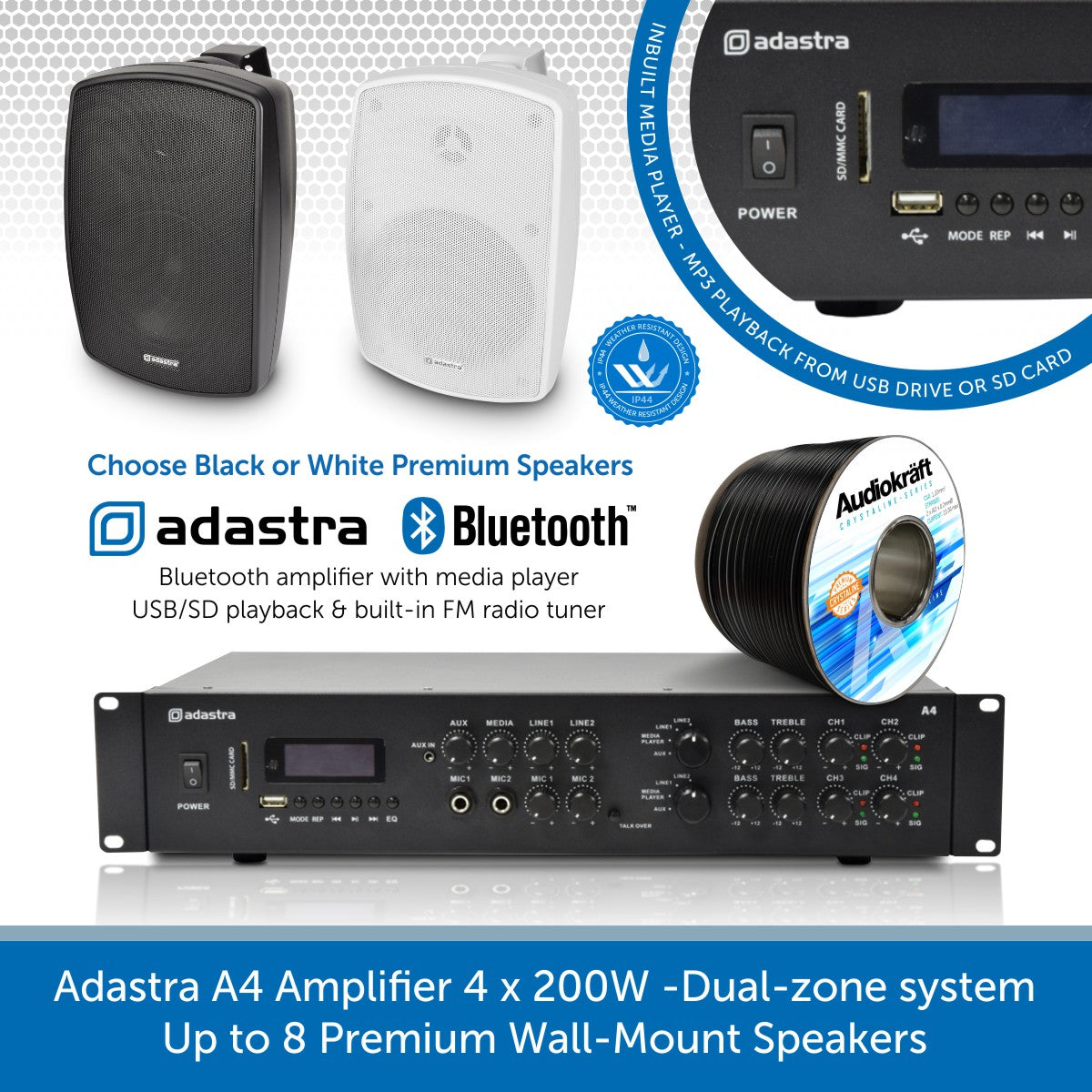

Adastra A4 Amplifier 4 x 200W with Premium Wall-Mount Speakers – Dual-zone system!

DETAILS

This high-quality dual-zone Bluetooth music system comes complete with the more powerful Adastra A4 4 x 200W Stereo Amplifier & up to 8 Premium Wall-Mount Speakers in black or white

A superb sounding music system offering dual-zone PA with audio source selection & volume control for each zone: designed for multi-zone audio installations into bars, restaurants, retail environments, and homes etc.

The Adastra A4 Mixer Amplifier features Bluetooth Connectivity, an FM radio tuner, and a USB/MP3 media player offering seamless audio streaming from any audio device.

Key Features:

• High-powered 4x200W Music System
• 2-Zone control – Audio source selection & volume control
• Bluetooth, FM Radio Tuner, USB/MP3 Media Player
• Supplied with 6 or 8 x Premium Wall-Mount Speakers
• Perfect for any home or commercial environment
• Ideal for high-end music playback
• Quick and easy to install

Adastra A4 4 x 200W Mixer Amplifier

Fully featured PA amplifier with 2 independent stereo zone outputs and mixer section for 2 microphones and a stereo audio source.

An inbuilt media player section offers playback of MP3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner.

A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to both output zones at all times.

2 pairs of speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers on each of the 4 channels to deliver up to 4 x 200W.

Designed to offer installers a comprehensive dual-zone PA for bars, restaurants and function rooms.

High-Quality IP44 Rated Stereo Wall-Mount Speakers

5.25 inch – (50W rms, Dimensions 255 x 163 x 160mm)

Included in this premium speaker system are high-quality stereo wall-mount speakers that feature an excellent full-range sound sure to fill every room.

The stereo speakers come supplied with adjustable wall-mounting brackets which are quick and easy to install. Alternatively, you can sit the speakers on a bookshelf or cabinet.

• IP44 Rated weatherproof – See HERE> for IP ratings guide
• 8 Ohm operation
• 2-way speaker system with crossover network
• High-quality sound reproduction
• Protective cover for spring terminals
• Pan & tilt mounting brackets included

AudioKraft Crystaline Series is a premium range of speaker cable.

With 42 strands per wire its perfect for this dual zone system.

This professional-grade audio cable is designed to bring you high-quality, reliable audio that will last for years to come.

SPECS & DOWNLOADS

Adastra A4 Mixer Amplifier Specifications

• Power supply: 230Vac, 50Hz (IEC)
• Power consumption max.: 360W
• Fuse: F5A, 250V
• Output power rms @ 4 Ohms: 4 x 200W
• Output power rms @ 8 Ohms: 4 x 100W
• Amplifier: construction: Class D
• Frequency response: 20Hz – 20kHz ±0.5dB
• Microphone inputs: 2 x 6.3mm jack (mono)
• Line inputs: Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
• Input sensitivity : line: 0.775Vrms
• Auxiliary input: 3.5mm stereo jack
• Input sensitivity : aux: 0.480Vrms
• Input impedance: 20k Ohms (balanced), 10k Ohms (unbalanced)
• Audio source: USB/SD mp3 playback, FM tuner, BT receiver
• Input controls: Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
• Line output: 2 x RCA
• Speaker outputs: 4mm binding posts (4 channels)
• Antenna connection: F type (FM tuner)
• Output controls: 2 x source select, 2 xBass, 2 xTreble, Ch1, Ch2, Ch3, Ch4
• Dynamic range: 92dB
• THD: +N <0.1%
• Protection: Thermal, over-current, over-voltage, short-circuit
• Dimensions: 482 x 240 x 88mm
• Weight: 5.98kg

Stereo Wall-Mount Speakers

• Dispersion angle: 120°
• IP rating: IP44
• Colour: White/Black
• LF driver: 135mmØ (5.25″)
• HF driver: 13mmØ (0.5″)
• Power handling : max: 100W
• Power handling : rms: 50W
• Sensitivity: 89dB
• Frequency response: 80Hz – 20kHz
• Tappings: 8 Ohms
• Dimensions: 255 x 163 x 160mm
• Weight: 1.98kg

AudioKraft Crystaline Series

• Length: Per Metre, 30m, 50, 100m
• CSA: 1.32mm²
• Strands: 2 x (42 x 0.2mmØ)
• Current: 15.0A max.
• Sheath: Black
• Polarity: White
